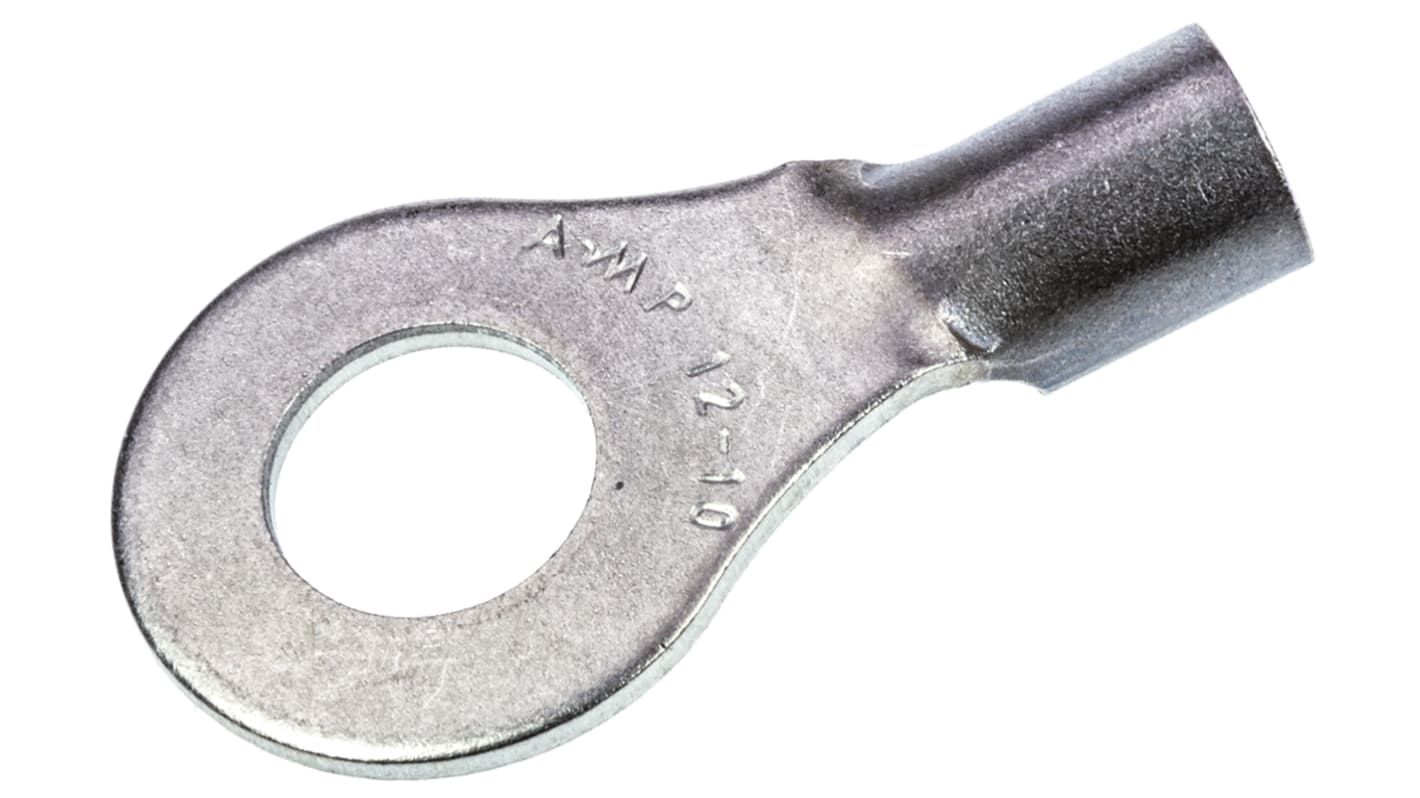

TE Connectivity, STRATO-THERM Uninsulated Ring Terminal, M6 Stud Size 12 AWG 10 AWG Wire Size
- RS Stock No.:
- 135-4647
- Mfr. Part No.:
- 323683
- Brand:
- TE Connectivity
Subtotal (1 box of 500 units)*
£1,351.00
(exc. VAT)
£1,621.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9,500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 500 + | £2.702 | £1,351.00 |
*price indicative
- RS Stock No.:
- 135-4647
- Mfr. Part No.:
- 323683
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | STRATO-THERM | |
| Product Type | Ring Terminal | |
| Insulation | Uninsulated | |
| Inner Ring Diameter | 6.35mm | |
| Outer Ring Diameter | 13.49mm | |
| Minimum Wire Size AWG | 12 AWG | |
| Maximum Wire Size AWG | 10 AWG | |
| Overall Length | 25.5mm | |
| Stud Size | M6 | |
| Contact Plating | Nickel | |
| Contact Material | Nickel | |
| Thickness | 0.79mm | |
| Standards/Approvals | CSA LR7189, RoHS, UL E13288 | |
| Maximum Operating Temperature | 649°C | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series STRATO-THERM | ||
Product Type Ring Terminal | ||
Insulation Uninsulated | ||
Inner Ring Diameter 6.35mm | ||
Outer Ring Diameter 13.49mm | ||
Minimum Wire Size AWG 12 AWG | ||
Maximum Wire Size AWG 10 AWG | ||
Overall Length 25.5mm | ||
Stud Size M6 | ||
Contact Plating Nickel | ||
Contact Material Nickel | ||
Thickness 0.79mm | ||
Standards/Approvals CSA LR7189, RoHS, UL E13288 | ||
Maximum Operating Temperature 649°C | ||
- COO (Country of Origin):
- US
TE Connectivity SOLISTRAND STRATO-THERM High Temperature Ring Tongue Crimp Terminals
SOLISTRAND STRATO-THERM high temperature ring tongue crimp Terminals for use where operating temperatures prevent standard insulated crimps being used. These STRATO-THERM high temperature ring tongue crimp Terminals are MADE from solid nickel and designed to terminate solid and/or stranded conductors. When the Terminal is crimped the wire inside is forced into the serrations or dimples of the barrel to maximise the electrical contact area after crimping. The maximum operating temperature for these STRATO-THERM high temperature ring tongue crimp Terminals is 649°C (1200°F).
TE Connectivity STRATO-THERM Terminals and Splices
Note
For suitable hand crimp tool see stock number 162-3159
