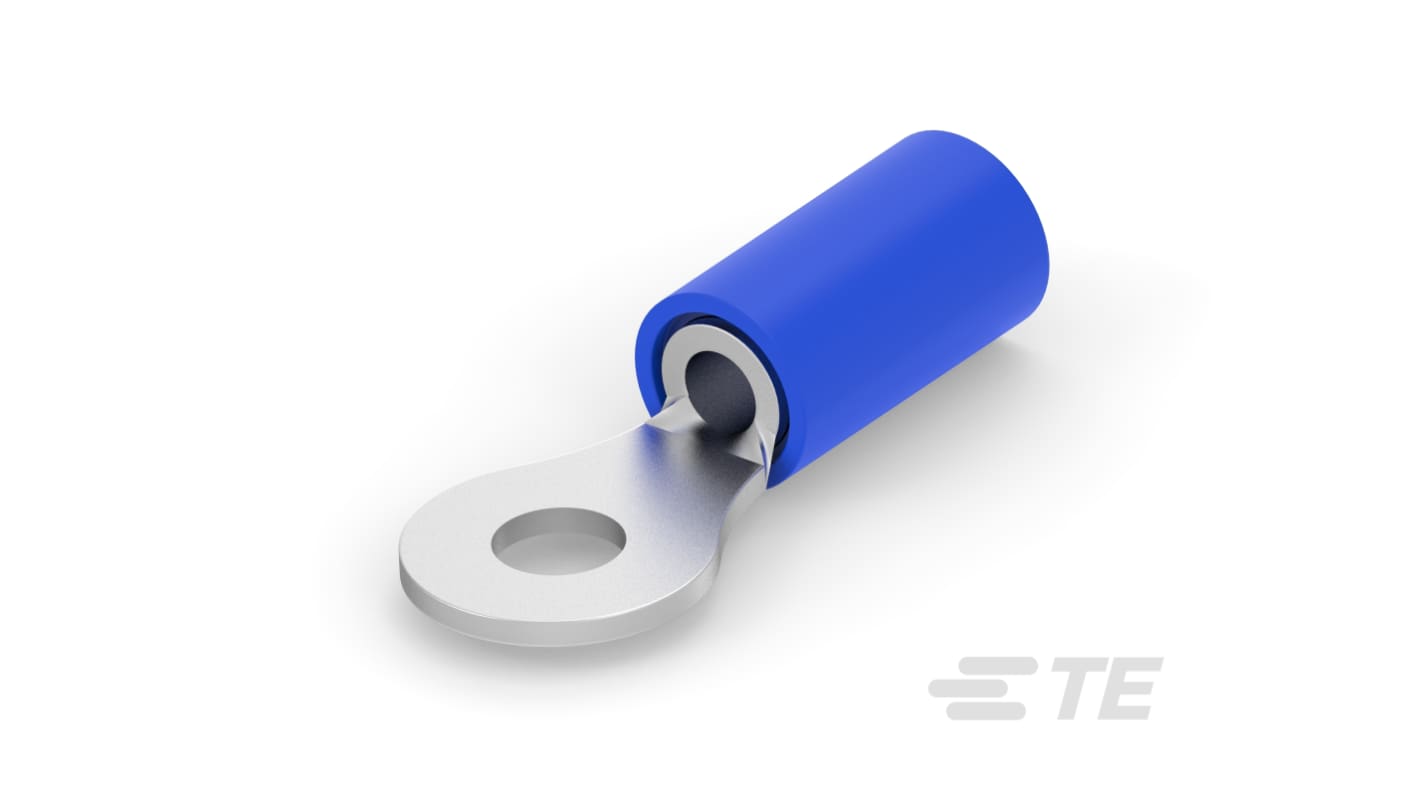

TE Connectivity, PIDG Insulated Ring Terminal, M3.5 Stud Size 16 AWG 14 AWG Wire Size, Blue

View all Ring Terminals

Subtotal (1 pack of 800 units)*

£180.60

(exc. VAT)

£216.72

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 05 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£180.60£0.226

*price indicative

RS Stock No.:
479-927
Distrelec Article No.:
304-47-392
Mfr. Part No.:
36158
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Series

PIDG

Product Type

Ring Terminal

Insulation

Insulated

Inner Ring Diameter

3.68mm

Minimum Wire Size AWG

16 AWG

Maximum Wire Size AWG

14 AWG

Overall Length

21.82mm

Stud Size

M3.5

Colour

Blue

Contact Material

Copper

Contact Plating

Tin

Thickness

0.79mm

Standards/Approvals

2016 No Restricted Materials Above Threshold, China RoHS 2 MIIT Order No 32, EU ELV 2000/53/EC, EU REACH (EC) No. 1907/2006, EU RoHS 2011/65/EU

COO (Country of Origin):
US
The TE Connectivity Closed ring tongue terminal is designed for efficient wire connections, supporting wire sizes from 16 to 14 AWG. With a robust construction tailored for durability, this terminal ensures optimal performance in demanding applications. Its closed barrel design facilitates excellent conductivity, while the straight orientation simplifies installation in tight spaces. This product not only adheres to strict industry standards but also incorporates a tin plating to enhance resistance to corrosion. These characteristics make it an ideal choice for use in various electrical and industrial settings, ensuring reliability and safety in every connection.

Designed for reliable and efficient wire connections

Closed barrel allows for superior conductivity and performance

Tin plating ensures corrosion resistance for long-lasting durability

Straight terminal orientation simplifies wiring in constrained areas

Supports a range of wire sizes for versatile application

One-hole configuration provides straightforward installation

Lightweight design enhances ease of handling and assembly

Compliant with EU regulations for environmental safety
