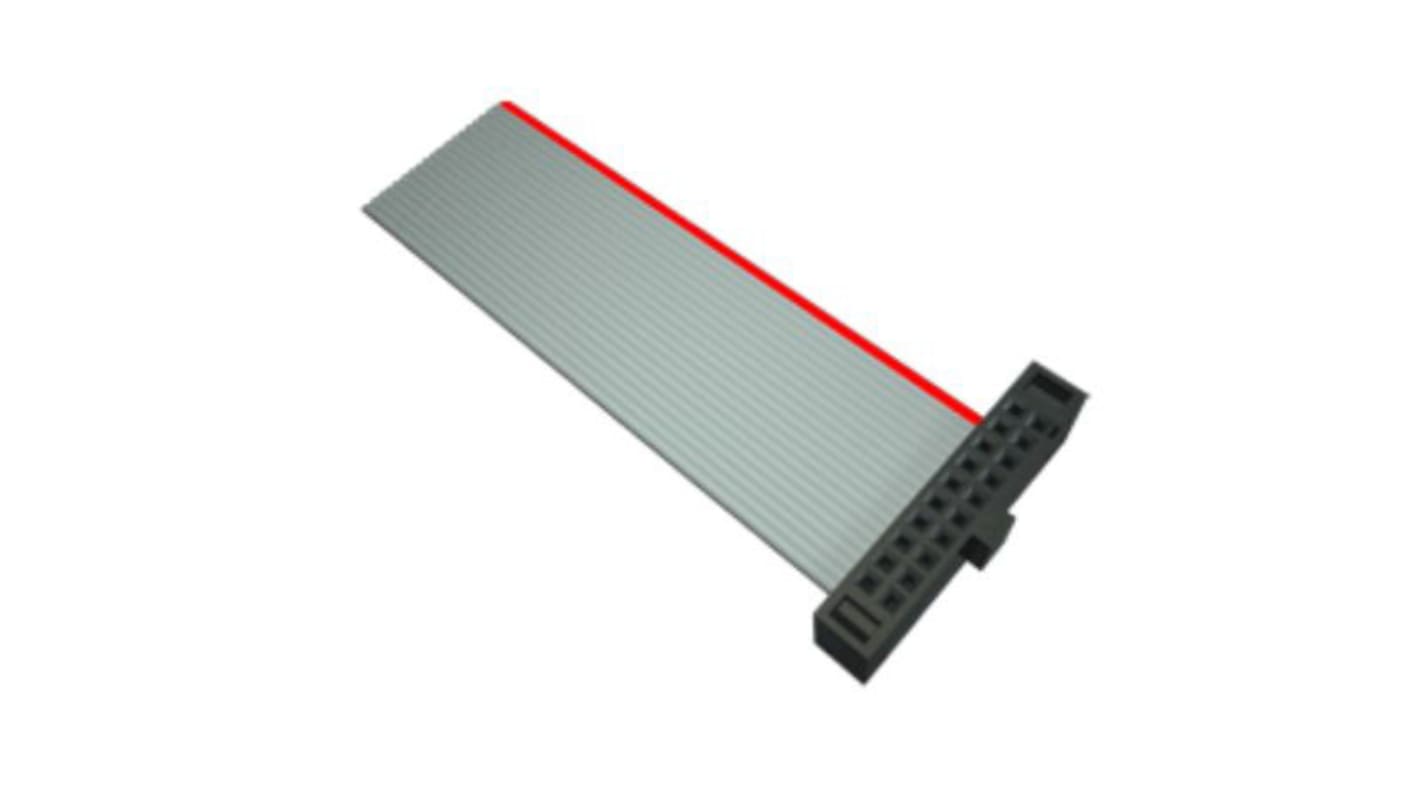

Samtec FFSD Series Ribbon Cable, 20-Way, 1.27mm Pitch, 609.6mm Length, Tiger Eye IDC to Tiger Eye IDC
- RS Stock No.:
- 208-1346
- Mfr. Part No.:
- FFSD-10-D-24.00-01-N
- Brand:
- Samtec
3 In stock - FREE next working day delivery available
Price Each
£14.67
(exc. VAT)
£17.60
(inc. VAT)
Units | Per unit |
|---|---|
| 1 - 9 | £14.67 |
| 10 - 49 | £13.63 |
| 50 - 99 | £12.44 |
| 100 - 249 | £11.44 |
| 250 + | £10.60 |
- RS Stock No.:
- 208-1346
- Mfr. Part No.:
- FFSD-10-D-24.00-01-N
- Brand:
- Samtec
Technical Reference
Legislation and Compliance
Product Details
The Samtec FFSD series Tiger Eye IDC flat cable. It has high-reliability Tiger Eye contact also it has polarization key and optional strain relief. A dual row 1.27 mm pitch connector has 20 position.
Operating temperature range -40 °C to +105 °C
Current rating 2.3 A per pin
Current rating 2.3 A per pin
Specifications
Attribute | Value |
|---|---|
| Connector 1 | Tiger Eye IDC |
| Connector 2 | Tiger Eye IDC |
| Pitch | 1.27mm |
| Connector 1 Gender | Female |
| Terminated/Unterminated | Terminated |
| Connector 2 Gender | Female |
| Number of Ways | 20 |
| American Wire Gauge | 30 AWG |
| Series | FFSD |
| Length | 609.6mm |
| Operating Temperature Range | -40 → +105 °C |
| Current Rating | 2.3 A |
| Standards Met | RoHS Compliant |
