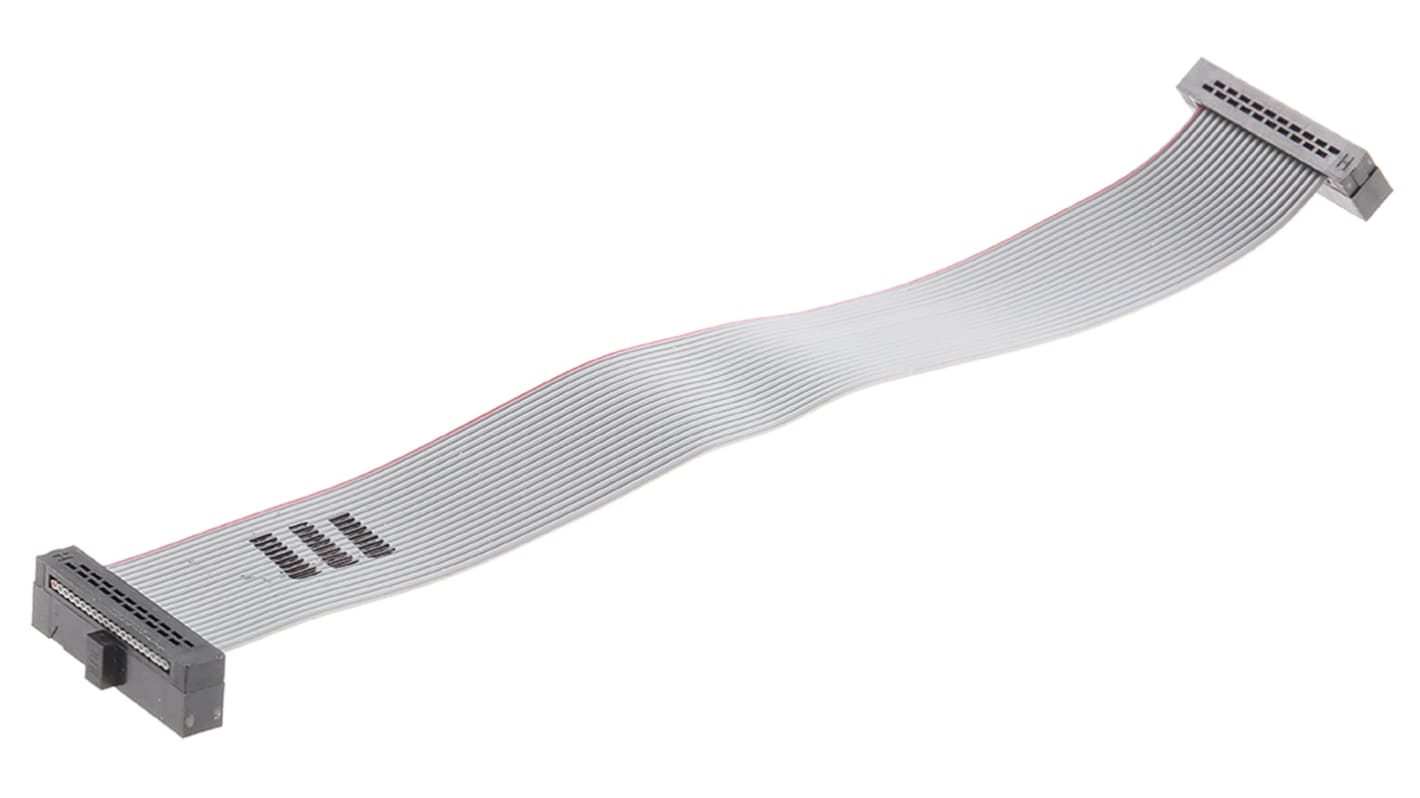

Samtec FFSD Series Flat Ribbon Cable, 20-Way, 1.27mm Pitch, 4in Length, Tiger Eye IDC to Tiger Eye IDC

View all Ribbon Cable
Bulk discount available

Subtotal (1 unit)*

£15.80

(exc. VAT)

£18.96

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 36 unit(s) ready to ship
  • Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 24£15.80
25 - 74£14.23
75 - 199£13.42
200 - 399£11.82
400 +£11.05

*price indicative

RS Stock No.:
481-4752
Mfr. Part No.:
FFSD-10-D-04.00-01-N
Brand:
Samtec
Find similar products by selecting one or more attributes.
Select all

Brand

Samtec

Ribbon Cable Type

Flat

Connector 1

Tiger Eye IDC

Connector 2

Tiger Eye IDC

Pitch

1.27mm

Terminated/Unterminated

Terminated

Connector 1 Gender

Female

Connector 2 Gender

Female

Number of Ways

20

Screened/Unscreened

Unscreened

American Wire Gauge

30 AWG

Series

FFSD

Length

4in

Conductor Strand Type

Stranded

Minimum Operating Temperature

-40°C

Sheath Colour

Grey

Maximum Operating Temperature

+105°C

Current Rating

0.5 A

Standards Met

RoHS Compliant, UL

Operating Temperature Range

-40 → +105 °C

Samtec Ribbon Cable, 0.5A Current Rating, 2.64 to 3.17mm Insertion Depth - FFSD Series - FFSD-10-D-04.00-01-N


Looking to link internal components in your application? Grab this ribbon cable from Samtec for hassle-free connection of peripherals inside a system. Its Tiger Eye contacts form secure interfaces that won't come loose, even in heavy-duty installations. The unit keeps its cool in harsh industrial conditions, thanks to a wide operating temperature range between -40°C and +105°C. Highly conductive beryllium copper contacts get signals from one point to the next without skipping a beat.

Features & Benefits


• Pre-terminated connectors save time and effort
• Pitch of 1.27mm for compatibility with standard components
• Flexible design for ease of installation in tight spaces
• Polarised contacts prevent incorrect mating to reduce the risk of damage

Applications


• Computer assemblies
• Industrial control panels
• Robotics
• Medical imaging equipment

How many circuits does this ribbon cable accommodate?


It's a 20-way unit, so it routes multiple circuits to help you simplify complex layouts.

Can I run connections from one component to another by using multiple ribbon cables?


Yes, this product lets you create daisy-chain links to connect more than one component for versatility.
