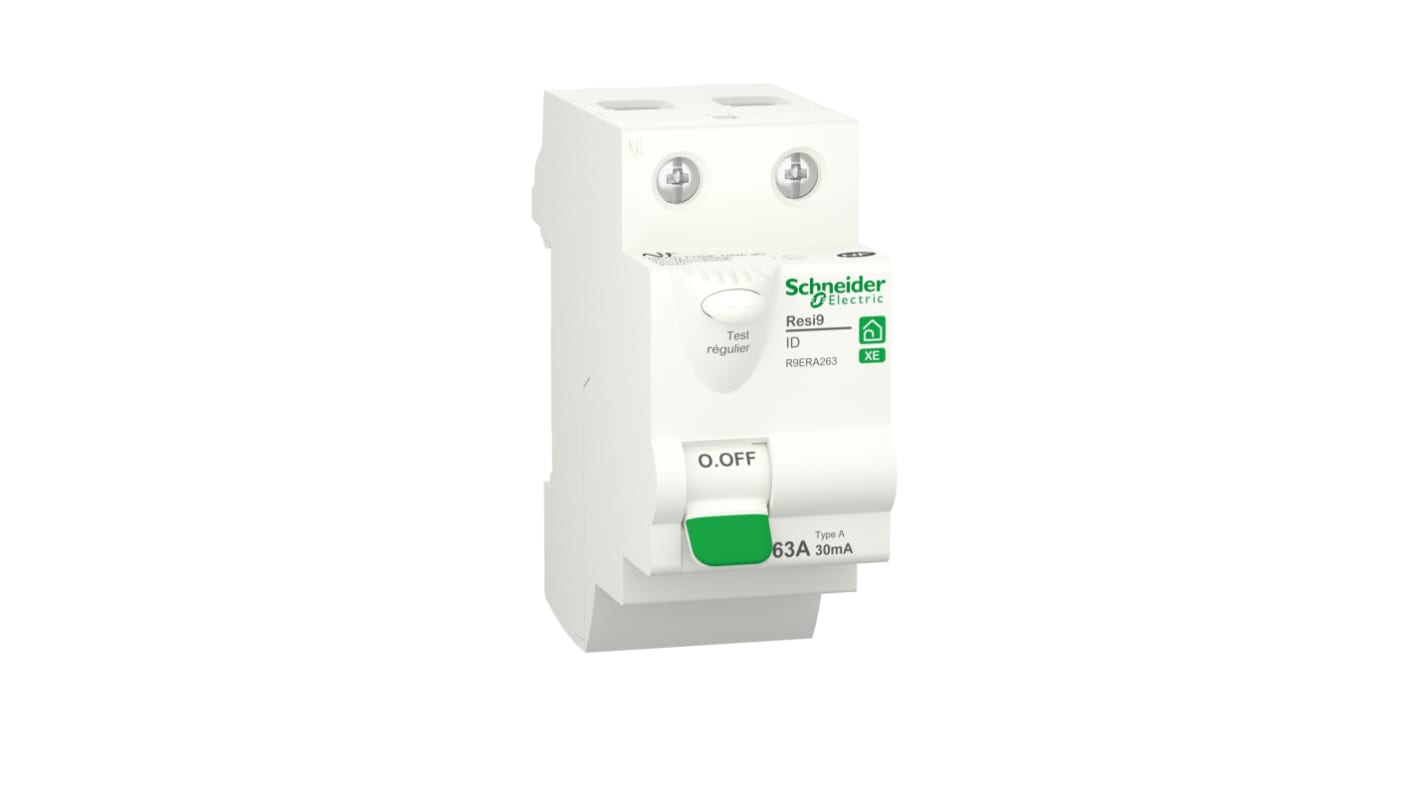

Schneider Electric R9E RCCB, 63A, 2 Pole, 30mA, Type A, 230V
- RS Stock No.:
- 276-8941
- Mfr. Part No.:
- R9ERA263
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£74.07
(exc. VAT)
£88.88
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship from another location
- Plus 7 unit(s) shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £74.07 |
*price indicative
- RS Stock No.:
- 276-8941
- Mfr. Part No.:
- R9ERA263
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Circuit Breaker Type | RCCB | |
| Current Rating | 63A | |
| Number of Poles | 2 | |
| Range | Resi9 | |
| Trip Sensitivity | 30mA | |
| Tripping Characteristics | Type A | |
| Voltage Rating | 230V | |
| Series | R9E | |
| Standards Met | CE | |
| Breaking Capacity at Maximum Voltage Rating | 0.5 kA | |
| Rated AC Voltage | 230V | |
| Overall Width | 36mm | |
| Overall Depth | 87mm | |
| Overall Length | 83mm | |
| Terminal Contact Type | Tunnel Terminal | |
| Reset Actuator Type | Rocker | |
| Earth Leakage Protection Type | Type A | |
| Overall Dimensions | 83 x 36 x 87mm | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Circuit Breaker Type RCCB | ||
Current Rating 63A | ||
Number of Poles 2 | ||
Range Resi9 | ||
Trip Sensitivity 30mA | ||
Tripping Characteristics Type A | ||
Voltage Rating 230V | ||
Series R9E | ||
Standards Met CE | ||
Breaking Capacity at Maximum Voltage Rating 0.5 kA | ||
Rated AC Voltage 230V | ||
Overall Width 36mm | ||
Overall Depth 87mm | ||
Overall Length 83mm | ||
Terminal Contact Type Tunnel Terminal | ||
Reset Actuator Type Rocker | ||
Earth Leakage Protection Type Type A | ||
Overall Dimensions 83 x 36 x 87mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- ES
Schneider Electric RCCB, 63A Current Rating, 230V Voltage Rating - R9ERA263
This residual current circuit breaker (RCCB) is intended for residential applications, offering essential protection against earth leakage. Measuring 83x36x87mm, it is designed for compatibility with standard DIN rail installations. The units sturdy construction complies with CE standards, making it a vital component in residential electrical systems to protect against faults.
Features & Benefits
• Protects directly against earth leakage hazards
• Type A RCCB provides protection for AC circuits
• Features instantaneous response to earth leakage faults
• 63A current rating accommodates high demand applications
• Tunnel terminals permit conductors up to 35mm²
• Rocker reset mechanism allows for easy operation
• Type A RCCB provides protection for AC circuits
• Features instantaneous response to earth leakage faults
• 63A current rating accommodates high demand applications
• Tunnel terminals permit conductors up to 35mm²
• Rocker reset mechanism allows for easy operation
Applications
• Suitable for use in residential electrical installations
• Enhances safety in circuits with variable loads
• Ideal for home automation systems requiring extra protection
• Compliant for areas adhering to electrical standards
• Enhances safety in circuits with variable loads
• Ideal for home automation systems requiring extra protection
• Compliant for areas adhering to electrical standards
Can it effectively protect against electrocution?
Yes, it is designed to safeguard against earth leakage.
Will it fit in standard electrical distribution boards?
It is compatible with standard DIN rail installations.
Can it be reset easily after a trip?
The rocker reset mechanism enables straightforward resetting.
