ABB FH200 RCCB, 63A, 2 Pole, 30mA, Type AC, 230V
- RS Stock No.:
- 186-3457
- Mfr. Part No.:
- 2CSF202002R1630
- Brand:
- ABB
Subtotal (1 unit)*
£69.59
(exc. VAT)
£83.51
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship from another location
- Plus 999,999,989 unit(s) shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £69.59 |
*price indicative
- RS Stock No.:
- 186-3457
- Mfr. Part No.:
- 2CSF202002R1630
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ABB | |
Circuit Breaker Type | RCCB | |
Current Rating | 63A | |
Number of Poles | 2 | |
Trip Sensitivity | 30mA | |
Tripping Characteristics | Type AC | |
Voltage Rating | 230V | |
Series | FH200 | |
Standards Met | CE | |
Break Time | Instantaneous | |
Overall Length | 69mm | |
Overall Width | 35mm | |
Overall Depth | 69mm | |
Rated AC Voltage | 230V | |
Mounting Style | DIN Rail Mount | |
Application | Domestic | |
Reset Actuator Type | Toggle Switch | |
Breaking Capacity at Maximum Voltage Rating | 1 kA | |
Overall Dimensions | 69 x 35 x 85mm | |
Select all | ||
---|---|---|
Brand ABB | ||
Circuit Breaker Type RCCB | ||
Current Rating 63A | ||
Number of Poles 2 | ||
Trip Sensitivity 30mA | ||
Tripping Characteristics Type AC | ||
Voltage Rating 230V | ||
Series FH200 | ||
Standards Met CE | ||
Break Time Instantaneous | ||
Overall Length 69mm | ||
Overall Width 35mm | ||
Overall Depth 69mm | ||
Rated AC Voltage 230V | ||
Mounting Style DIN Rail Mount | ||
Application Domestic | ||
Reset Actuator Type Toggle Switch | ||
Breaking Capacity at Maximum Voltage Rating 1 kA | ||
Overall Dimensions 69 x 35 x 85mm | ||

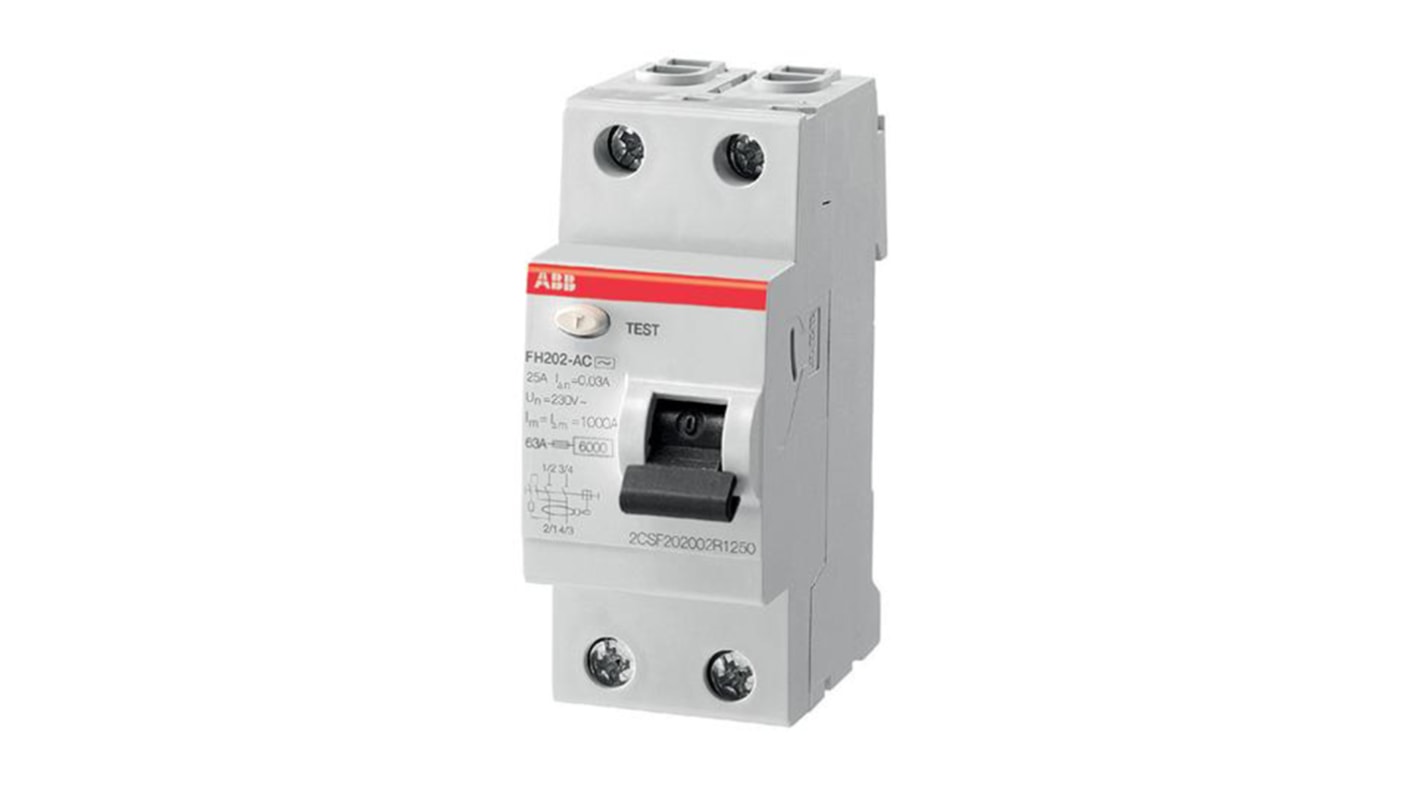

ABB FH200 Series RCCB, 63A Current Rating, 30mA Trip Sensitivity - 2CSF202002R1630
This RCCB is designed to provide robust protection for individuals and installations against fault currents to earth. With a current rating of 63A and a trip sensitivity of 30 mA, this 2-pole device is highly effective in domestic applications. Measuring 69 x 35 x 85mm, it is easily mounted on a DIN rail for convenient installation.
Features & Benefits
• Instantaneous tripping feature enhances safety during faults
• Type AC design suitable for standard residential environments
• CE certified, ensuring compliance with safety standards
• Supports a voltage rating of 230V for versatile use
• Compact dimensions enable efficient use of installation space
• Low power loss of 3.2W contributes to energy efficiency
• Type AC design suitable for standard residential environments
• CE certified, ensuring compliance with safety standards
• Supports a voltage rating of 230V for versatile use
• Compact dimensions enable efficient use of installation space
• Low power loss of 3.2W contributes to energy efficiency
Applications
• Utilised in homes to prevent electrical shock hazards
• Essential for protecting electrical circuits in residential settings
• Ideal for installations requiring dependable earth fault protection
• Essential for protecting electrical circuits in residential settings
• Ideal for installations requiring dependable earth fault protection
What is the significance of the 30 mA trip sensitivity in this device?
The 30 mA trip sensitivity is designed to detect small leakage currents, providing essential protection against electric shocks, especially in domestic settings where safety is paramount.
How does the DIN rail mounting benefit installation?
The DIN rail mounting allows for quick and secure installation in electrical panels, ensuring a neat arrangement and easy access for maintenance or upgrades.
What is the operational temperature range for this circuit breaker?
This device operates effectively within an ambient temperature range of -5°C to +40°C, making it suitable for various conditions commonly found in domestic environments.
What compliance standards does this RCCB meet?
It meets the IEC/EN 61008 standards, ensuring that it adheres to rigorous safety and performance criteria for residual current devices.
