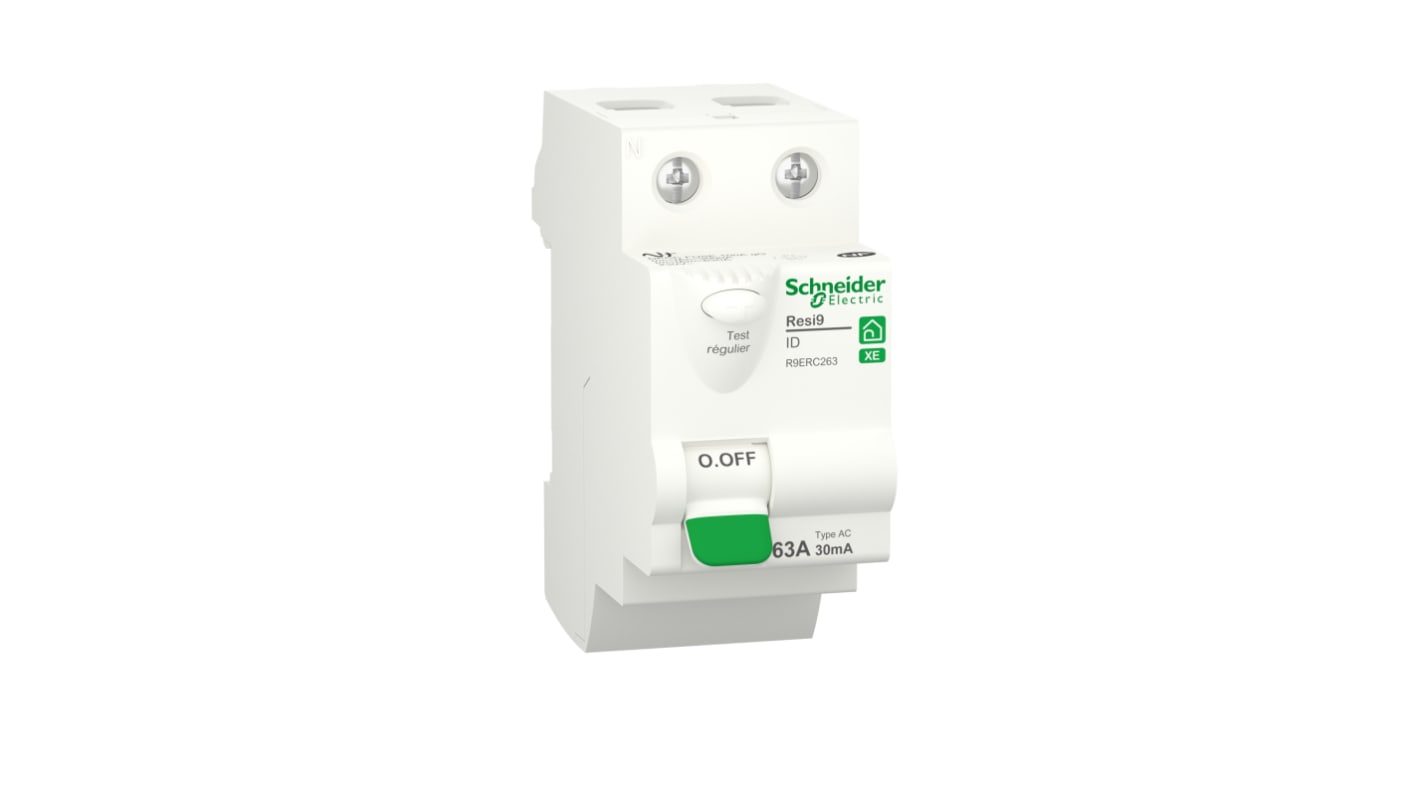

Schneider Electric R9E RCCB, 63A, 2 Pole, 30mA, Type AC, 230V
- RS Stock No.:
- 276-8942
- Mfr. Part No.:
- R9ERC263
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£61.72
(exc. VAT)
£74.06
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 3 unit(s) shipping from 27 October 2025
- Plus 6 unit(s) shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £61.72 |
*price indicative
- RS Stock No.:
- 276-8942
- Mfr. Part No.:
- R9ERC263
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Circuit Breaker Type | RCCB | |
| Current Rating | 63A | |
| Number of Poles | 2 | |
| Range | Resi9 | |
| Trip Sensitivity | 30mA | |
| Tripping Characteristics | Type AC | |
| Voltage Rating | 230V | |
| Series | R9E | |
| Standards Met | CE | |
| Rated AC Voltage | 230V | |
| Mounting Style | Clip-On | |
| Overall Length | 83mm | |
| Terminal Contact Type | Tunnel Terminal | |
| Reset Actuator Type | Rocker | |
| Overall Dimensions | 87 x 36 x 83mm | |
| Earth Leakage Protection Type | Type AC | |
| Breaking Capacity at Maximum Voltage Rating | 0.5 kA | |
| Overall Depth | 87mm | |
| Overall Width | 36mm | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Circuit Breaker Type RCCB | ||
Current Rating 63A | ||
Number of Poles 2 | ||
Range Resi9 | ||
Trip Sensitivity 30mA | ||
Tripping Characteristics Type AC | ||
Voltage Rating 230V | ||
Series R9E | ||
Standards Met CE | ||
Rated AC Voltage 230V | ||
Mounting Style Clip-On | ||
Overall Length 83mm | ||
Terminal Contact Type Tunnel Terminal | ||
Reset Actuator Type Rocker | ||
Overall Dimensions 87 x 36 x 83mm | ||
Earth Leakage Protection Type Type AC | ||
Breaking Capacity at Maximum Voltage Rating 0.5 kA | ||
Overall Depth 87mm | ||
Overall Width 36mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- ES
Schneider Electric RCCB, 63A Current Rating, 230V Voltage Rating - R9ERC263
This residual current circuit breaker (RCCB) is designed to provide effective earth leakage protection in residential electrical installations. Its compact design measures 87x36x83mm and allows for clip-on mounting onto a DIN rail. It operates at a voltage rating of 230V, making it suitable for standard household electrical systems.
Features & Benefits
• Provides instant earth leakage protection for enhanced safety
• Rated for 63A, accommodating substantial electrical loads
• 2 poles facilitate efficient operation in various circuits
• Type AC design suitable for alternating current networks
• Features a breaking capacity of 500A for improved fault response
• Simple installation with clip-on mounting to DIN rails
• Rated for 63A, accommodating substantial electrical loads
• 2 poles facilitate efficient operation in various circuits
• Type AC design suitable for alternating current networks
• Features a breaking capacity of 500A for improved fault response
• Simple installation with clip-on mounting to DIN rails
Applications
• Used to ensure residential electrical safety
• Protects electrical circuits from earth faults
• Ideal for installations requiring Type AC protection
• Applicable for both new and retrofit projects in homes
• Protects electrical circuits from earth faults
• Ideal for installations requiring Type AC protection
• Applicable for both new and retrofit projects in homes
Can it handle fault currents effectively?
Yes, it has a breaking capacity of 500A for swift response.
Will it indicate the circuit status?
Yes, it features a contact position indicator for visibility.
Is it suitable for high humidity environments?
Yes, it operates reliably at 95% relative humidity.
Can this device be used in tropical climates?
Yes, it adheres to tropicalisation standards for durability.
