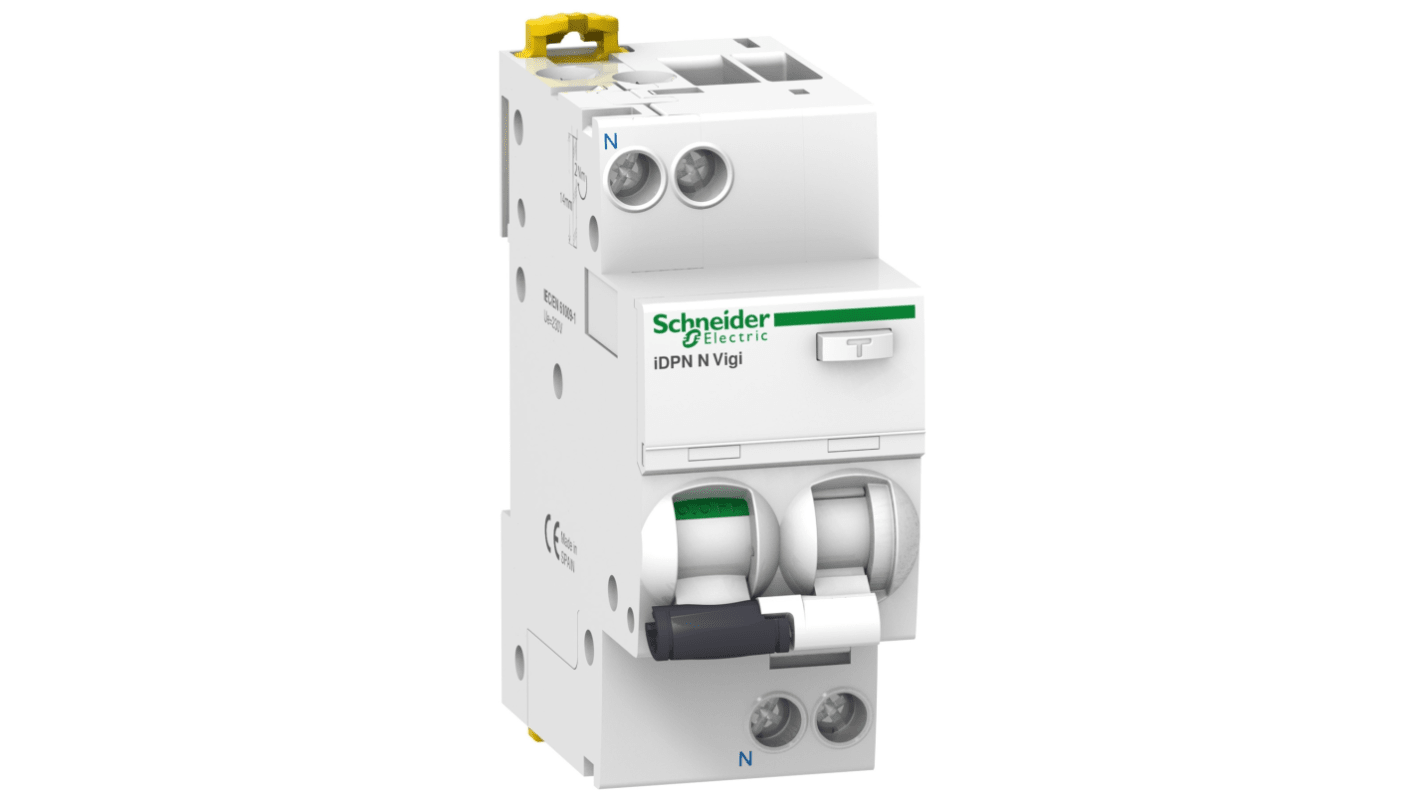

Schneider Electric Residual Current Circuit Breaker with Overload Protection, 16 A Current Rating, 1-Pole, 30 mA Trip

View all RCBOs

Subtotal (1 unit)*

£96.66

(exc. VAT)

£115.99

(inc. VAT)

Add to Basket
Select or type quantity
Orders below £50.00 (exc. VAT) cost £6.95.
In Stock
  • 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£96.66

*price indicative

RS Stock No.:
654-654
Mfr. Part No.:
A9D56616
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Current Rating

16 A

Product Type

Residual Current Circuit Breaker with Overload Protection

Series

A9d

Number of Poles

1

Range

Acti9

Trip Sensitivity

30mA

Tripping Characteristics

Type B

Terminal Type

Screw Clamp

Width

18 mm

Depth

72mm

Height

110mm

Breaking Capacity

10000A

Standards/Approvals

IEC 61009-2-2, IEC 61009-1, BS EN 61009-1

Application

Distribution

COO (Country of Origin):
ES
The Schneider Electric Residual current circuit breaker with overcurrent protection (RCD/MCB) Acti 9 iDPN N Vigi, 6kA (IEC/EN 61009-2-1). 1-pole+N, rated current 16A, characteristic B, earth fault sensitivity 30mA, earth fault protection class Type A, operating voltage (Ue) 230V AC, insulation voltage (Ui) 400V AC. Ensures comprehensive protection of final circuits against overcurrent's and fault currents. Switches and disconnects circuits. Snap action for low-wear switching of the contacts. Mechanically isolated red indicator in case of fault tripping of the miniature circuit breaker or tripping due to a fault current. Clear switch position indication via green marking on the device's switch knob.

Number of protected poles is 1

Neutral position is Left

[In] Rated current is 16 A
