Schneider Electric Residual Current Circuit Breaker with Overload Protection, 16A Current Rating, 1-Pole, 30 mA Trip
- RS Stock No.:
- 238-3272
- Mfr. Part No.:
- A9DB2616
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£337.48
(exc. VAT)
£404.98
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 1 unit(s) shipping from 06 July 2026
- Plus 1 unit(s) shipping from 03 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £337.48 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 238-3272
- Mfr. Part No.:
- A9DB2616
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Current Rating | 16A | |
| Product Type | Residual Current Circuit Breaker with Overload Protection | |
| Number of Poles | 1 | |
| Series | Acti9 iDD40T | |
| Range | Acti9 | |
| Trip Sensitivity | 30mA | |
| Tripping Characteristics | Type C | |
| Mount Type | Clip-on | |
| Rated AC Voltage | 230V ac | |
| Terminal Type | Tunnel | |
| Earth Leakage Protection Type | A-SI | |
| Height | 85mm | |
| Width | 36mm | |
| Depth | 73mm | |
| Better World Product | Yes | |
| Reset Actuator Type | Toggle Switch | |
| Tripping Mechanism | Thermal Magnetic | |
| Standards/Approvals | RoHS, EN/IEC 60947-2 | |
| Application | Residential, Overcurrent Protection, Distribution | |
| Breaking Capacity | 6kA | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Current Rating 16A | ||
Product Type Residual Current Circuit Breaker with Overload Protection | ||
Number of Poles 1 | ||
Series Acti9 iDD40T | ||
Range Acti9 | ||
Trip Sensitivity 30mA | ||
Tripping Characteristics Type C | ||
Mount Type Clip-on | ||
Rated AC Voltage 230V ac | ||
Terminal Type Tunnel | ||
Earth Leakage Protection Type A-SI | ||
Height 85mm | ||
Width 36mm | ||
Depth 73mm | ||
Better World Product Yes | ||
Reset Actuator Type Toggle Switch | ||
Tripping Mechanism Thermal Magnetic | ||
Standards/Approvals RoHS, EN/IEC 60947-2 | ||
Application Residential, Overcurrent Protection, Distribution | ||
Breaking Capacity 6kA | ||
- COO (Country of Origin):
- ES

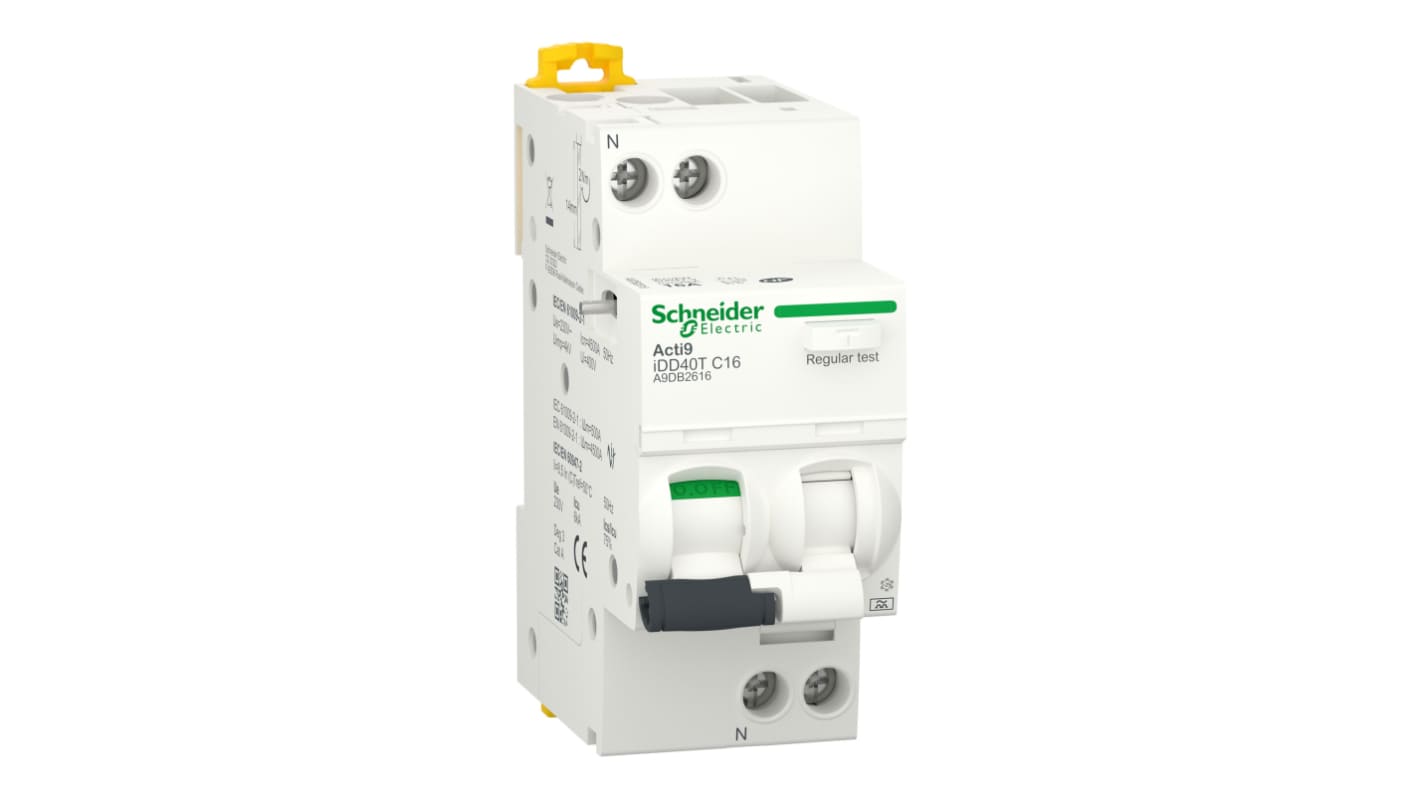

Schneider Electric RCBO, 16A Current Rating, 230V Rated AC Voltage - A9DB2616
This RCBO is essential in electrical distribution systems, providing both residual current protection and circuit overload prevention. With a current rating of 16A, it offers efficient circuit protection for single-phase and neutral connections within a compact dimension of 85x36x73mm. The unit is designed for straightforward installation onto a DIN rail with a modern clip-on mounting style.
Features & Benefits
• Combines earth leakage and overcurrent protection
• Type C tripping characteristic for handling higher surge currents
• 4500A breaking capacity protects against short circuits
• Instantaneous earth-leakage protection for prompt response
• Thermal-magnetic technology ensures consistent operation
Applications
• Ideal for protecting circuits in industrial settings
• Appropriate for installations with heightened surge handling requirements
• Works with various distribution blocks and busbars
Can it handle short circuit conditions effectively?
Yes, it has a breaking capacity of 4500A.
Is it suitable for outdoor applications?
No, it has an IP20 protection rating.
Will it provide immediate disconnection upon fault detection?
Yes, it is equipped with instantaneous earth-leakage protection.
Can it be used in environments with high humidity?
It operates effectively up to 95% relative humidity at 55°C.
