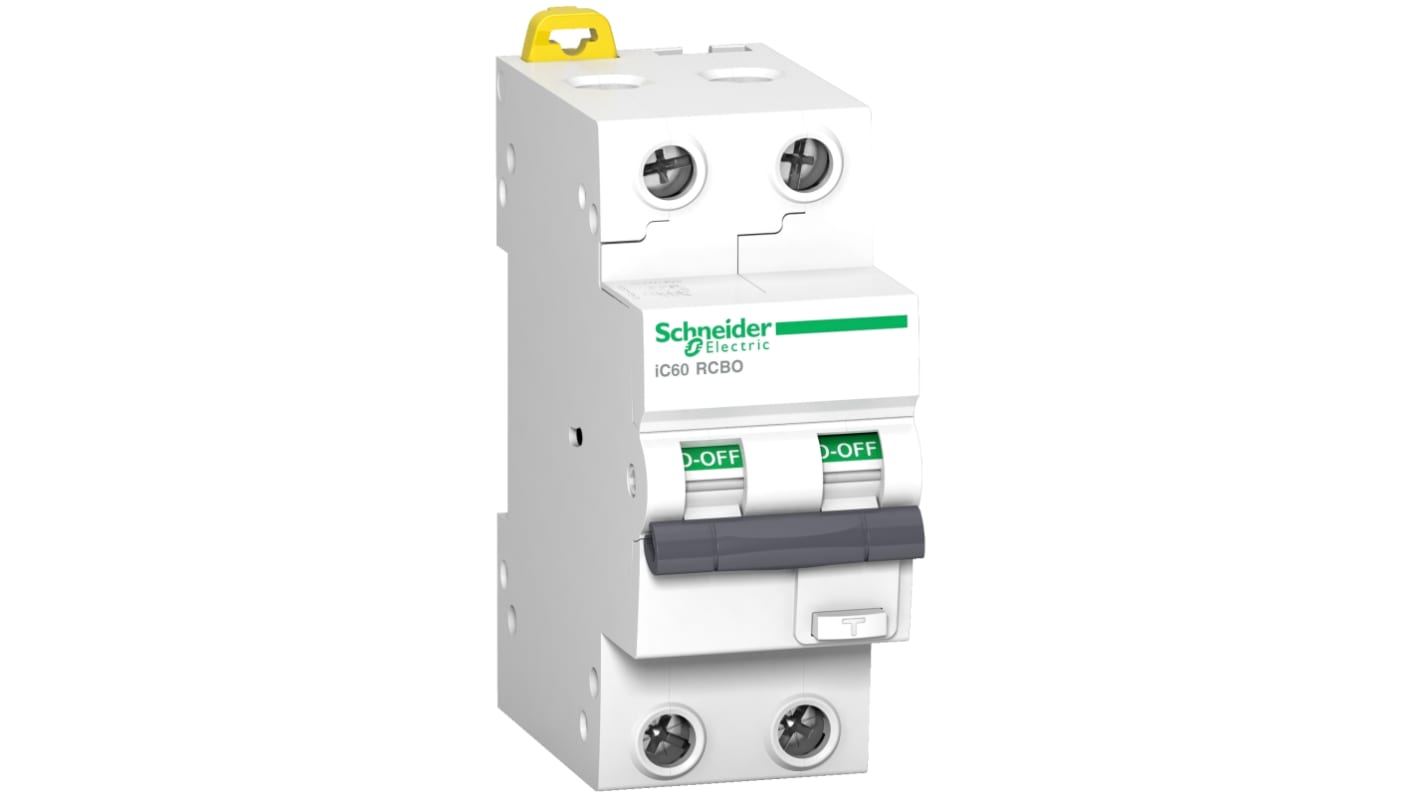

Schneider Electric Residual Current Circuit Breaker with Overload Protection, 16A Current Rating, 2-Pole, 30 mA Trip
- RS Stock No.:
- 276-8718
- Mfr. Part No.:
- A9D07216
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£472.92
(exc. VAT)
£567.50
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 9 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £472.92 |
*price indicative
- RS Stock No.:
- 276-8718
- Mfr. Part No.:
- A9D07216
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Current Rating | 16A | |
| Product Type | Residual Current Circuit Breaker with Overload Protection | |
| Range | Acti9 | |
| Series | Acti9 iC60 | |
| Number of Poles | 2 | |
| Trip Sensitivity | 30mA | |
| Tripping Characteristics | Type AC | |
| Mount Type | Clip-on | |
| Rated AC Voltage | 240V ac | |
| Terminal Type | Tunnel | |
| Earth Leakage Protection Type | AC | |
| Width | 36mm | |
| Depth | 78mm | |
| Height | 86mm | |
| Application | Distribution | |
| Standards/Approvals | REACH, EU RoHS, EN/IEC 61009-2-1, EN/IEC 60947-2, CHINA RoHS | |
| Breaking Capacity | 10000A | |
| Tripping Mechanism | Thermal Magnetic | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Current Rating 16A | ||
Product Type Residual Current Circuit Breaker with Overload Protection | ||
Range Acti9 | ||
Series Acti9 iC60 | ||
Number of Poles 2 | ||
Trip Sensitivity 30mA | ||
Tripping Characteristics Type AC | ||
Mount Type Clip-on | ||
Rated AC Voltage 240V ac | ||
Terminal Type Tunnel | ||
Earth Leakage Protection Type AC | ||
Width 36mm | ||
Depth 78mm | ||
Height 86mm | ||
Application Distribution | ||
Standards/Approvals REACH, EU RoHS, EN/IEC 61009-2-1, EN/IEC 60947-2, CHINA RoHS | ||
Breaking Capacity 10000A | ||
Tripping Mechanism Thermal Magnetic | ||
RoHS Status: Exempt
- COO (Country of Origin):
- PT
The Schneider Electric Residual current breaker with overcurrent protection is for distribution device applications. It has thermal magnetic trip unit technology.
Earth leakage protection
Electromagnetic compatible
