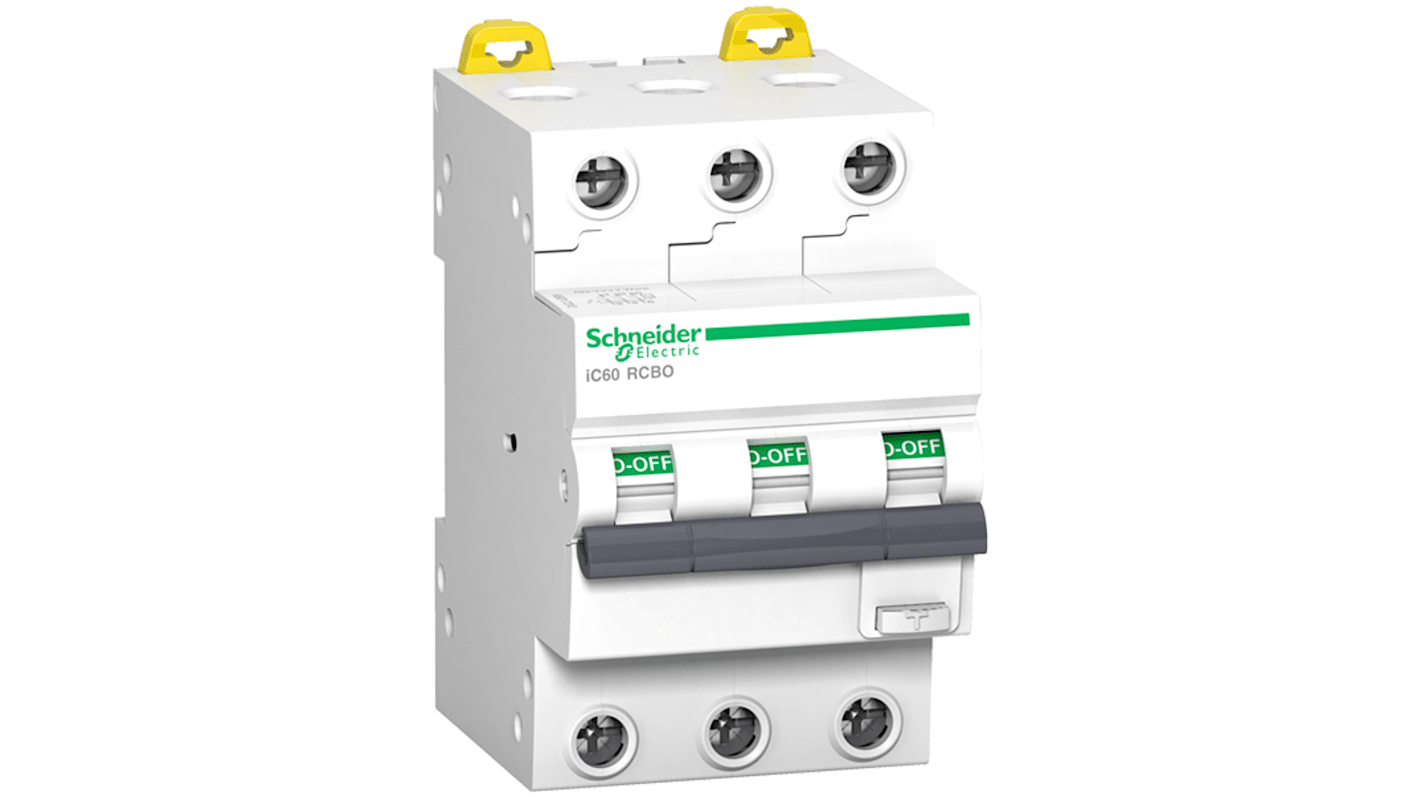

Schneider Electric Residual Current Circuit Breaker with Overload Protection, 16 A Current Rating, 3-Pole, 30 mA Trip

View all RCBOs

Subtotal (1 unit)*

£427.35

(exc. VAT)

£512.82

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 7 unit(s) ready to ship
  • Plus 10 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£427.35

*price indicative

RS Stock No.:
212-247
Mfr. Part No.:
A9D17316
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Product Type

Residual Current Circuit Breaker with Overload Protection

Current Rating

16 A

Series

Acti9 iC60

Number of Poles

3

Range

Acti9

Trip Sensitivity

30mA

Tripping Characteristics

Type C

Mount Type

DIN Rail

Rated AC Voltage

240 V ac

Terminal Type

Tunnel

Earth Leakage Protection Type

Type A

Width

54 mm

Height

86mm

Depth

78mm

Breaking Capacity

10000A

Application

Distribution

Standards/Approvals

EN/IEC 60947-2, EN/IEC 61009-2-1

COO (Country of Origin):
PT
The Schneider Electric Residual Current Breaker with overcurrent protection is designed for AC networks. It has a rated current of 16 A and features thermal-magnetic trip unit technology for overcurrent protection. The device operates with a rated operational voltage of 230 to 240 V AC at 50 Hz and has a rated insulation voltage of 400 V AC at 50 Hz. It uses a toggle control type for easy operation and switching.

Clip on mounting

20000 cycles of mechanical durability

IP40 rated for modular enclosure conforming to IEC 60529
