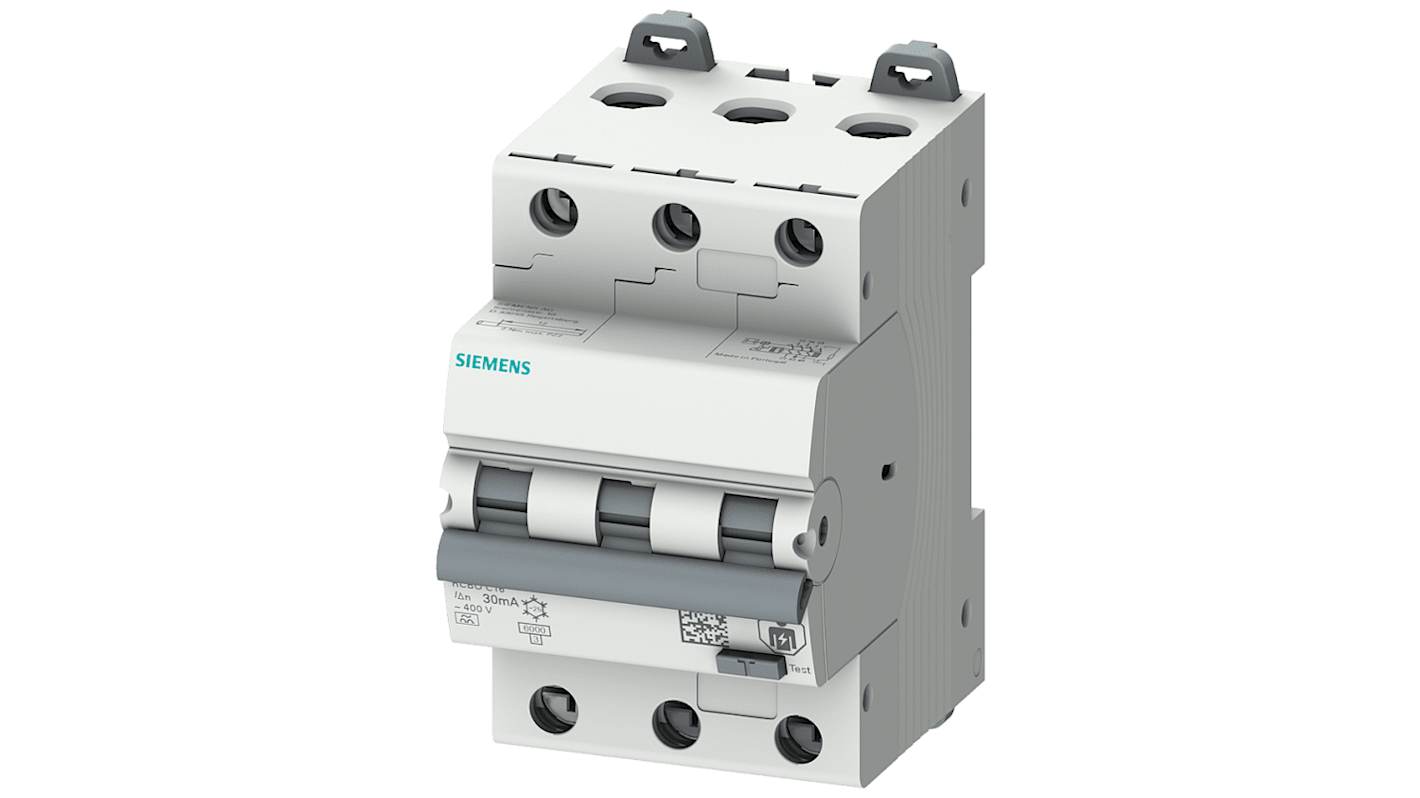

Siemens Residual Current Circuit Breaker with Overload Protection, 16A Current Rating, 3-Pole, 30 mA Trip Sensitivity,
- RS Stock No.:
- 243-6210
- Mfr. Part No.:
- 5SU1336-7FP16
- Brand:
- Siemens
Subtotal (1 unit)*
£336.82
(exc. VAT)
£404.18
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 9 unit(s) ready to ship from another location
- Plus 5 unit(s) shipping from 28 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £336.82 |
*price indicative
Our Better World range features products that make it easy for you to make a greener product choice you can trust.
Learn more about RS Better World products
- RS Stock No.:
- 243-6210
- Mfr. Part No.:
- 5SU1336-7FP16
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Current Rating | 16A | |
| Product Type | Residual Current Circuit Breaker with Overload Protection | |
| Number of Poles | 3 | |
| Range | SENTRON | |
| Series | SENTRON | |
| Trip Sensitivity | 30mA | |
| Tripping Characteristics | Type C | |
| Mount Type | DIN Rail | |
| Rated AC Voltage | 500V ac | |
| Terminal Type | Screw | |
| Earth Leakage Protection Type | Type A | |
| Height | 90mm | |
| Depth | 70mm | |
| Width | 35mm | |
| Better World Claim | Extended Product Life | |
| Better World Product | Yes | |
| Application | General Purpose | |
| Tripping Mechanism | Thermal Magnetic | |
| Reset Actuator Type | Toggle Switch | |
| Breaking Capacity | 6kA | |
| Standards/Approvals | CE | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Current Rating 16A | ||
Product Type Residual Current Circuit Breaker with Overload Protection | ||
Number of Poles 3 | ||
Range SENTRON | ||
Series SENTRON | ||
Trip Sensitivity 30mA | ||
Tripping Characteristics Type C | ||
Mount Type DIN Rail | ||
Rated AC Voltage 500V ac | ||
Terminal Type Screw | ||
Earth Leakage Protection Type Type A | ||
Height 90mm | ||
Depth 70mm | ||
Width 35mm | ||
Better World Claim Extended Product Life | ||
Better World Product Yes | ||
Application General Purpose | ||
Tripping Mechanism Thermal Magnetic | ||
Reset Actuator Type Toggle Switch | ||
Breaking Capacity 6kA | ||
Standards/Approvals CE | ||
- COO (Country of Origin):
- PT
Siemens 5SU1 Series RCBO, 16A Current Rating, 85mm Overall Length - 5SU1336-7FP16
This RCBO is designed to provide vital protection against earth faults in electrical installations. It integrates the functions of both an MCB and an RCD, ensuring safety by detecting overcurrent and leakage to the ground. With a current rating of 16 A and a sensitivity of 30 mA, this device is crucial for safeguarding systems while delivering efficient circuit protection for multiple applications.
Features & Benefits
• Incorporates instantaneous tripping for swift fault response
• Provides a breaking capacity of 6 kA to handle short circuits
• Designed as a 3-pole circuit breaker for three-phase systems
• Operates efficiently at a rated AC voltage of 500 V
• Compatible with screw-type terminals for secure connections
Applications
• Used for motor protection in industrial environments
• Ideal for commercial electrical distribution networks
• Suitable for residential installations requiring earth fault protection
• Employed with automation systems to enhance safety
What is the maximum operational current at elevated temperatures?
At 40 °C, the operational current is rated at 15.2A, decreasing gradually with increased temperatures to a minimum of 12.5 A at 70 °C.
How does the device ensure protection against overvoltage?
It features a surge voltage resistance rated up to 4000V, which protects connected equipment during transient events.
What is the typical mechanical service life of this device?
The RCBO has a typical mechanical service life of approximately 10,000 operating cycles, ensuring durability in regular use.
Can it be mounted in various positions?
Yes, the design allows for installation in any position, providing flexibility in tight spaces.
What is the level of humidity tolerance during operation?
It operates effectively in environments with humidity levels up to 95%, making it suitable for diverse conditions.
