Siemens Residual Current Circuit Breaker with Overload Protection, 16A Current Rating, 4-Pole, 30 mA Trip Sensitivity,

RS Stock No.:: 243-6222
Mfr. Part No.:: 5SU1346-7FP16
Brand:: Siemens

Siemens Residual Current Circuit Breaker with Overload Protection, 16A Current Rating, 4-Pole, 30 mA Trip Sensitivity,

Subtotal (1 unit)*

£388.54

(exc. VAT)

£466.25

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

4 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£388.54

*price indicative

Our Better World range features products that make it easy for you to make a greener product choice you can trust.

Learn more about RS Better World products

RS Stock No.:: 243-6222
Mfr. Part No.:: 5SU1346-7FP16
Brand:: Siemens

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Siemens
	Current Rating	16A
	Product Type	Residual Current Circuit Breaker with Overload Protection
	Number of Poles	4
	Series	5SU1
	Range	SENTRON
	Trip Sensitivity	30mA
	Tripping Characteristics	Type C
	Mount Type	DIN Rail
	Rated AC Voltage	400V ac
	Terminal Type	Screw
	Height	85mm
	Depth	72mm
	Width	72mm
	Better World Product	Yes
	Better World Claim	Extended Product Life
	Standards/Approvals	CE, CCC, EAC
	Reset Actuator Type	Lever
	Breaking Capacity	6kA

	Select all
	Brand Siemens
	Current Rating 16A
	Product Type Residual Current Circuit Breaker with Overload Protection
	Number of Poles 4
	Series 5SU1
	Range SENTRON
	Trip Sensitivity 30mA
	Tripping Characteristics Type C
	Mount Type DIN Rail
	Rated AC Voltage 400V ac
	Terminal Type Screw
	Height 85mm
	Depth 72mm
	Width 72mm
	Better World Product Yes
	Better World Claim Extended Product Life
	Standards/Approvals CE, CCC, EAC
	Reset Actuator Type Lever
	Breaking Capacity 6kA

COO (Country of Origin):: PT

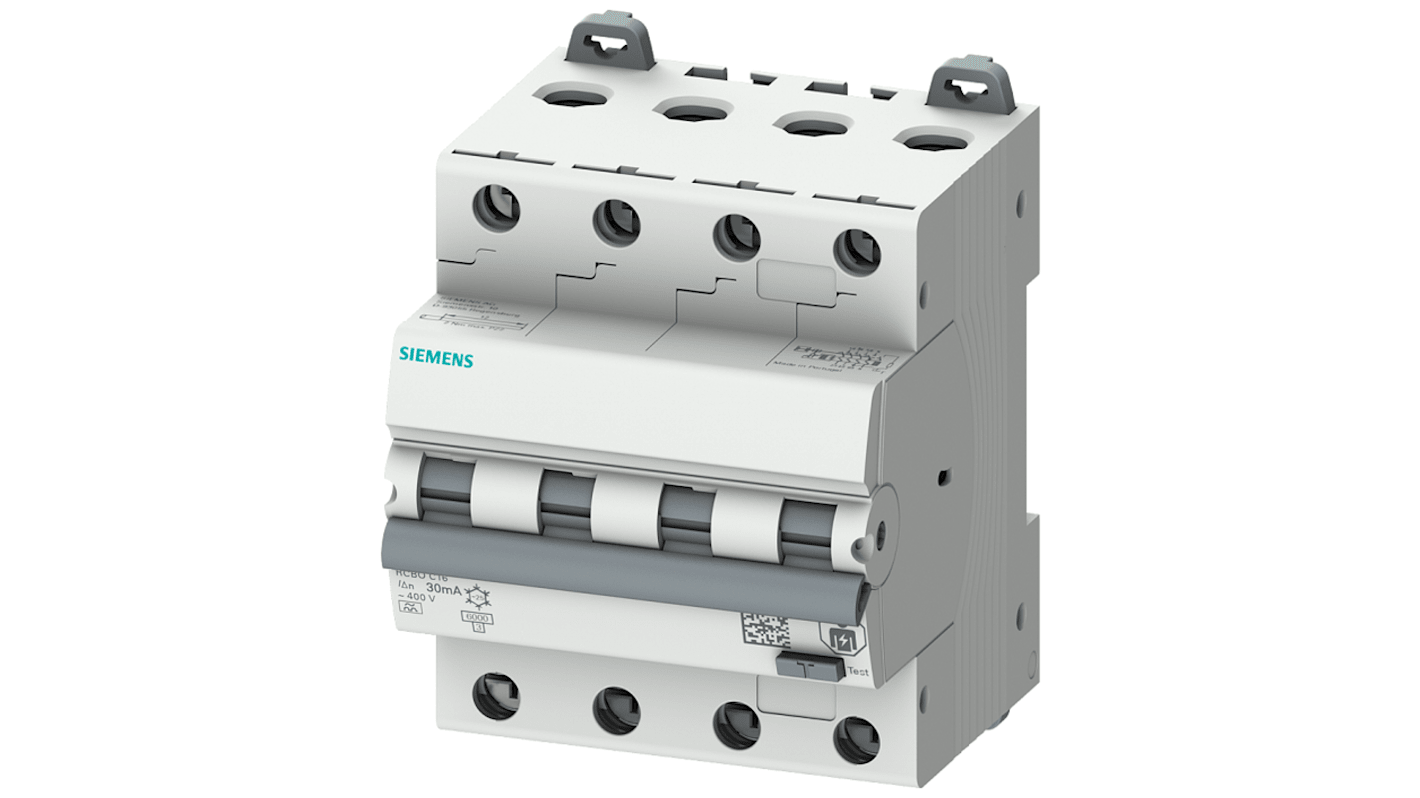

Siemens 5SU1 Series RCBO, 16A Current Rating, 30mA Trip Sensitivity - 5SU1346-7FP16

This RCBO is a reliable electrical safety device designed for effective overcurrent protection. This 4-pole circuit breaker provides a current rating of 16A and ensures high operational safety with a 30mA trip sensitivity. Its compact dimensions of 85 x 72 x 72mm make installation seamless in various electrical settings.

Features & Benefits

• Incorporates Type C tripping characteristics for reliable protection

• Boasts a breaking capacity of 6kA for safe circuit disconnection

• Supports AC voltage levels up to 400V for versatile applications

• Designed for a mechanical lifespan of approximately 10,000 cycles

• Features both touch protection and neutral conductor switching for enhanced safety

• Accepts conductor cross-sections from 1mm² to 35mm² to suit diverse wiring needs

Applications

• Ideal for protection in residential and commercial electrical installations

• Utilised in industrial settings requiring robust overcurrent protection

• Suitable for use in environments with high inrush currents

• Employed in circuit needing reliable 4-pole functionality

What is the maximum operational temperature for this device?

The device operates effectively across a temperature range from -25°C to 40°C, making it suitable for various environmental conditions.

How does the tripping sensitivity affect circuit safety?

A 30mA trip sensitivity ensures prompt disconnection during fault conditions, effectively minimising the risk of electric shock and equipment damage.

What type of voltage is supported for operation?

This device is designed for AC voltage use, with a rated supply voltage of 400V, ensuring compatibility with standard electrical systems.

What is the importance of the mechanical service life in practical applications?

The mechanical service life of approximately 10,000 cycles indicates durability, ensuring dependable performance and reducing the frequency of replacement in high-use environments.
