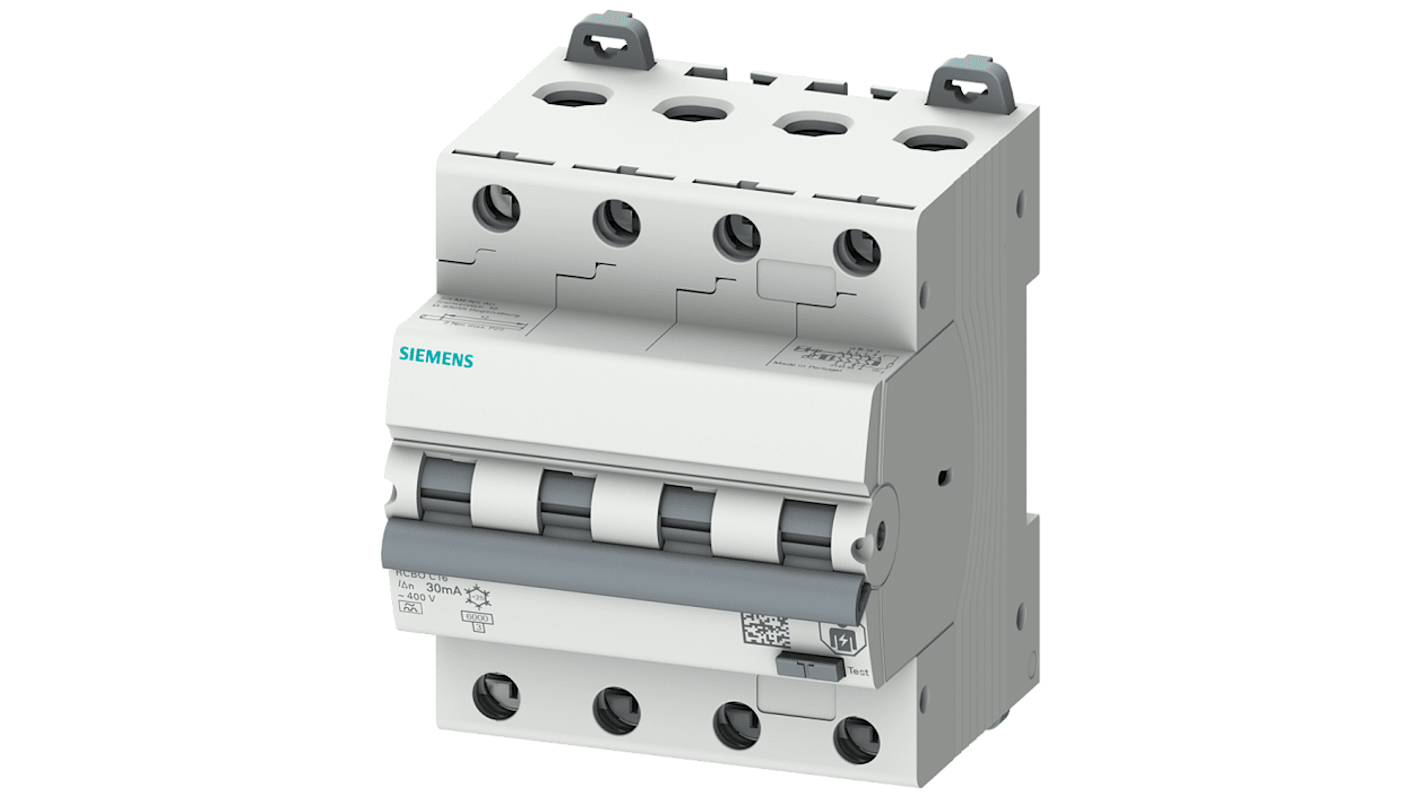

Siemens Residual Current Circuit Breaker with Overload Protection, 16A Current Rating, 4-Pole, 30 mA Trip Sensitivity,
- RS Stock No.:
- 243-6217
- Mfr. Part No.:
- 5SU1346-6FP16
- Brand:
- Siemens
Subtotal (1 unit)*
£317.88
(exc. VAT)
£381.46
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £317.88 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 243-6217
- Mfr. Part No.:
- 5SU1346-6FP16
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Residual Current Circuit Breaker with Overload Protection | |
| Current Rating | 16A | |
| Range | SENTRON | |
| Series | 5SU1 | |
| Number of Poles | 4 | |
| Trip Sensitivity | 30mA | |
| Tripping Characteristics | Type B | |
| Mount Type | DIN Rail | |
| Rated AC Voltage | 400V ac | |
| Terminal Type | Screw | |
| Width | 72mm | |
| Depth | 72mm | |
| Height | 85mm | |
| Better World Product | Yes | |
| Better World Claim | Extended Product Life | |
| Reset Actuator Type | Lever | |
| Breaking Capacity | 6kA | |
| Standards/Approvals | CE, EAC | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Residual Current Circuit Breaker with Overload Protection | ||
Current Rating 16A | ||
Range SENTRON | ||
Series 5SU1 | ||
Number of Poles 4 | ||
Trip Sensitivity 30mA | ||
Tripping Characteristics Type B | ||
Mount Type DIN Rail | ||
Rated AC Voltage 400V ac | ||
Terminal Type Screw | ||
Width 72mm | ||
Depth 72mm | ||
Height 85mm | ||
Better World Product Yes | ||
Better World Claim Extended Product Life | ||
Reset Actuator Type Lever | ||
Breaking Capacity 6kA | ||
Standards/Approvals CE, EAC | ||
- COO (Country of Origin):
- PT
Siemens 5SU1 Series RCBO, 16A - 5SU1346-6FP16
The residual current circuit breaker with overcurrent protection enhances electrical safety by interrupting the circuit when a fault is detected, preventing electric shock and equipment damage. This device is essential in electrical systems for homes and industrial applications.
Features & Benefits
• Provides protection against electric shock with 30 mA trip sensitivity
• Supports a 400 V rated AC voltage for diverse applications
• Incorporates a Type B circuit breaker for effective fault detection
• Offers a breaking capacity of 6 kA for dependable performance
• Utilises screw terminal contacts for secure connections
• Facilitates straightforward integration with a four-pole configuration
Applications
• Suitable for use in electrical distribution panels
• Ideal for safeguarding three-phase systems
• Appropriate for commercial applications with high safety standards
• Necessary for residential installations involving multiple circuits
What happens if the breaker trips?
It will interrupt the circuit to prevent current leakage, ensuring safety.
Can it be installed in any position?
Yes, it can be mounted in any orientation for flexibility.
What conductor sizes can be connected?
It accommodates solid and stranded conductors ranging from 1 mm² to 35 mm².
How often should it be tested?
Regular testing every six months is recommended for reliability.
Is it suitable for outdoor installations?
This product is designed for indoor use only, with IP20 protection.
