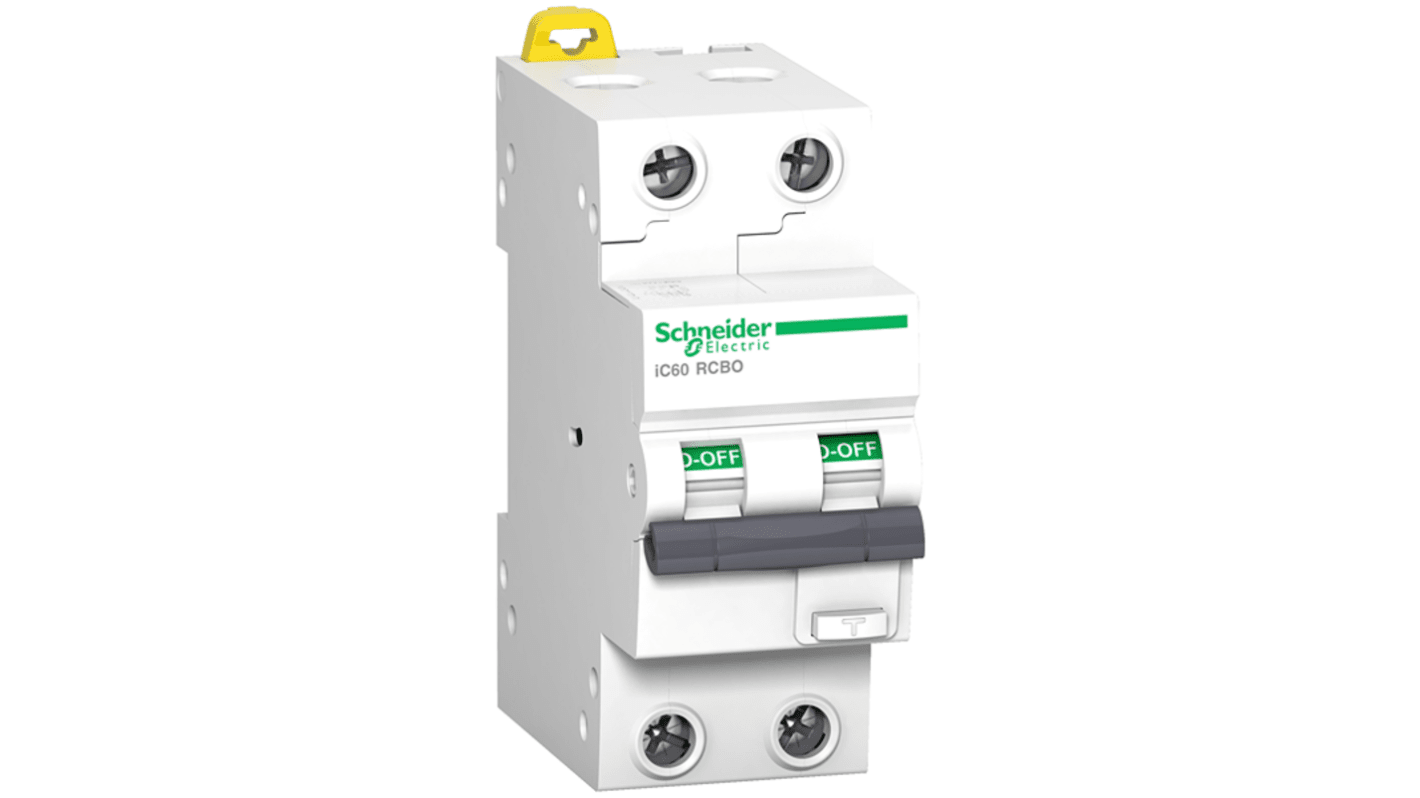

Schneider Electric Residual Current Circuit Breaker with Overload Protection, 32A Current Rating, 2-Pole, 30 mA Trip

View all RCBOs

Subtotal (1 unit)*

£893.76

(exc. VAT)

£1,072.51

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 12 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£893.76

*price indicative

RS Stock No.:
428-817
Mfr. Part No.:
A9D27232
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Product Type

Residual Current Circuit Breaker with Overload Protection

Current Rating

32A

Range

Acti9

Series

Acti9 iC60

Number of Poles

2

Trip Sensitivity

30mA

Tripping Characteristics

Type C

Mount Type

DIN Rail

Rated AC Voltage

240V ac

Terminal Type

Tunnel

Earth Leakage Protection Type

A-SI

Depth

78mm

Width

36mm

Height

86mm

Standards/Approvals

EN/IEC 60947-2, EN/IEC 61009-2-1

Breaking Capacity

10000A

Application

Distribution

COO (Country of Origin):
PT
The Schneider Electric Acti9 iC60 RCBO is a modular residual current breaker with overcurrent protection. It is a 2P RCBO with 2 protected poles, rated current is 32A, and operating voltage is 220VAC to 240VAC. The earth leakage protection class is A-SI type with a sensitivity of 30mA. The earth leakage protection time delay is instantaneous. Breaking capacity at 220VAC to 240VAC is 10000A according to EN/IEC 61009-2-1.

IP20 and IP40 protection rated

Mercury free

RoHS compliant

Overvoltage III category conforming to IEC 60364
