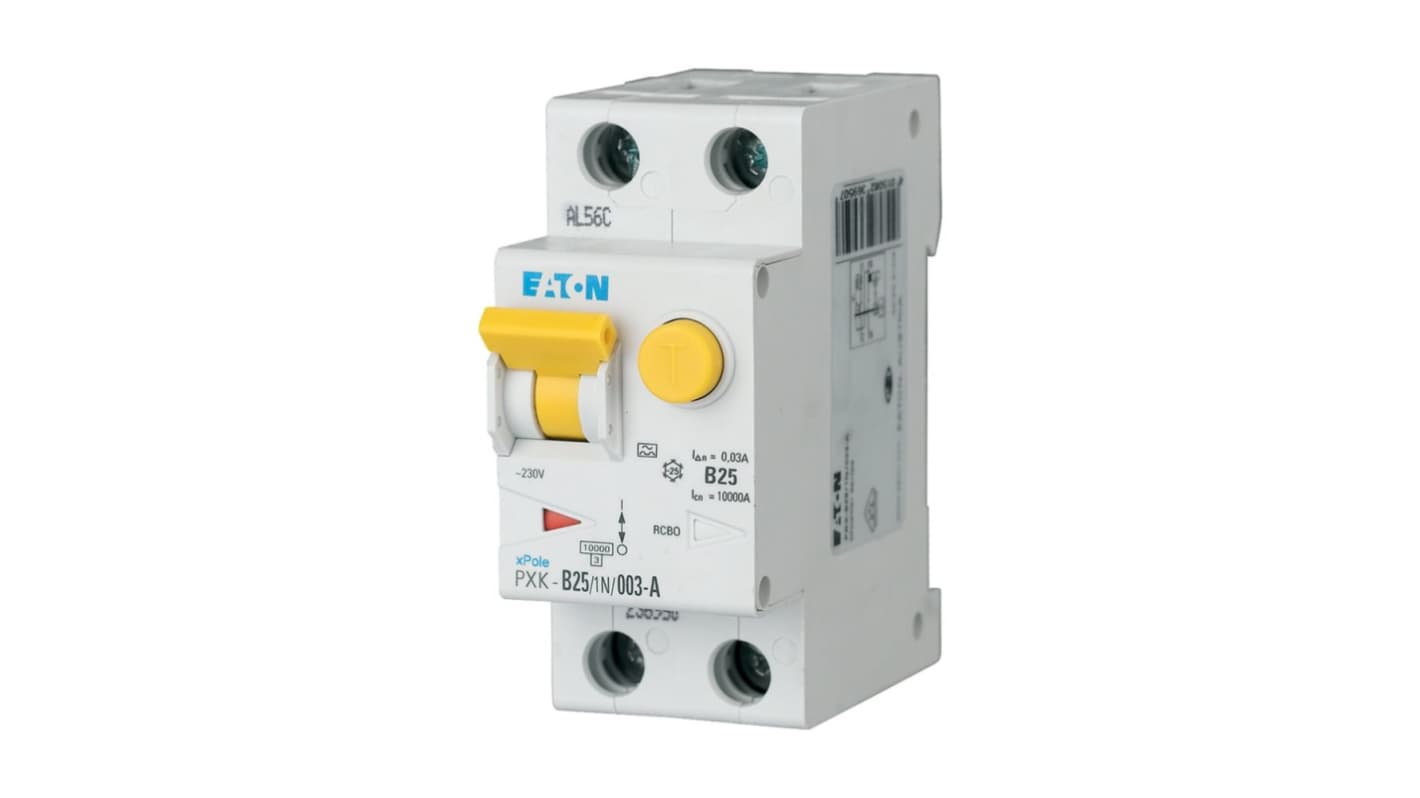

Eaton Residual Current Circuit Breaker with Overload Protection, 25A Current Rating, 1-Pole, 30 mA Trip Sensitivity,
- RS Stock No.:
- 254-952
- Mfr. Part No.:
- 236950 PXK-B25/1N/003-A
- Brand:
- Eaton
Subtotal (1 unit)*
£193.06
(exc. VAT)
£231.67
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 02 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £193.06 |
*price indicative
- RS Stock No.:
- 254-952
- Mfr. Part No.:
- 236950 PXK-B25/1N/003-A
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Residual Current Circuit Breaker with Overload Protection | |
| Current Rating | 25A | |
| Range | xPole | |
| Number of Poles | 1 | |
| Series | xPole - PXK RCBO | |
| Trip Sensitivity | 30mA | |
| Tripping Characteristics | Type B | |
| Rated AC Voltage | 240V ac | |
| Depth | 69.5mm | |
| Width | 35mm | |
| Height | 75mm | |
| Standards/Approvals | CE, RoHS | |
| Breaking Capacity | 10kA | |
| Application | Commercial, Residential | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Residual Current Circuit Breaker with Overload Protection | ||
Current Rating 25A | ||
Range xPole | ||
Number of Poles 1 | ||
Series xPole - PXK RCBO | ||
Trip Sensitivity 30mA | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 240V ac | ||
Depth 69.5mm | ||
Width 35mm | ||
Height 75mm | ||
Standards/Approvals CE, RoHS | ||
Breaking Capacity 10kA | ||
Application Commercial, Residential | ||
- COO (Country of Origin):
- RO
The Eaton Moeller series xPole - PXK RCBO is the pinnacle of safety and reliability in residual-current circuit breakers. Designed to provide exceptional protection against electrical faults, this innovative device combines overcurrent protection with a sensitivity of 30mA, making it ideal for both residential and commercial applications. Its robust construction and compact form factor ensure easy installation and integration into various switchgear solutions. The intelligent design not only focuses on performance but also prioritises compliance, ensuring that the product meets strict safety and environmental standards. With a temperature rating extending from -25°C to 40°C, this device operates effectively across a diverse range of conditions, bringing peace of mind to users seeking dependable electrical protection.
Offers dual protection from residual and overcurrent faults
Compact dimensions facilitate seamless installation in tight spaces
Suitable for various applications, including residential and commercial switchgear
CE marked for compliance with European safety standards
Built to withstand challenging environments with high durability
Operational across a wide temperature range for versatility
Innovative thermal stability features enhance safety during operation
Designed to ensure ease of maintenance and accessibility
