Eaton RCBO, 13A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type C, PXK Range
- RS Stock No.:
- 183-3544
- Mfr. Part No.:
- 236963 PXK-C13/1N/003-A
- Brand:
- Eaton
Subtotal (1 unit)*
£67.39
(exc. VAT)
£80.87
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
- Plus 36 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £67.39 |
*price indicative
- RS Stock No.:
- 183-3544
- Mfr. Part No.:
- 236963 PXK-C13/1N/003-A
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Current Rating | 13A | |
Number of Poles | 1P+N | |
Trip Sensitivity | 30mA | |
Tripping Characteristics | Type C | |
Range | PXK | |
Circuit Breaker Type | RCD | |
Rated AC Voltage | 240V | |
Earth Leakage Protection Type | A | |
Application | Commercial, Residential | |
Breaking Capacity at Maximum Voltage Rating | 10 kA | |
Break Time | Instantaneous | |
Select all | ||
---|---|---|
Brand Eaton | ||
Current Rating 13A | ||
Number of Poles 1P+N | ||
Trip Sensitivity 30mA | ||
Tripping Characteristics Type C | ||
Range PXK | ||
Circuit Breaker Type RCD | ||
Rated AC Voltage 240V | ||
Earth Leakage Protection Type A | ||
Application Commercial, Residential | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Break Time Instantaneous | ||
- COO (Country of Origin):
- AT

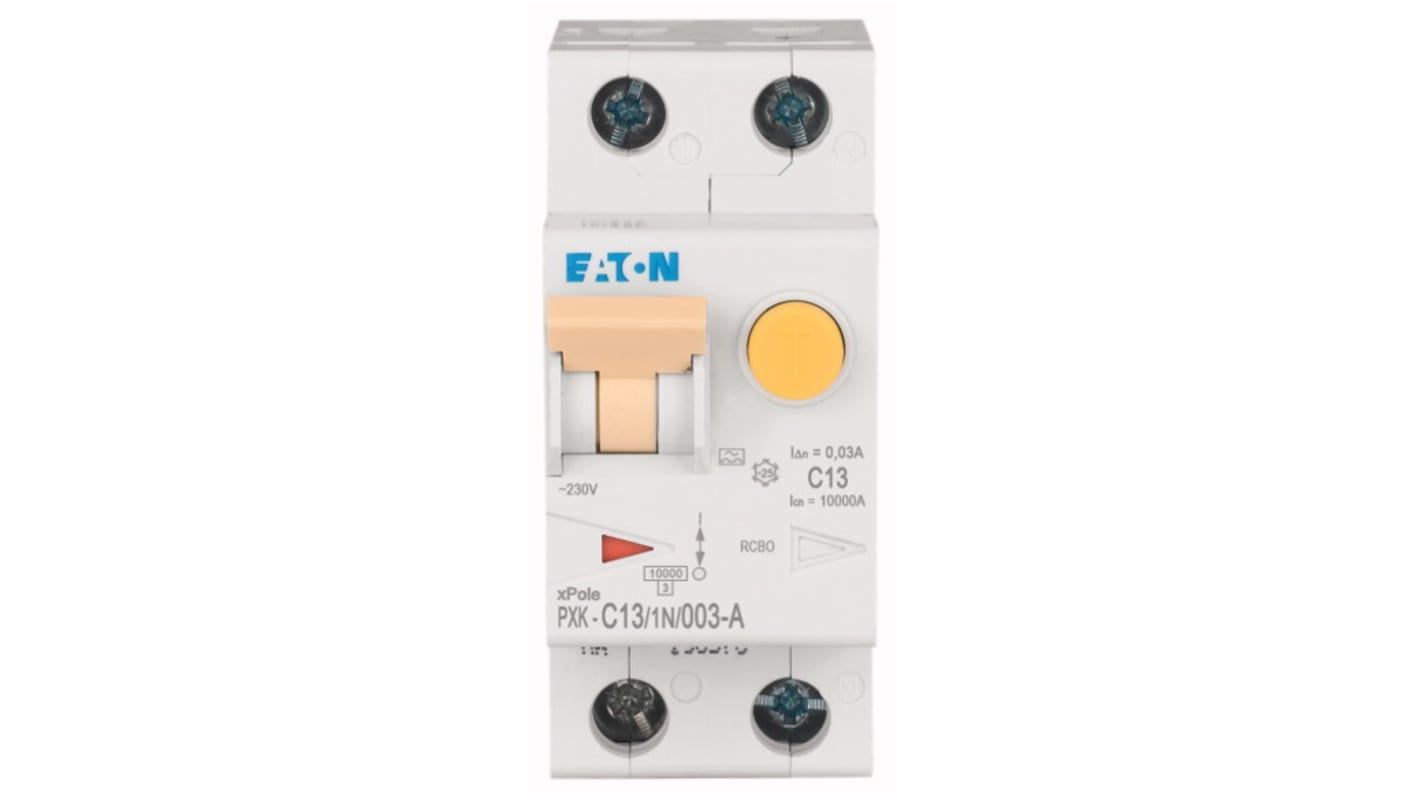

Eaton Residual Current Circuit Breaker with Overcurrent Protection, 1+N Poles - PXK-C Series - PXK-C13/1N/003-A
Install this Eaton RCBO (residual current circuit breaker with overcurrent protection) to keep your industrial applications and home appliances running safely. The unit combines the functions of a residual circuit breaker (RCB) and a miniature circuit breaker (MCB) to detect earth fault currents, overload and short circuits. When these irregularities occur, it quickly cuts off the power supply. This protects operators from injuries through electric shocks and prevents damage to your equipment.
• IP20 (ingress protection) rating indicates protection from touch and live wires and prevention of entry of larger corrosive particles
• Breaking capacity of 10kA ensures non-delayed power supply trips before faults escalate
• 30mA high trip sensitivity prevents fatal electrocutions
• Breaking capacity of 10kA ensures non-delayed power supply trips before faults escalate
• 30mA high trip sensitivity prevents fatal electrocutions
When should I use an RCBO?
You should use RCBOs in applications such as commercial lighting and office IT systems where there's the need for combined protection against both overcurrents (overload and short-circuit) and earth leakage currents. It's advisable to install them on each separate circuit to prevent faults on one circuit from affecting the functioning of other circuits.
Can I use an RCBO instead of an RCB (residual circuit breaker)?
Yes, because the RCBO performs the functions of an RCB, protecting circuits against current leaks and overloads at the same time.
Note
Eaton formerly known as Moeller
