Eaton RCBO, 10A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type C, PXK Range
- RS Stock No.:
- 183-3543
- Mfr. Part No.:
- 236962 PXK-C10/1N/003-A
- Brand:
- Eaton
Subtotal (1 unit)*
£67.39
(exc. VAT)
£80.87
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
- Plus 91 unit(s) ready to ship from another location
- Plus 999,999,993 unit(s) shipping from 19 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £67.39 |
*price indicative
- RS Stock No.:
- 183-3543
- Mfr. Part No.:
- 236962 PXK-C10/1N/003-A
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Current Rating | 10A | |
Number of Poles | 1P+N | |
Trip Sensitivity | 30mA | |
Tripping Characteristics | Type C | |
Range | PXK | |
Circuit Breaker Type | RCD | |
Rated AC Voltage | 240V | |
Earth Leakage Protection Type | A | |
Application | Commercial, Residential | |
Breaking Capacity at Maximum Voltage Rating | 10 kA | |
Break Time | Instantaneous | |
Select all | ||
---|---|---|
Brand Eaton | ||
Current Rating 10A | ||
Number of Poles 1P+N | ||
Trip Sensitivity 30mA | ||
Tripping Characteristics Type C | ||
Range PXK | ||
Circuit Breaker Type RCD | ||
Rated AC Voltage 240V | ||
Earth Leakage Protection Type A | ||
Application Commercial, Residential | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Break Time Instantaneous | ||
- COO (Country of Origin):
- AT

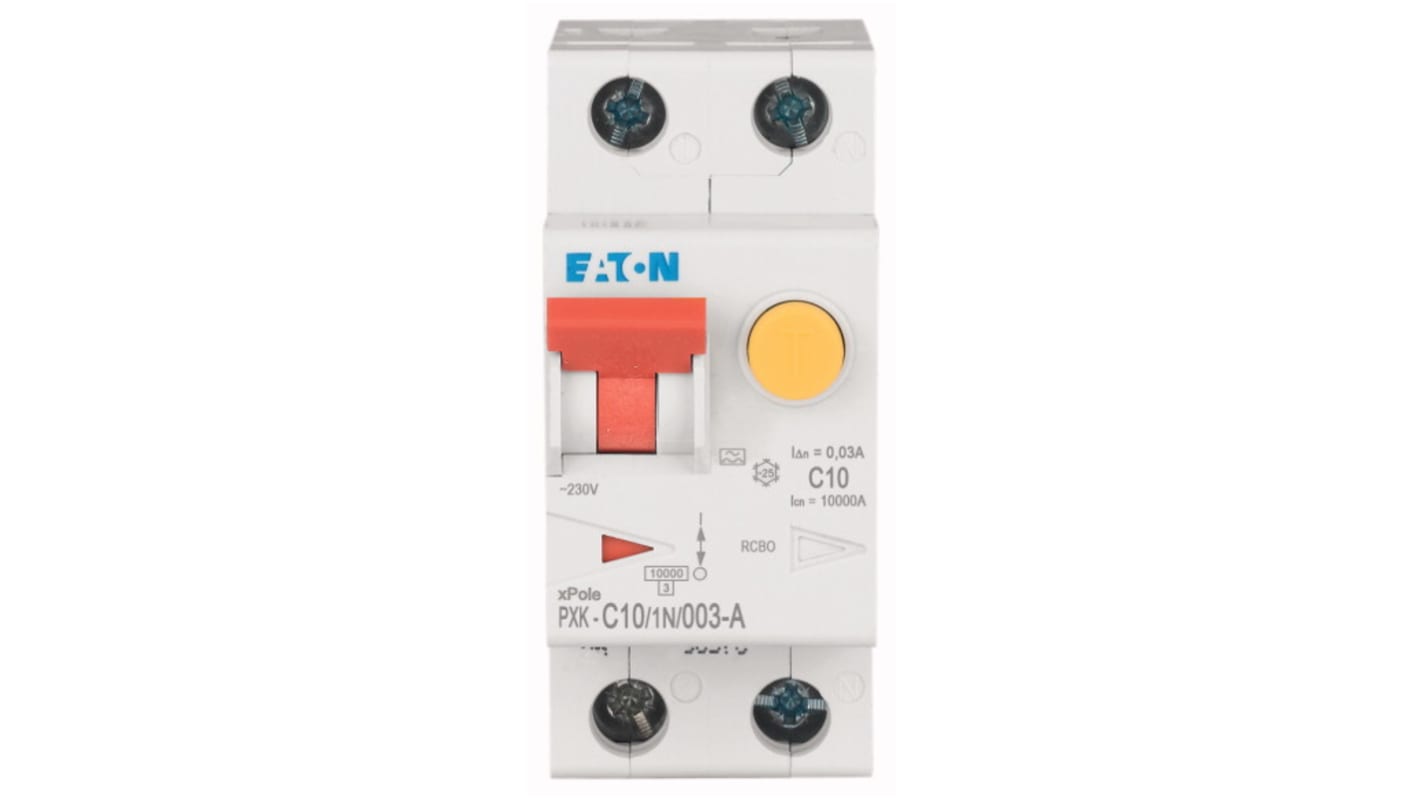

Eaton Residual Current Circuit Breaker With Overcurrent Protection, 1+N Poles - PXK-C Series - PXK-C10/1N/003-A
Looking for a combined solution that detects and protects against overload and short circuits? This Eaton RCBO (residual current circuit breaker with overcurrent protection) combines RCB (residual current device) and MCB (miniature circuit breaker) functionality to protect against earth leakage as well as overcurrent. It interrupts and disconnects power supplies when it detects a fault, protecting operators from electric shocks and equipment from damage. Attach this unit to your industrial circuits to enhance workplace safety.
• Operating temperature range of -25°C to +40°C for use with devices in demanding indoor and outdoor settings
• Trip sensitivity of 30mA prevents risk of electric shocks
• Type-C tripping characteristics ensure the device triggers disconnect within 5 seconds after fault detection
• Trip sensitivity of 30mA prevents risk of electric shocks
• Type-C tripping characteristics ensure the device triggers disconnect within 5 seconds after fault detection
Why is an RCBO better than a circuit breaker?
Circuit breakers only disconnect the flow of current after a fault occurs. An RCBO, such as this one from Eaton, incorporates a circuit breaker and an overcurrent protector, which automatically interrupt the power supply when detecting even slight imbalances on a circuit. By doing this, it prevents damage to equipment and injury caused by electrocution.
Note
Eaton formerly known as Moeller
