Eaton RCBO, 13A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type B, PXK Range
- RS Stock No.:
- 183-3539
- Mfr. Part No.:
- 236947 PXK-B13/1N/003-A
- Brand:
- Eaton
Subtotal (1 unit)*
£65.76
(exc. VAT)
£78.91
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
- Plus 49 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £65.76 |
*price indicative
- RS Stock No.:
- 183-3539
- Mfr. Part No.:
- 236947 PXK-B13/1N/003-A
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Current Rating | 13A | |
Number of Poles | 1P+N | |
Trip Sensitivity | 30mA | |
Tripping Characteristics | Type B | |
Range | PXK | |
Circuit Breaker Type | RCD | |
Rated AC Voltage | 240V | |
Earth Leakage Protection Type | A | |
Break Time | Instantaneous | |
Application | Commercial, Residential | |
Breaking Capacity at Maximum Voltage Rating | 10 kA | |
Select all | ||
---|---|---|
Brand Eaton | ||
Current Rating 13A | ||
Number of Poles 1P+N | ||
Trip Sensitivity 30mA | ||
Tripping Characteristics Type B | ||
Range PXK | ||
Circuit Breaker Type RCD | ||
Rated AC Voltage 240V | ||
Earth Leakage Protection Type A | ||
Break Time Instantaneous | ||
Application Commercial, Residential | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
- COO (Country of Origin):
- AT

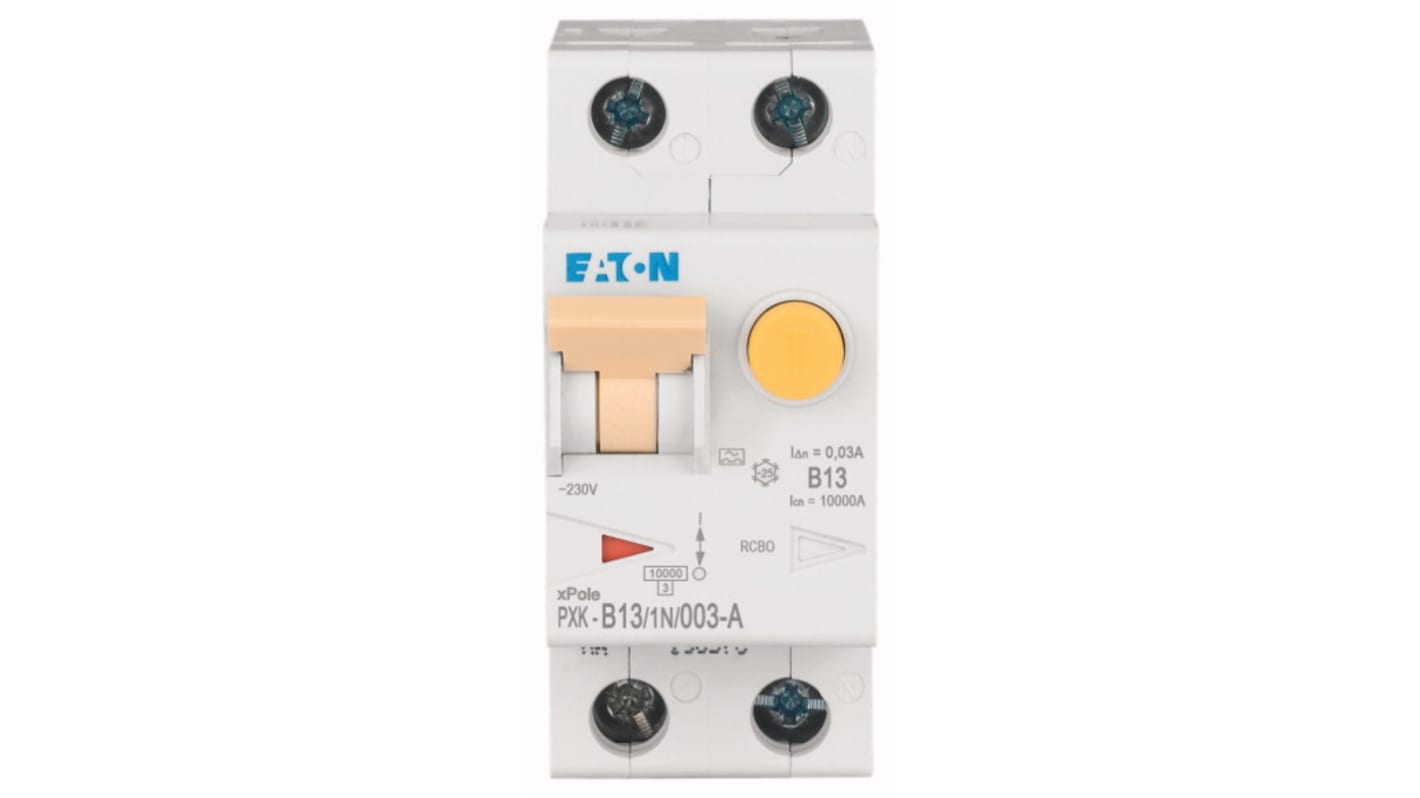

Eaton Residual Current Circuit Breaker With Overcurrent Protection, 1 Pole - PXK-B Series - PXK-B13/1N/003-A
Protect your electrical installations from defects with this Eaton RCBO (residual current breaker with overcurrent protection). Its combined residual current device and miniature circuit breaker functionality guarantees a swift disconnect if any form of current malfunction is detected. This type-B RCBO can be used as a safety feature in installations with high-frequency AC current up to 13A. Use it to regulate consumer units in both domestic and commercial applications.
• Conveniently placed ON/OFF switch for easy activation
• High-rated insulation voltage of 440V for optimal use in a range of environments
• 30mA tripping threshold for reliable protection against electric shock
• High-rated insulation voltage of 440V for optimal use in a range of environments
• 30mA tripping threshold for reliable protection against electric shock
What electrical devices can I install this type-B RCBO in?
You can use this device as an effective safeguard in a range of devices, including ventilation machinery, charging stations, lifts and escalators.
How do I install this Eaton RCBO?
You'll need compatible line and neutral wires and a screwdriver to install this RCBO. Attach the wire to the appropriate terminal in the consumer unit and secure it with a screwdriver. Follow this by connecting the earth wire to the bar. Finish by testing to ensure the circuit breaker is working properly.
Note
Eaton formerly known as Moeller
