Eaton RCBO, 20A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type B, PXK Range
- RS Stock No.:
- 183-3541
- Mfr. Part No.:
- 236949 PXK-B20/1N/003-A
- Brand:
- Eaton
Subtotal (1 unit)*
£65.76
(exc. VAT)
£78.91
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 19 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £65.76 |
*price indicative
- RS Stock No.:
- 183-3541
- Mfr. Part No.:
- 236949 PXK-B20/1N/003-A
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Current Rating | 20A | |
Number of Poles | 1P+N | |
Trip Sensitivity | 30mA | |
Tripping Characteristics | Type B | |
Range | PXK | |
Circuit Breaker Type | RCD | |
Rated AC Voltage | 240V | |
Earth Leakage Protection Type | A | |
Break Time | Instantaneous | |
Application | Commercial, Residential | |
Breaking Capacity at Maximum Voltage Rating | 10 kA | |
Select all | ||
---|---|---|
Brand Eaton | ||
Current Rating 20A | ||
Number of Poles 1P+N | ||
Trip Sensitivity 30mA | ||
Tripping Characteristics Type B | ||
Range PXK | ||
Circuit Breaker Type RCD | ||
Rated AC Voltage 240V | ||
Earth Leakage Protection Type A | ||
Break Time Instantaneous | ||
Application Commercial, Residential | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
- COO (Country of Origin):
- AT

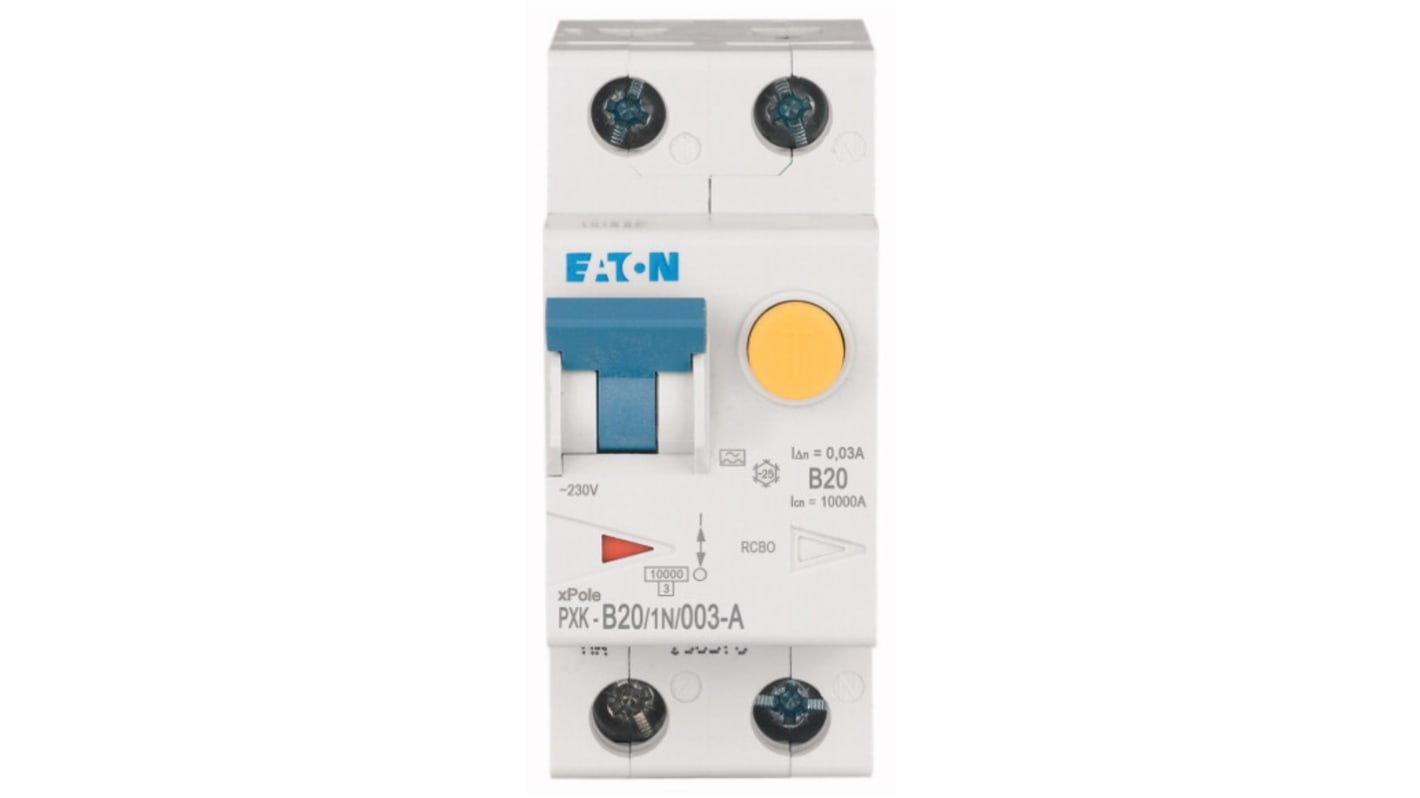

Eaton Residual Current Circuit Breaker With Overcurrent Protection, 1+N Poles - PXK-B Series - PXK-B20/1N/003-A
This RCBO (residual current breaker with overcurrent protection) from Eaton effectively monitors the current flow in your electrical systems. It automatically initiates a disconnection if an overcurrent or earth leakage is detected, stopping any damage to equipment and preventing electrocution. Its type-B tripping characteristic means it's designed to trip at fault currents three to five times the rated current of 20A – so between 60A and 100A. Mount this unit in power control setups for household electrical systems, medical devices and charging stations.
• 10kA breaking capacity makes for reliable operations under pressure
• Rated IP20 (ingress protection) so it's touch-proof and protected from dust
• Operating temperature range between -25°C and +40°C for use in demanding industrial environments
• Rated IP20 (ingress protection) so it's touch-proof and protected from dust
• Operating temperature range between -25°C and +40°C for use in demanding industrial environments
What does the earth leakage protection in this RCBO mean?
An earth leakage refers to an abnormal flowing current that may interact with the metal component of an electrical device, which can result in electrocution. This RCBO monitors the flow of current and detects when leakage has occurred, automatically shutting off. This switchgear detects leakage current of up to 20A and initiates tripping instantaneously.
Note
Eaton formerly known as Moeller
