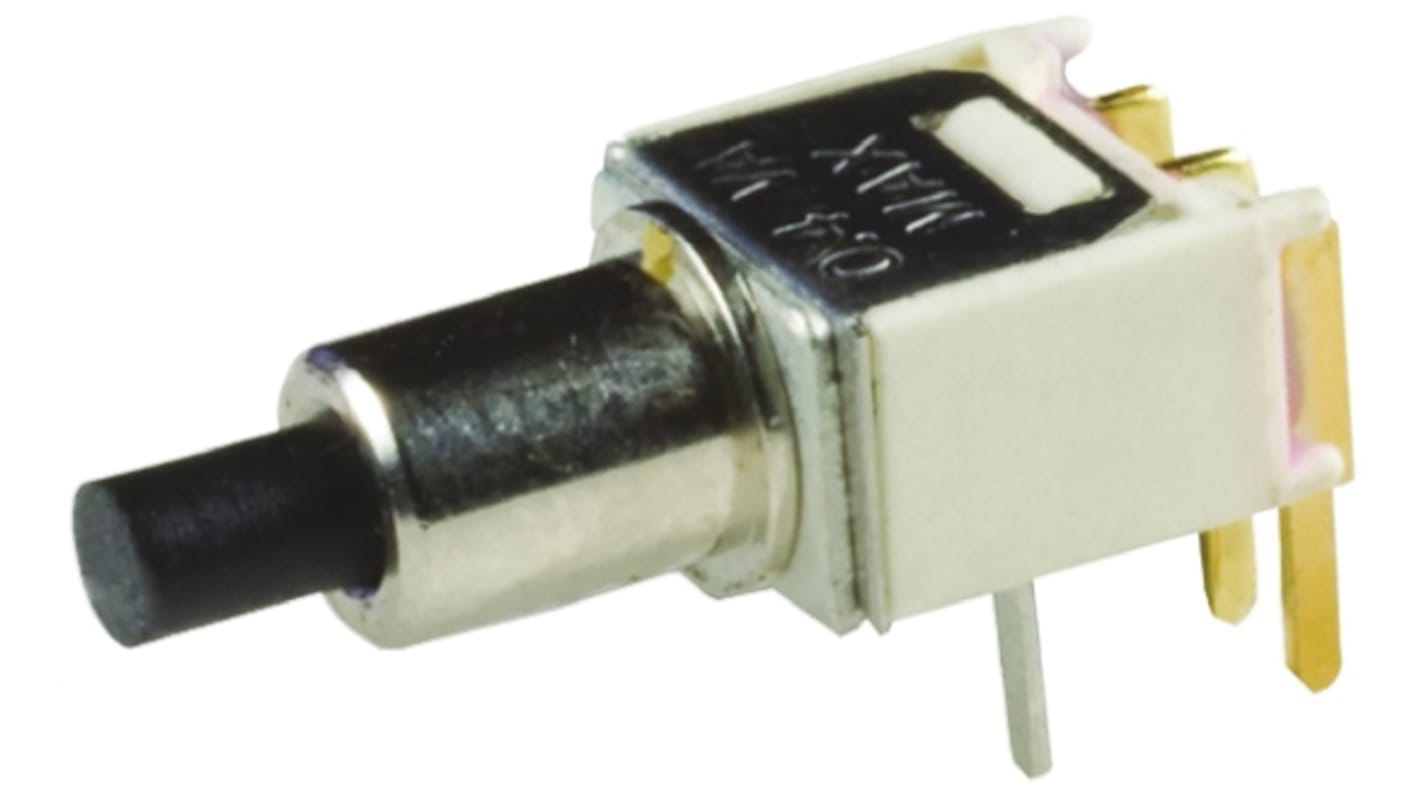

C & K TP Series Push Button Switch, Momentary, Through Hole, SPST, 28 V dc 120 V ac
- RS Stock No.:
- 793-1796
- Mfr. Part No.:
- TP11SH9ABE
- Brand:
- C & K
Bulk discount available
Subtotal (1 unit)*
£5.55
(exc. VAT)
£6.66
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 12 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 9 | £5.55 |
| 10 - 24 | £5.39 |
| 25 - 49 | £5.22 |
| 50 - 99 | £4.94 |
| 100 + | £4.55 |
*price indicative
- RS Stock No.:
- 793-1796
- Mfr. Part No.:
- TP11SH9ABE
- Brand:
- C & K
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | C & K | |
| Product Type | Push Button Switch | |
| Actuator Colour | Yellow | |
| Switch Operation | Momentary | |
| Illuminated | No | |
| Series | TP | |
| Mount Type | Through Hole | |
| Contact Configuration | SPST | |
| Terminal Type | PCB Pin | |
| Minimum Operating Temperature | -30°C | |
| Actuator Style | Plunger | |
| Contact AC Voltage | 120V ac | |
| Contact DC Voltage | 28V dc | |
| Maximum Operating Temperature | 85°C | |
| Switch Contact Current | 400 mA | |
| Standards/Approvals | RoHS, UR | |
| Select all | ||
|---|---|---|
Brand C & K | ||
Product Type Push Button Switch | ||
Actuator Colour Yellow | ||
Switch Operation Momentary | ||
Illuminated No | ||
Series TP | ||
Mount Type Through Hole | ||
Contact Configuration SPST | ||
Terminal Type PCB Pin | ||
Minimum Operating Temperature -30°C | ||
Actuator Style Plunger | ||
Contact AC Voltage 120V ac | ||
Contact DC Voltage 28V dc | ||
Maximum Operating Temperature 85°C | ||
Switch Contact Current 400 mA | ||
Standards/Approvals RoHS, UR | ||
C & K TP Series
GP Series Tiny Pushbutton Switches from C & K. Applications include telecommunications, network equipment, computer equipment and instrumentation
Sealed epoxy terminals compatible with bottom wash cleaning
Electrical life: 60000 cycles at full load
