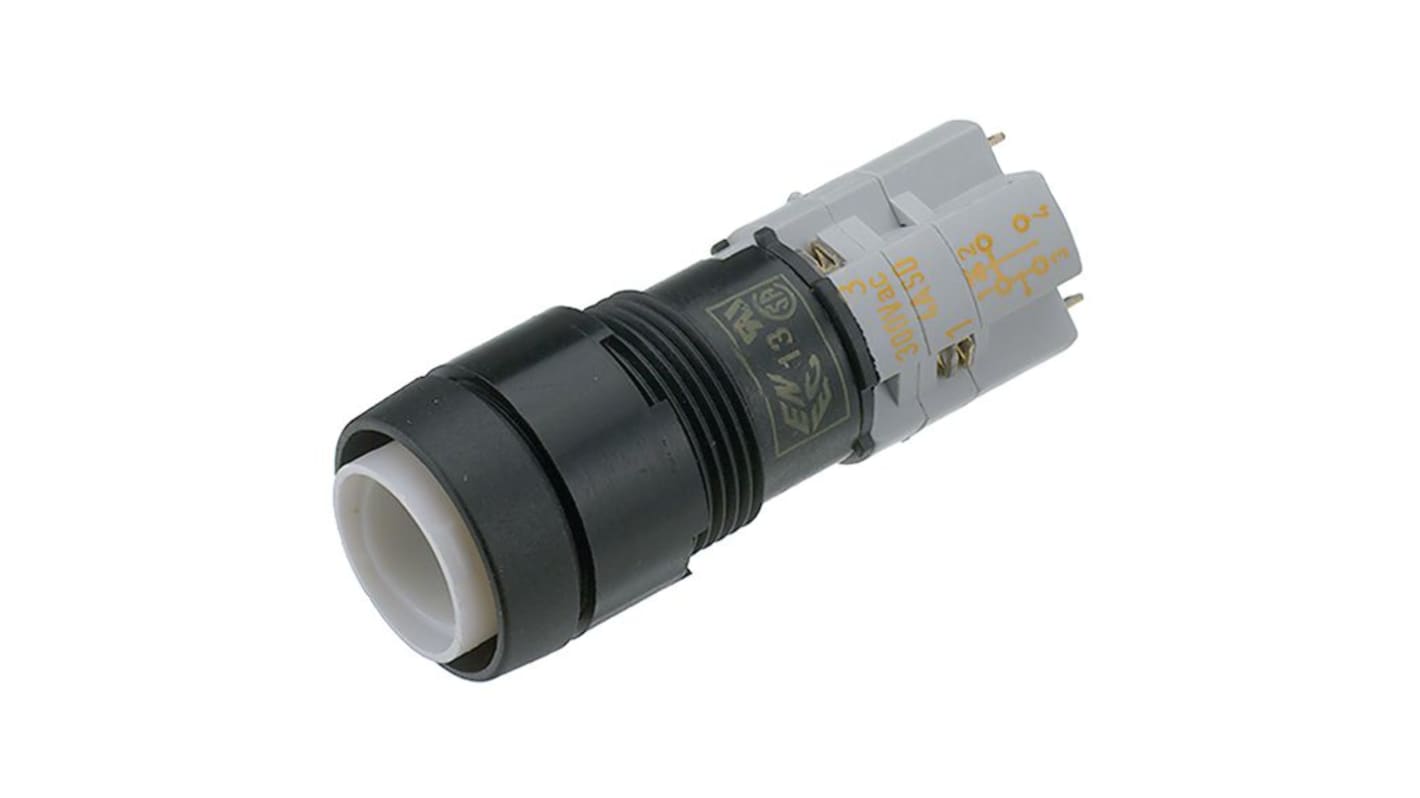

RAFI 1.15.108 Series Illuminated Push Button Switch, Momentary, Panel, 16.2 mm Cutout, 1 NO/1 NC, IP40
- RS Stock No.:
- 289-0458
- Distrelec Article No.:
- 135-58-772
- Mfr. Part No.:
- 1.15.108.451/0000
- Brand:
- RAFI
Subtotal (1 unit)*
£21.42
(exc. VAT)
£25.70
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £21.42 |
*price indicative
- RS Stock No.:
- 289-0458
- Distrelec Article No.:
- 135-58-772
- Mfr. Part No.:
- 1.15.108.451/0000
- Brand:
- RAFI
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RAFI | |
| Product Type | Push Button Switch | |
| Switch Operation | Momentary | |
| Illuminated | Yes | |
| Series | 1.15.108 | |
| Panel Cutout Size | 16.2 mm | |
| Mount Type | Panel | |
| Contact Configuration | 1 NO/1 NC | |
| IP Rating | IP40 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | RoHS | |
| Length | 52mm | |
| Select all | ||
|---|---|---|
Brand RAFI | ||
Product Type Push Button Switch | ||
Switch Operation Momentary | ||
Illuminated Yes | ||
Series 1.15.108 | ||
Panel Cutout Size 16.2 mm | ||
Mount Type Panel | ||
Contact Configuration 1 NO/1 NC | ||
IP Rating IP40 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals RoHS | ||
Length 52mm | ||
- COO (Country of Origin):
- DE
The Illuminated Pushbutton Switch offers a momentary function with a configuration of 1 Normally Open and 1 Normally Closed contact. It is designed to handle both 250 VAC and 230 VDC applications. Equipped with an LED, it provides clear illumination for visual indication.
IP40 degree protection
RoHS compliant
