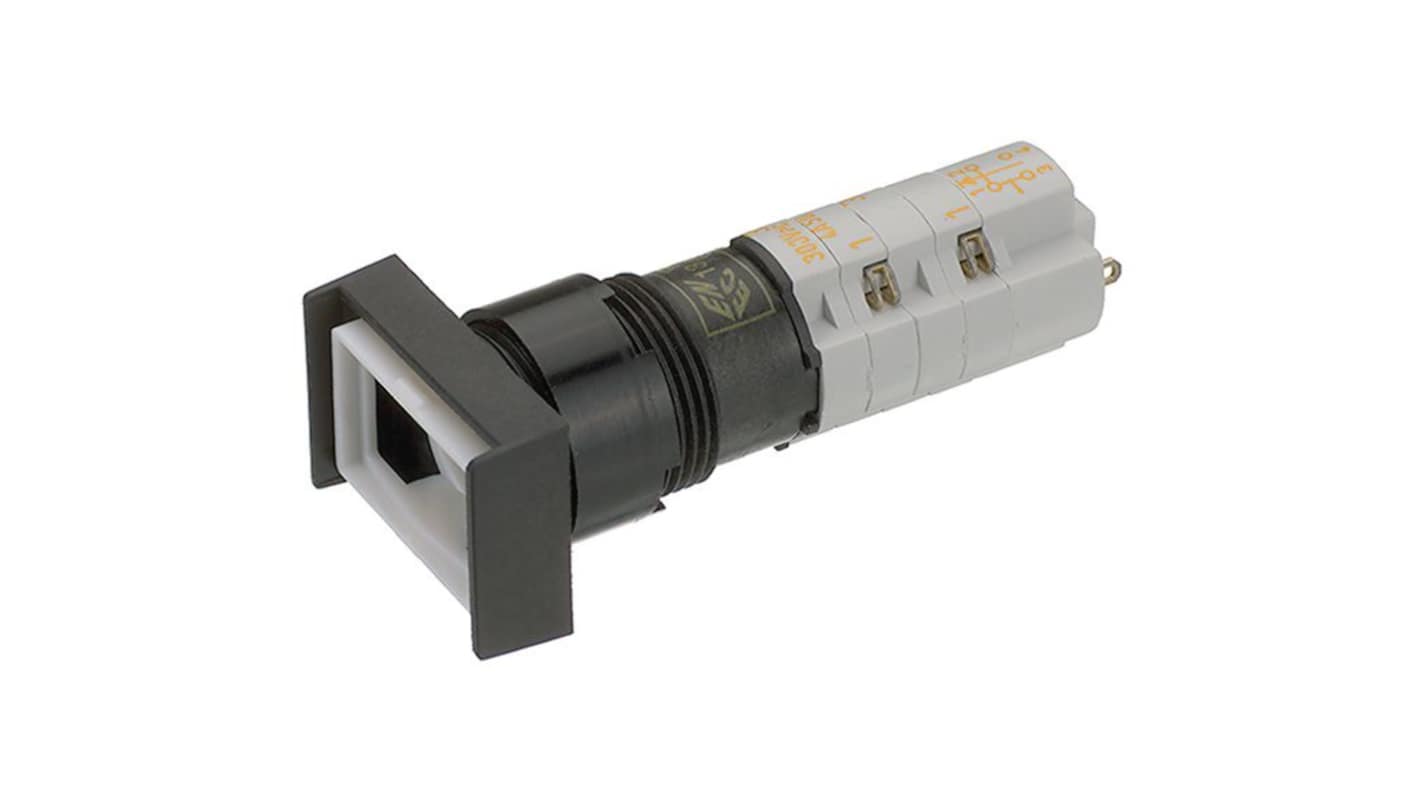

RAFI LUMOTAST 75 Series Illuminated Illuminated Push Button Switch, Latching, Through Hole, 16.2mm Cutout, 1 NC + 1 NO,
- RS Stock No.:
- 523-563
- Mfr. Part No.:
- 1.15.108.151/0000
- Brand:
- RAFI
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 523-563
- Mfr. Part No.:
- 1.15.108.151/0000
- Brand:
- RAFI
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RAFI | |
Switch Operation | Latching | |
Illuminated | Yes | |
Panel Cut Out Diameter | 16.2mm | |
Series | LUMOTAST 75 | |
Mounting Type | Through Hole | |
Push Button Colour | Black | |
Contact Configuration | 1 NC + 1 NO | |
Voltage Rating | 230V | |
IP Rating | IP40 | |
Manufacturer Part No. | 1.15.108.151/0000 | |
Select all | ||
---|---|---|
Brand RAFI | ||
Switch Operation Latching | ||
Illuminated Yes | ||
Panel Cut Out Diameter 16.2mm | ||
Series LUMOTAST 75 | ||
Mounting Type Through Hole | ||
Push Button Colour Black | ||
Contact Configuration 1 NC + 1 NO | ||
Voltage Rating 230V | ||
IP Rating IP40 | ||
Manufacturer Part No. 1.15.108.151/0000 | ||
- COO (Country of Origin):
- HU
The RAFI illuminated pushbutton and signal lamps have been in use for decades. They are the most successful monoswitches in RAFI history. The wide range of collar shapes in classic design and the established terminal and leg ending concept make the LUMOTAST 75 series one of your most reliable components. Key lock switches compatible with the design are also available. The basic LUMOTAST 75 model complies with IP 40 protection class according to DIN. Lens covers and diffusing discs must be ordered separately.
Mounting hole diameter 16.2 mm
3 collar shapes also rectangular
20 different actuating and indicator elements
Key lock switch with 2 switching positions in compatible design round and rectangular
3 collar shapes also rectangular
20 different actuating and indicator elements
Key lock switch with 2 switching positions in compatible design round and rectangular
