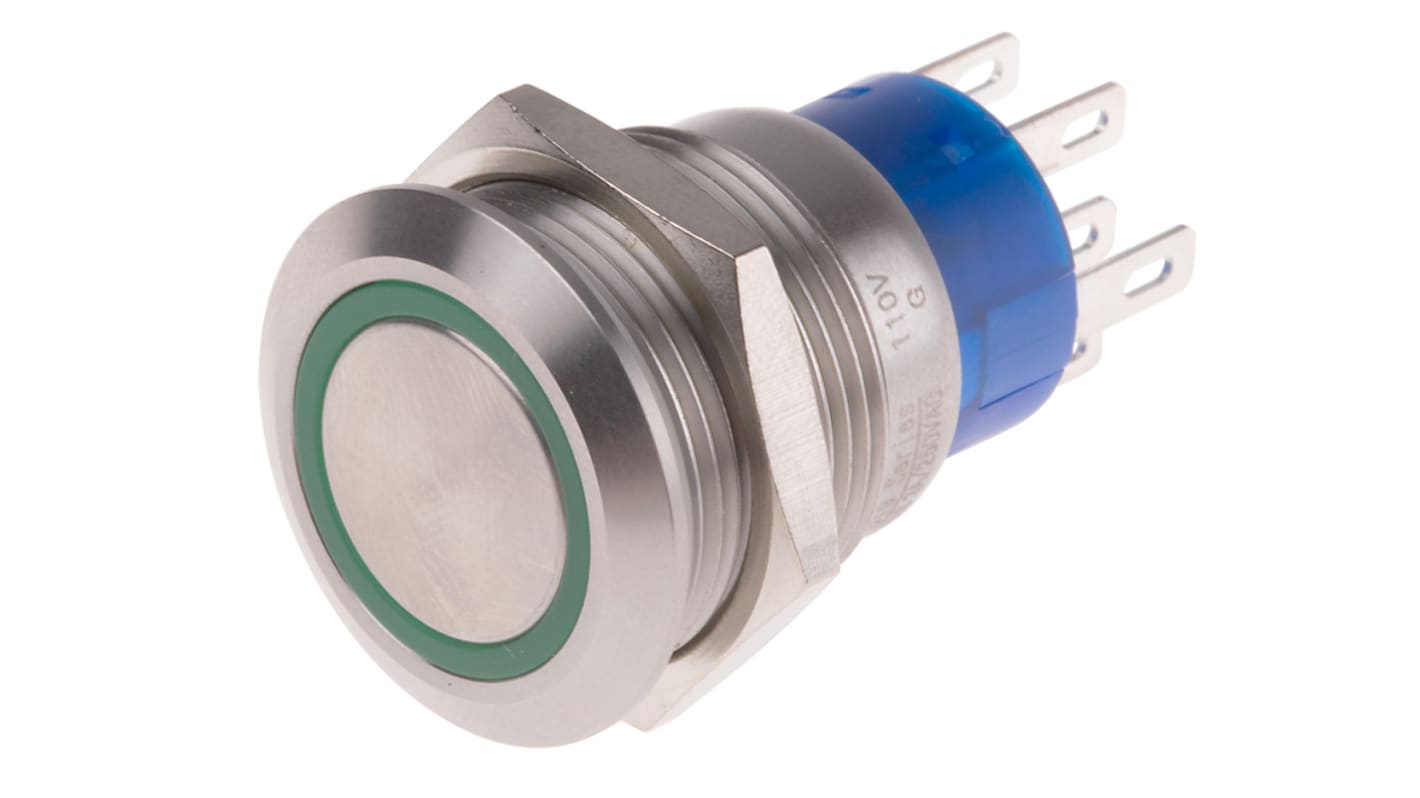

RS PRO Illuminated Push Button Switch, Momentary, Panel Mount, 19.2mm Cutout, DPDT, Green LED, 110V, IP67
- RS Stock No.:
- 111-5810
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£16.04
(exc. VAT)
£19.25
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 25 unit(s) ready to ship
- Plus 40 unit(s) shipping from 04 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £16.04 |
5 - 9 | £15.56 |
10 - 24 | £15.07 |
25 - 49 | £14.27 |
50 + | £13.15 |
*price indicative
- RS Stock No.:
- 111-5810
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Switch Operation | Momentary | |
Illuminated | Yes | |
Panel Cut Out Diameter | 19.2mm | |
Mounting Type | Panel Mount | |
Push Button Colour | Silver | |
Contact Configuration | DPDT | |
Voltage Rating | 110V | |
Push Button Style | Round | |
LED Colour | Green | |
IP Rating | IP67 | |
Contact Current Rating | 5 A | |
Contact Material | Copper | |
Contact AC Voltage Rating | 250V | |
Case Colour | Natural | |
Terminal Type | Solder Pin | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Switch Operation Momentary | ||
Illuminated Yes | ||
Panel Cut Out Diameter 19.2mm | ||
Mounting Type Panel Mount | ||
Push Button Colour Silver | ||
Contact Configuration DPDT | ||
Voltage Rating 110V | ||
Push Button Style Round | ||
LED Colour Green | ||
IP Rating IP67 | ||
Contact Current Rating 5 A | ||
Contact Material Copper | ||
Contact AC Voltage Rating 250V | ||
Case Colour Natural | ||
Terminal Type Solder Pin | ||
- COO (Country of Origin):
- CN
RS PRO Stainless Steel DPDT Momentary Push Button
These RS PRO stainless-steel push-button range have been tested by engineers for durability and consistency they feature a sturdy stainless-steel construction which also resists corrosion. It features a blue illuminated LED. With IP65 and 67 ratings, it's dust-tight and water-resistant.
Features and Benefits
- IP67 rated
- Short design, allowing installation into space - restricted applications
- Silver plated copper contacts, for a firm connection
Applications
- Medical equipment
- Industrial control gear
- Communications equipment
- Premium hobbyist switching
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards theyre only given the RS PRO seal of approval if were confident of their exceptional quality, which means you can be confident too.
