RS PRO Illuminated Push Button Switch, Momentary, Panel, 19.2 mm Cutout, DPDT, Yellow LED, IP67, 12 V dc 250 V ac

RS Stock No.:: 111-3886
Brand:: RS PRO

RS PRO Illuminated Push Button Switch, Momentary, Panel, 19.2 mm Cutout, DPDT, Yellow LED, IP67, 12 V dc 250 V ac

Bulk discount available

Subtotal (1 unit)*

£15.03

(exc. VAT)

£18.04

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

Plus 48 unit(s) shipping from 16 March 2026
Plus 27 unit(s) shipping from 16 March 2026
Plus 40 unit(s) shipping from 10 August 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£15.03
5 - 9	£14.57
10 - 24	£14.12
25 - 49	£13.37
50 +	£12.32

*price indicative

RS Stock No.:: 111-3886
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Actuator Colour	Silver
	Product Type	Push Button Switch
	Switch Operation	Momentary
	Illuminated	Yes
	Panel Cutout Size	19.2 mm
	Mount Type	Panel
	Contact Configuration	DPDT
	Terminal Type	Solder
	LED Colour	Yellow
	IP Rating	IP67
	Contact AC Voltage	250V ac
	Minimum Operating Temperature	-20°C
	Contact DC Voltage	12V dc
	Actuator Style	Round
	Maximum Operating Temperature	55°C
	Switch Configuration	2 NO/2 NC
	Switch Contact Current	5 A
	Standards/Approvals	UL 94-V0, UL 94-V2

	Select all
	Brand RS PRO
	Actuator Colour Silver
	Product Type Push Button Switch
	Switch Operation Momentary
	Illuminated Yes
	Panel Cutout Size 19.2 mm
	Mount Type Panel
	Contact Configuration DPDT
	Terminal Type Solder
	LED Colour Yellow
	IP Rating IP67
	Contact AC Voltage 250V ac
	Minimum Operating Temperature -20°C
	Contact DC Voltage 12V dc
	Actuator Style Round
	Maximum Operating Temperature 55°C
	Switch Configuration 2 NO/2 NC
	Switch Contact Current 5 A
	Standards/Approvals UL 94-V0, UL 94-V2

COO (Country of Origin):: CN

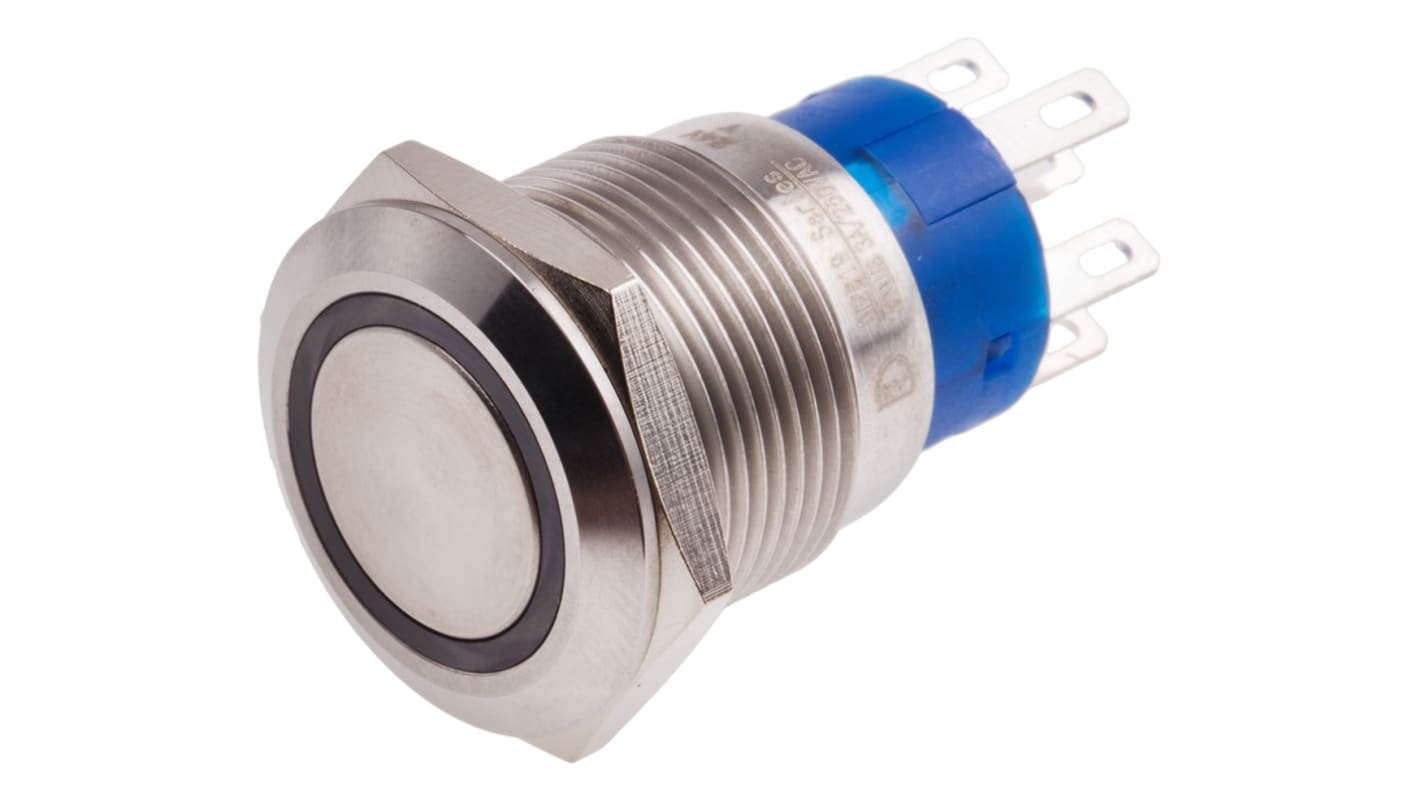

RS PRO Stainless Steel DPDT Momentary Push Button

These RS PRO stainless-steel push-button range have been tested by engineers for durability and consistency they feature a sturdy stainless-steel construction which also resists corrosion. It features a blue illuminated LED. With IP65 and 67 ratings, it's dust-tight and water-resistant.

Features and Benefits

IP67 rated

Short design, allowing installation into space - restricted applications

Silver plated copper contacts, for a firm connection

Applications

Medical equipment

Industrial control gear

Communications equipment

Premium hobbyist switching
