RS PRO Illuminated Push Button Switch, Momentary, Panel, 19.2 mm Cutout, DPDT, White LED, IP67, 12 V 250 V

View all Push Button Switches
Bulk discount available

Subtotal (1 unit)*

£15.67

(exc. VAT)

£18.80

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 186 unit(s) ready to ship
  • Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£15.67
5 - 9£15.19
10 - 24£14.73
25 - 49£13.95
50 +£12.84

*price indicative

RS Stock No.:
111-5790
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

Push Button Switch

Actuator Colour

Silver

Switch Operation

Momentary

Illuminated

Yes

Panel Cutout Size

19.2 mm

Mount Type

Panel

Contact Configuration

DPDT

Terminal Type

Solder Pin

LED Colour

White

IP Rating

IP67

Minimum Operating Temperature

-20°C

Actuator Style

Round

Contact DC Voltage

12V

Contact AC Voltage

250V

Maximum Operating Temperature

55°C

Switch Contact Current

5 A

Standards/Approvals

No

COO (Country of Origin):
CN

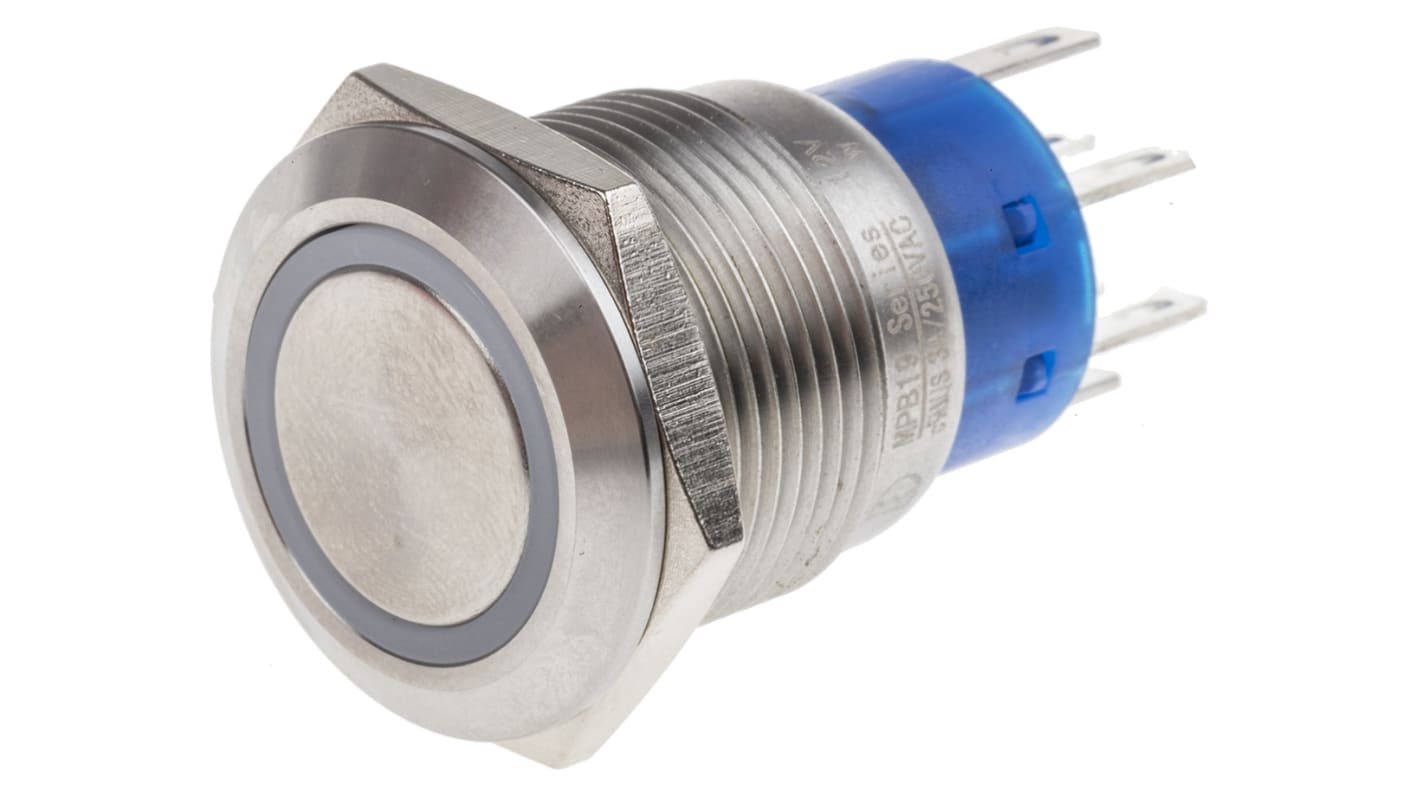

RS PRO Double Pole Double Throw (DPDT) Momentary White LED Push Button Switch, IP67, 19.2 mm (Dia.), Panel Mounting, 250 V AC


This RS PRO push button is an easy and intuitive way to connect a circuit. Its compact panel mounting design makes it useful for circuits with limited space inside, where conventional switches wouldn't fit.

This is a momentary switch so it needs to be pushed down to be used. It's springloaded to return to its resting state when not being pressed. The bright white LED ring makes it easy to see at a glance whether it's connected. The DPDT (Double Pole Double Throw) configuration allows it to complete two different circuits simultaneously, controlling four separate output terminals.

The switch has a mechanical life of around 1,000,000 cycles, so it's a hardwearing piece of equipment. It's often used in medical or communications equipment or industrial control gear.

Features and Benefits


• Silver actuator colour

• Round actuator shape

• Flat actuator type

• Natural case colour

• Contact voltage rating of 250 V AC

• Double Pole Double Throw (DPDT) contact configuration

• Contact current rating of 5 A

• Copper contact material

• Illuminated

• Illumination voltage of 12 V

• IP (Ingress Protection) rating of IP67

• White LED colour

• Panel mounting type

• Panel cut out size of 19.2 mm (diameter)

• Standards met include cULus Recognized E 187490, ENEC 18, IK10

• Momentary switch operation

• Solder pin terminal type
