Allen Bradley Pressure Sensor Gauge

  • RS Stock No. 136-5996
  • Mfr. Part No. 836P-D2GFGC80PA-D4
  • Brand Allen Bradley
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

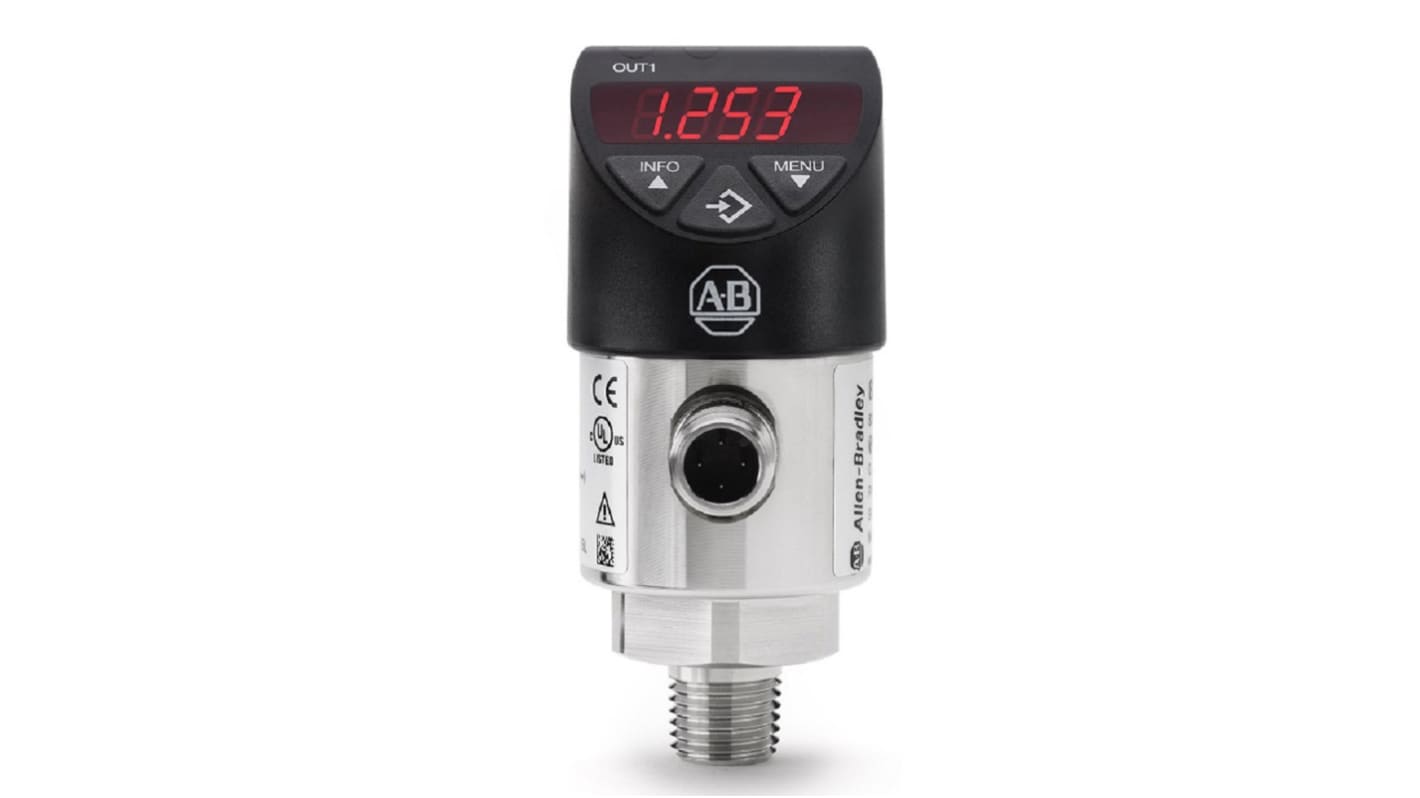

Allen Bradley 836P Solid-State IO-Link Pressure Sensor

Allen-Bradley 836P series solid-state pressure sensors are capable of measuring pressure of liquid or gases in a rugged, compact housing. The 836P sensors feature embedded IO-Link 1.1 communication protocol, which allows for easy integration while delivering data directly into a control system in an easy-to-use manner. With a rotatable housing (320°) and head (330°), the flexible 836P display model accommodates the most space-critical applications. And for even greater adjustability, the large visual LED display can be rotated 180º. Additional features include pressure ranges from -1...551 bar (-14.5 psi to 8000 psi), tactile push buttons for easy setup, and an IP67 enclosure rating. 836P sensors have dual PNP or one PNP + one 4 mA to 20 mA output configurations in gauge, absolute or vacuum pressure measurement types with a large selection of process connections.

Features and Benefits

Corrosion resistant 316L stainless steel sensing element Compact form factor
LED display
IP67 rated
Rotatable housing and head
Available in various process connections
IO-Link communication protocol

Specifications
Attribute Value
Pressure Reading Type Gauge
Minimum Pressure Reading 0bar
Maximum Pressure Reading 551.58bar
Accuracy ±1 %
Output Type Analogue, PNP
Media Measured Gas, Liquid, Steam
Process Connection G1/4
Electrical Connection 4-Pin M12 DC Micro Connector
Analogue Output 4 → 20 mA
Maximum Current 450 mA
Supply Voltage 15 → 35 V dc
Interface IO-Link
Housing Material Stainless Steel
IP Rating IP65, IP67
Minimum Pressure Setting 0bar
Series 836P
Minimum Operating Temperature -20°C
Maximum Operating Temperature +80°C
Mounting Type Vertical Mount
Maximum Pressure Setting 551.58bar
1 In stock for FREE next working day delivery
Price Each
£ 279.00
(exc. VAT)
£ 334.80
(inc. VAT)
Units
Per unit
1 +
£279.00
