Allen Bradley 836P Series Pressure Sensor, 0bar Min, 137.89bar Max, 4 → 20 mA, Analogue, PNP-NO/NC Output,

RS Stock No.:: 136-5993
Mfr. Part No.:: 836P-D2NFGC20PA-D4
Brand:: Allen Bradley

Allen Bradley 836P Series Pressure Sensor, 0bar Min, 137.89bar Max, 4 → 20 mA, Analogue, PNP-NO/NC Output,

Subtotal (1 unit)*

£395.69

(exc. VAT)

£474.83

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

Shipping from 12 December 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£395.69

*price indicative

RS Stock No.:: 136-5993
Mfr. Part No.:: 836P-D2NFGC20PA-D4
Brand:: Allen Bradley

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Allen Bradley
	Pressure Reading Type	Relative
	Minimum Pressure Reading	0bar
	Maximum Pressure Reading	137.89bar
	Accuracy	±1 %
	Output Type	4 → 20 mA, Analogue, PNP-NO/NC
	Media Measured	Gas, Liquid, Steam
	Process Connection	NPT 1/4
	Analogue Output	4 → 20 mA
	Electrical Connection	4-Pin M12 DC Micro Connector
	Communication Protocol	IO-LINK
	Series	836P
	Maximum Current	450 mA
	Supply Voltage	15 → 35 V dc
	Interface	IO-Link
	Housing Material	Stainless Steel
	Minimum Operating Temperature	-20°C
	Mounting Type	Vertical Mount
	IP Rating	IP65, IP67
	Maximum Operating Temperature	+80°C

	Select all
	Brand Allen Bradley
	Pressure Reading Type Relative
	Minimum Pressure Reading 0bar
	Maximum Pressure Reading 137.89bar
	Accuracy ±1 %
	Output Type 4 → 20 mA, Analogue, PNP-NO/NC
	Media Measured Gas, Liquid, Steam
	Process Connection NPT 1/4
	Analogue Output 4 → 20 mA
	Electrical Connection 4-Pin M12 DC Micro Connector
	Communication Protocol IO-LINK
	Series 836P
	Maximum Current 450 mA
	Supply Voltage 15 → 35 V dc
	Interface IO-Link
	Housing Material Stainless Steel
	Minimum Operating Temperature -20°C
	Mounting Type Vertical Mount
	IP Rating IP65, IP67
	Maximum Operating Temperature +80°C

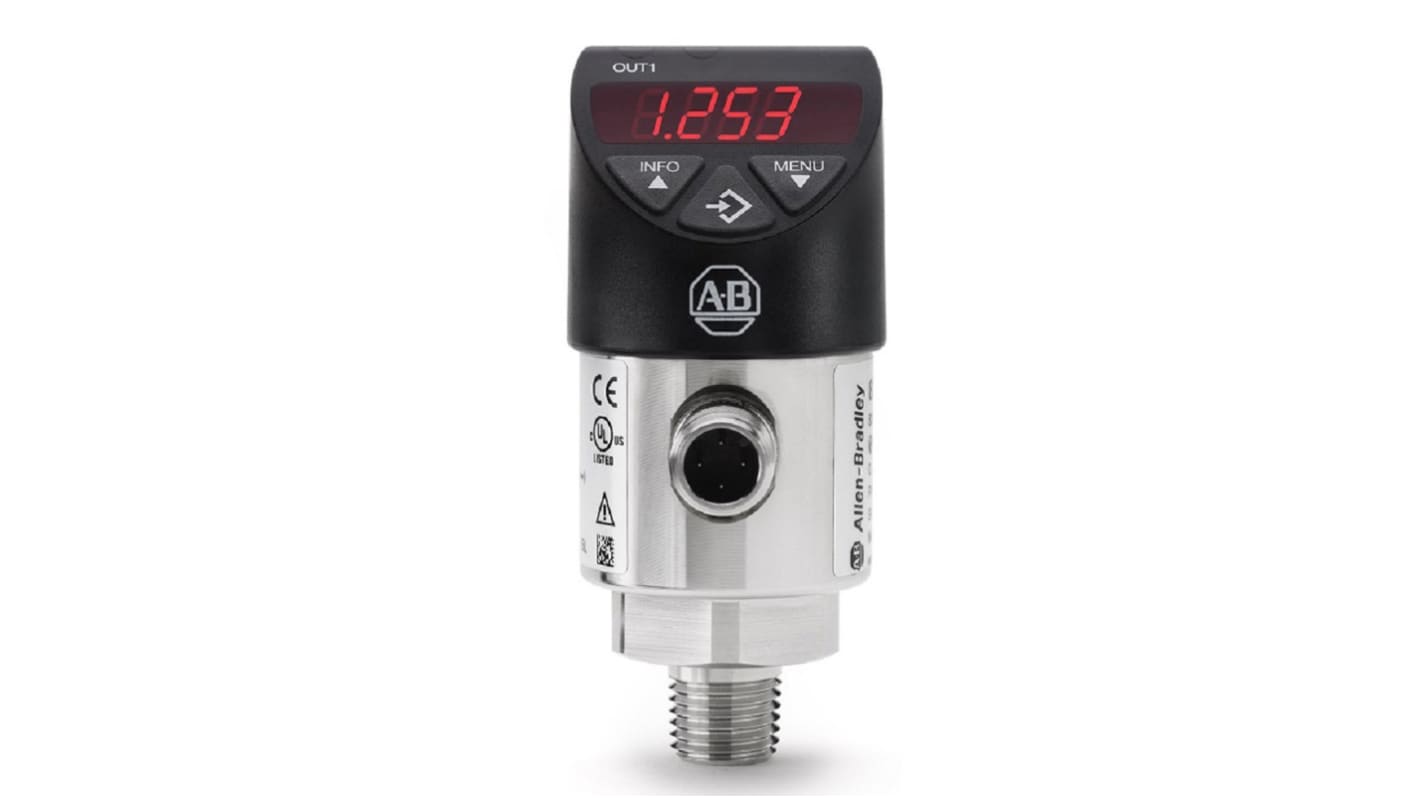

Allen Bradley 836P Solid-State IO-Link Pressure Sensor

Allen-Bradley 836P series solid-state pressure sensors are capable of measuring pressure of liquid or gases in a rugged, compact housing. The 836P sensors feature embedded IO-Link 1.1 communication protocol, which allows for easy integration while delivering data directly into a control system in an easy-to-use manner.

With a rotatable housing (320°) and head (330°), the flexible 836P display model accommodates the most space-critical applications. And for even greater adjustability, the large visual LED display can be rotated 180º. Additional features include pressure ranges from -1...551 bar (-14.5 psi to 8000 psi), tactile push buttons for easy setup, and an IP67 enclosure rating. 836P sensors have dual PNP or one PNP + one 4 mA to 20 mA output configurations in gauge, absolute or vacuum pressure measurement types with a large selection of process connections.

Features and Benefits

Corrosion resistant 316L stainless steel sensing element

Compact form factor

LED display

IP67 rated

Rotatable housing and head

Available in various process connections

IO-Link communication protocol

Allen Bradley Pressure Sensor, 0 to 137.89 Bar Operating Pressure Range, ±1% Reading Accuracy - 836P-D2NFGC20PA-D4

Reliably track the fluid pressure in your industrial system with this pressure sensor from Rockwell Automation's Allen Bradley range. Integrated IO-Link connectivity lets you review the unit's readings from your control system for convenient analysis. With its wide operating pressure range between 0 and 137.89 bar, it gives you effective monitoring in high-pressure applications. So you can be sure of its reliability, this pressure sensor has an IP67 rating, indicating full protection against dust and short-term immersion in shallow water.

Features & Benefits

• Reading accuracy of ±1% for precise measurements every time
• Works with liquids, gases and steam for versatility
• Service life of 100 million cycles means you can be sure the component's long-lasting
• Broad operating temperature range between -20°C and +80°C for use in tough industrial environments
• Maximum current consumption of 450mA to minimise energy use

Standards and Certifications

• CE-marked
• UKCA-approved
• EN 61326

How often does this pressure sensor take readings from my system?

This sensor has a short cycle time of 3ms, meaning it frequently measures the pressure of your system's fluids to achieve efficient readings.
