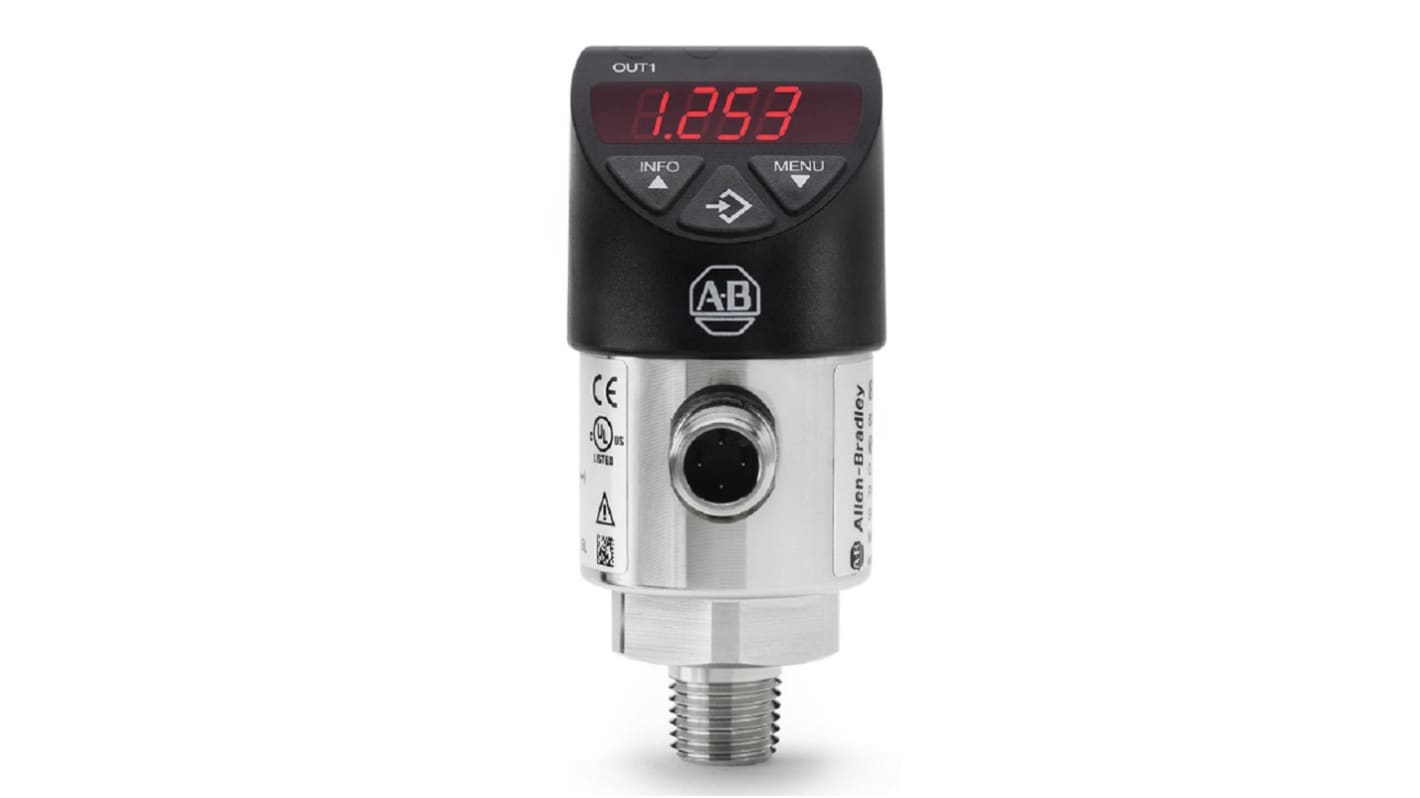

Allen Bradley 836P Series Pressure Sensor, 0bar Min, 25bar Max, 4 → 20 mA, Analogue, PNP-NO/NC Output, Relative

RS Stock No.:: 136-5980
Mfr. Part No.:: 836P-D2GMGB36PA-D4
Brand:: Allen Bradley

Allen Bradley 836P Series Pressure Sensor, 0bar Min, 25bar Max, 4 → 20 mA, Analogue, PNP-NO/NC Output, Relative

Price Each**

£385.63

(exc. VAT)

£462.76

(inc. VAT)

Available to back order for despatch 06/03/2025*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Units	Per unit
1 +	£385.63

**price indicative

RS Stock No.:: 136-5980
Mfr. Part No.:: 836P-D2GMGB36PA-D4
Brand:: Allen Bradley

Allen Bradley 836P Solid-State IO-Link Pressure Sensor

Allen-Bradley 836P series solid-state pressure sensors are capable of measuring pressure of liquid or gases in a rugged, compact housing. The 836P sensors feature embedded IO-Link 1.1 communication protocol, which allows for easy integration while delivering data directly into a control system in an easy-to-use manner.

With a rotatable housing (320°) and head (330°), the flexible 836P display model accommodates the most space-critical applications. And for even greater adjustability, the large visual LED display can be rotated 180º. Additional features include pressure ranges from -1...551 bar (-14.5 psi to 8000 psi), tactile push buttons for easy setup, and an IP67 enclosure rating. 836P sensors have dual PNP or one PNP + one 4 mA to 20 mA output configurations in gauge, absolute or vacuum pressure measurement types with a large selection of process connections.

Features and Benefits

Corrosion resistant 316L stainless steel sensing element

Compact form factor

LED display

IP67 rated

Rotatable housing and head

Available in various process connections

IO-Link communication protocol

Allen Bradley Pressure Sensor, G1/4 Thread, 100 Million Cycles Service Life - 836P-D2GMGB36PA-D4

Use this pressure sensor from Rockwell Automation's Allen Bradley range to detect changes in the pressure level of liquid and gas in your industrial equipment. Thanks to the integrated IO-Link protocol, it's easy to connect the device to your existing control system and achieve quick signal transmissions. As it's rotatable, you can adjust the body up to 320° and the head up to 330° for flexibility in your setup. A broad operating temperature range between -20°C and +80°C means this is a safe option to use in challenging environments.

Features & Benefits

• Menu button for convenient system configuration
• Pressure reading range between 0 and 25 bar for versatile operation
• Mechanical service life of 100 million switching cycles for durable performance
• Built-in G1/4 threaded connection for hassle-free mounting
• IP65 and IP67 ratings mean it's protected against dust, low-pressure jets of water and immersion up to 1m

Standards and Certifications

• CE
• EMC
• cULus
• EN 61326
• RoHs

Will this pressure sensor work in vibrating conditions?

Yes, this pressure can withstand vibrating conditions. It's resistant to shock and vibration, so stays steady and delivers accurate results in demanding operations.

Attribute	Value
Pressure Reading Type	Relative
Minimum Pressure Reading	0bar
Maximum Pressure Reading	25bar
Accuracy	±1 %
Output Type	4 → 20 mA, Analogue, PNP-NO/NC
Media Measured	Gas, Liquid, Steam
Process Connection	G1/4
Analogue Output	4 → 20 mA
Electrical Connection	4-Pin M12 DC Micro Connector
Communication Protocol	IO-LINK
Series	836P
Maximum Current	450 mA
Supply Voltage	15 → 35 V dc
Interface	IO-Link
Housing Material	Stainless Steel
Maximum Operating Temperature	+80°C
IP Rating	IP65, IP67
Mounting Type	Vertical Mount
Minimum Operating Temperature	-20°C
