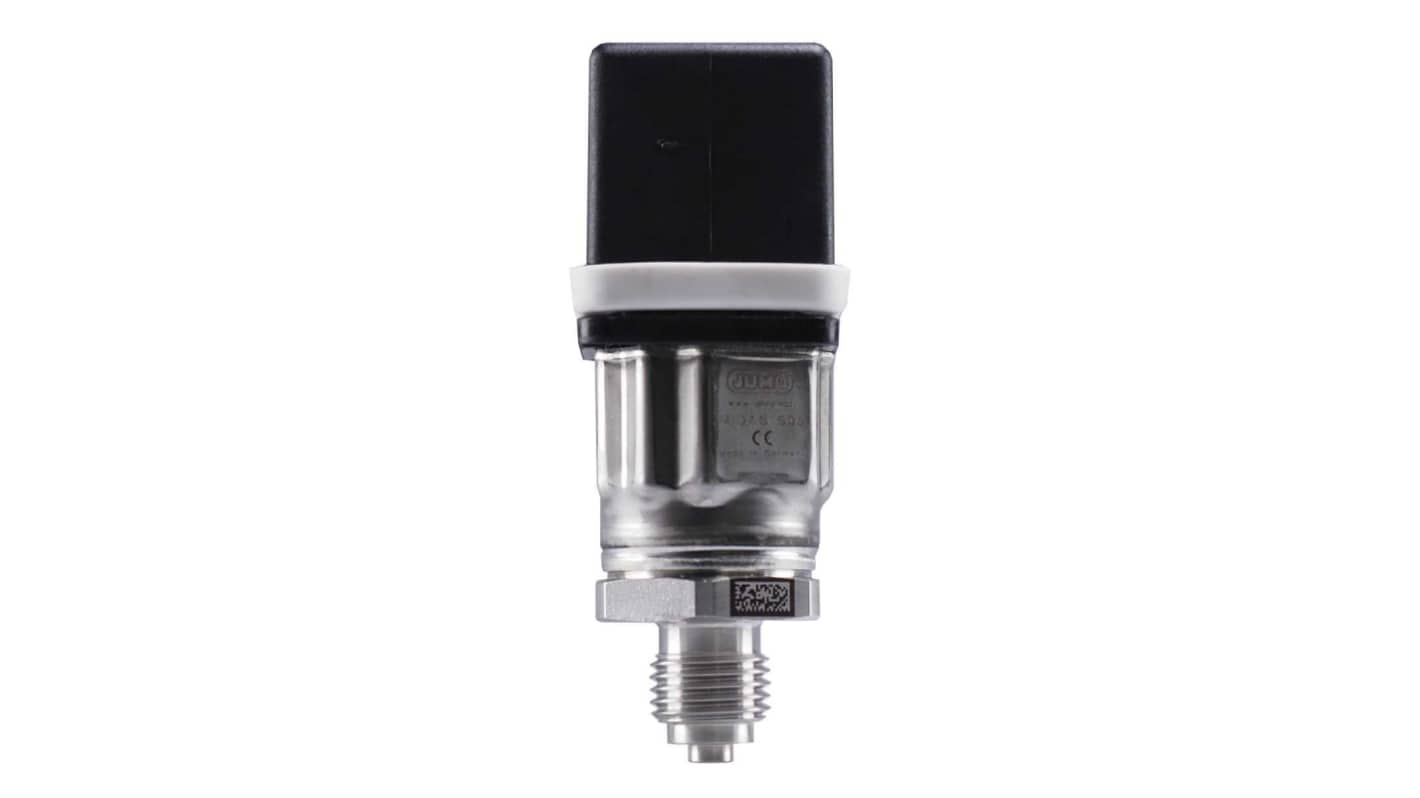

Jumo 401010 Series Pressure Transmitter, Analogue Output 0 bar 2.5 bar, Differential Reading
- RS Stock No.:
- 279-599
- Mfr. Part No.:
- 401010/000-456-405-502-20-61 000
- Brand:
- Jumo
Subtotal (1 unit)*
£228.17
(exc. VAT)
£273.80
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 05 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £228.17 |
*price indicative
- RS Stock No.:
- 279-599
- Mfr. Part No.:
- 401010/000-456-405-502-20-61 000
- Brand:
- Jumo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Jumo | |
| Product Type | Pressure Transmitter | |
| Maximum Pressure Measurement | 2.5bar | |
| Pressure Reading Type | Differential | |
| Minimum Pressure Measurement | 0bar | |
| Accuracy | 0.5 % | |
| Output Type | Analogue | |
| Minimum Supply Voltage | 8V | |
| Response Time | 5ms | |
| Series | 401010 | |
| Maximum Supply Voltage | 30V | |
| Standards/Approvals | CAN/CSA-22.2 No. 61010-1, DIN 16086, DIN EN 60770, EAC, EN 60529, EN 61010-1, EN 61298-1, EN 61326-2-3, IEC 60068-2-27, IEC 60068-2-6, UL 61010-1, UL, TR TS 020/2011 | |
| Housing Material | Stainless Steel | |
| Maximum Operating Temperature | 125°C | |
| IP Rating | IP65 | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand Jumo | ||
Product Type Pressure Transmitter | ||
Maximum Pressure Measurement 2.5bar | ||
Pressure Reading Type Differential | ||
Minimum Pressure Measurement 0bar | ||
Accuracy 0.5 % | ||
Output Type Analogue | ||
Minimum Supply Voltage 8V | ||
Response Time 5ms | ||
Series 401010 | ||
Maximum Supply Voltage 30V | ||
Standards/Approvals CAN/CSA-22.2 No. 61010-1, DIN 16086, DIN EN 60770, EAC, EN 60529, EN 61010-1, EN 61298-1, EN 61326-2-3, IEC 60068-2-27, IEC 60068-2-6, UL 61010-1, UL, TR TS 020/2011 | ||
Housing Material Stainless Steel | ||
Maximum Operating Temperature 125°C | ||
IP Rating IP65 | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- DE
The Jumo MIDAS S05 Pressure Transmitter is available with relative pressure and absolute pressure measuring ranges. The used silicon sensor is resistant to extreme overloading and is capable of handling millions of pressure cycles. An almost fully automated production sequence reduces the production time and manufacturing costs. The piezo resistive silicon sensor has long term stability and a high level of overload protection. The full final inspection in the fully automated measuring and calibration facility guarantees that each pressure transmitter is of a high quality. The installation of the measuring instrument requires little work and the electrical installation is simple. The device has a nominal measuring range of 0 to 2.5 bar relative pressure and an 4 to 20 mA 2 wire output. The process connection is a G1/4 to DIN EN 837 in stainless steel. The electrical connection is via a terminal box according to DIN EN 175301-803, form A, ex DIN 43650.
Time saving
Simple and versatile
Optimum protection against process medium leakage
Fully welded measuring system made of high grade stainless steel
Modular structure that can be used universally in almost any application
