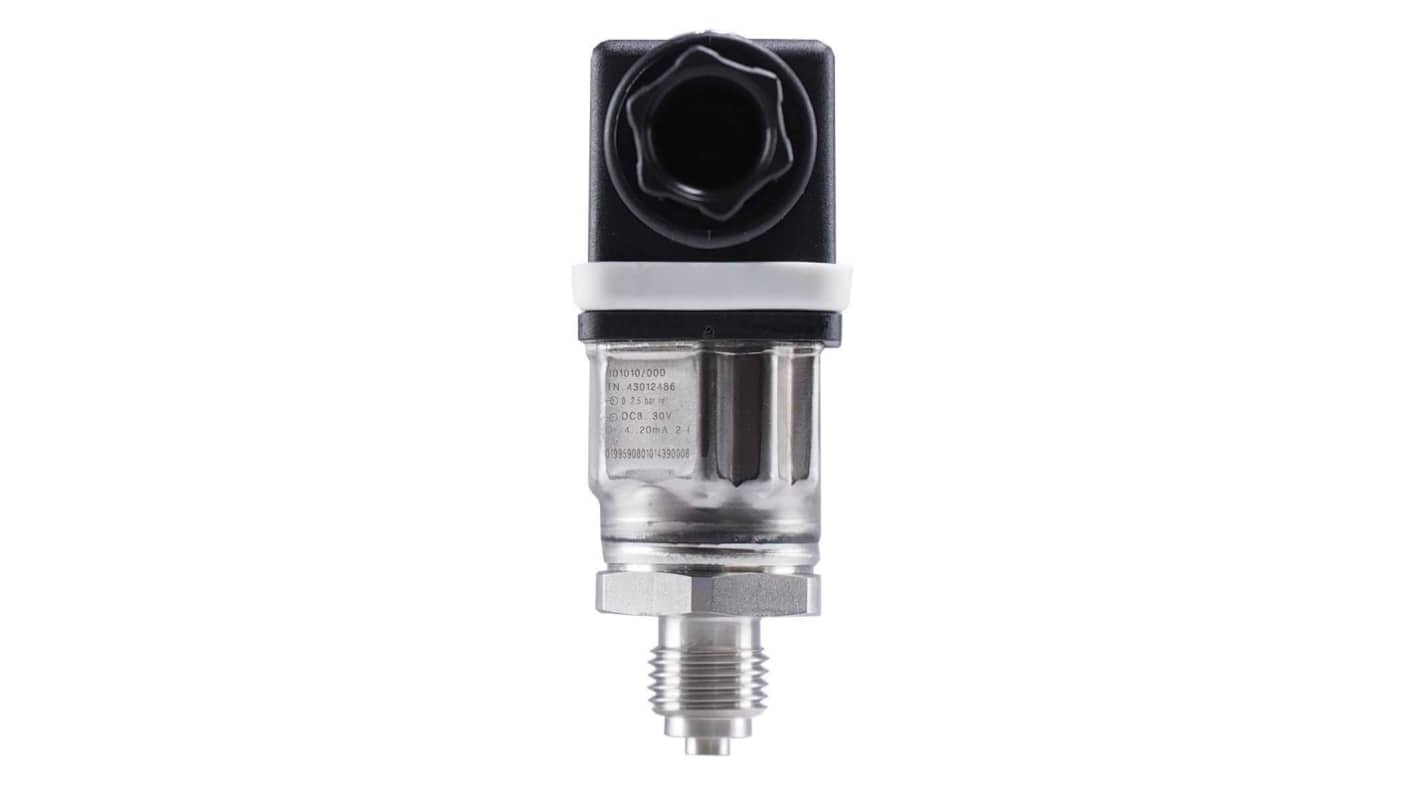

Jumo 401010 Series Pressure Transmitter, Analogue Output 0 bar 4 bar, Differential Reading
- RS Stock No.:
- 279-311
- Mfr. Part No.:
- 401010/000-491-405-502-20-61/000
- Brand:
- Jumo
Subtotal (1 unit)*
£228.17
(exc. VAT)
£273.80
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 04 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £228.17 |
*price indicative
- RS Stock No.:
- 279-311
- Mfr. Part No.:
- 401010/000-491-405-502-20-61/000
- Brand:
- Jumo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Jumo | |
| Pressure Reading Type | Differential | |
| Maximum Pressure Measurement | 4bar | |
| Product Type | Pressure Transmitter | |
| Minimum Pressure Measurement | 0bar | |
| Accuracy | 0.5 % | |
| Output Type | Analogue | |
| Response Time | 5ms | |
| Minimum Supply Voltage | 8V | |
| Maximum Supply Voltage | 30V | |
| Series | 401010 | |
| Standards/Approvals | IEC 60068-2-6, CAN/CSA-22.2 No. 61010-1, DIN 16086, DIN EN 60770, EAC, EN 60529, EN 61010-1, EN 61298-1, EN 61326-2-3, IEC 60068-2-27, TR TS 020/2011, UL, UL 61010-1 | |
| Housing Material | Stainless Steel | |
| Minimum Operating Temperature | -40°C | |
| IP Rating | IP65 | |
| Maximum Operating Temperature | 125°C | |
| Select all | ||
|---|---|---|
Brand Jumo | ||
Pressure Reading Type Differential | ||
Maximum Pressure Measurement 4bar | ||
Product Type Pressure Transmitter | ||
Minimum Pressure Measurement 0bar | ||
Accuracy 0.5 % | ||
Output Type Analogue | ||
Response Time 5ms | ||
Minimum Supply Voltage 8V | ||
Maximum Supply Voltage 30V | ||
Series 401010 | ||
Standards/Approvals IEC 60068-2-6, CAN/CSA-22.2 No. 61010-1, DIN 16086, DIN EN 60770, EAC, EN 60529, EN 61010-1, EN 61298-1, EN 61326-2-3, IEC 60068-2-27, TR TS 020/2011, UL, UL 61010-1 | ||
Housing Material Stainless Steel | ||
Minimum Operating Temperature -40°C | ||
IP Rating IP65 | ||
Maximum Operating Temperature 125°C | ||
- COO (Country of Origin):
- DE
The Jumo MIDAS S05 Pressure Transmitter is available with relative pressure and absolute pressure measuring ranges. The used silicon sensor is resistant to extreme overloading and is capable of handling millions of pressure cycles. The piezo resistive silicon sensor has long term stability and a high level of overload protection. The full final inspection in the fully automated measuring and calibration facility guarantees that each pressure transmitter is of a high quality. The installation of the measuring instrument requires little work and the electrical installation is simple. The modular structure means that it can be used universally in almost any application. The device has a nominal measuring range of 0 to 4 bar absolute pressure and an 4 to 20 mA 2 wire output. The process connection is a G1/4 to DIN EN 837 in stainless steel. The electrical connection is via a terminal box according to DIN EN 175301-803, form A, ex DIN 43650.
Time saving
Simple and versatile
Optimum protection against process medium leakage
Fully automated production sequence reduces the production time and manufacturing costs
Modular structure that can be used universally in almost any application
