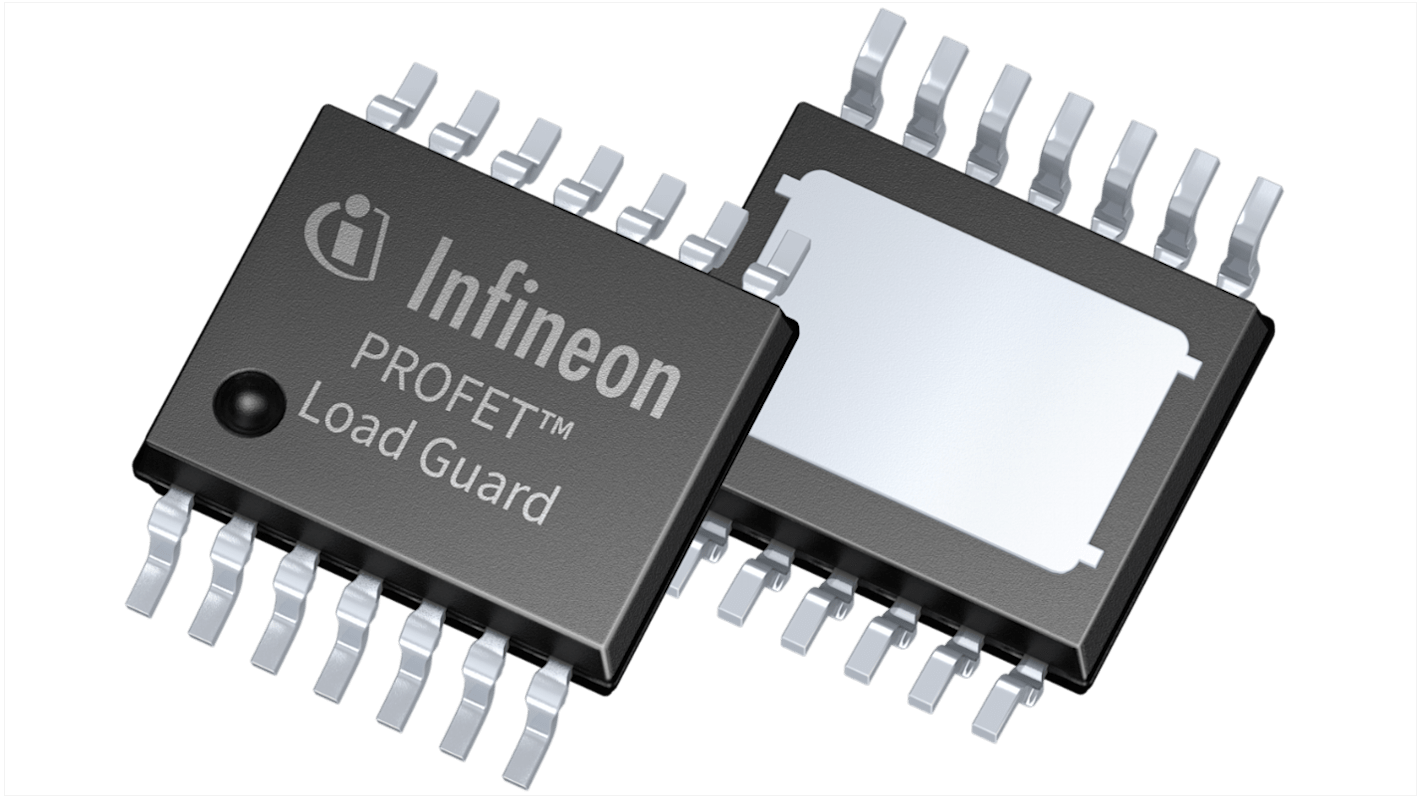

Infineon BTG70902EPLXUMA1, DualHigh Side, High Side Power Switch IC 14-Pin, PG-TSDSO-14
- RS Stock No.:
- 262-5827
- Mfr. Part No.:
- BTG70902EPLXUMA1
- Brand:
- Infineon
Subtotal (1 reel of 3000 units)*
£1,323.00
(exc. VAT)
£1,587.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 19 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
3000 + | £0.441 | £1,323.00 |
*price indicative
- RS Stock No.:
- 262-5827
- Mfr. Part No.:
- BTG70902EPLXUMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Infineon | |
Power Switch Type | High Side | |
Power Switch Topology | High Side | |
Number of Channels | 2 | |
Maximum Operating Supply Voltage | 28 V | |
Maximum Operating Current | 4.5mA | |
Package Type | PG-TSDSO-14 | |
Pin Count | 14 | |
Select all | ||
---|---|---|
Brand Infineon | ||
Power Switch Type High Side | ||
Power Switch Topology High Side | ||
Number of Channels 2 | ||
Maximum Operating Supply Voltage 28 V | ||
Maximum Operating Current 4.5mA | ||
Package Type PG-TSDSO-14 | ||
Pin Count 14 | ||
The Infineon smart high side switch, providing protection functions and enhanced diagnosis capabilities. It offers an adjustable current limitation to offer higher reliability for protecting the system. In case of an short circuit to ground the PCB traces, connectors, as well as loads, can be protected.
High-side switch with diagnosis and embedded protection
Switch ON capability while inverse current condition
Capacitive load switching mode
Green product, RoHS compliant
Switch ON capability while inverse current condition
Capacitive load switching mode
Green product, RoHS compliant
