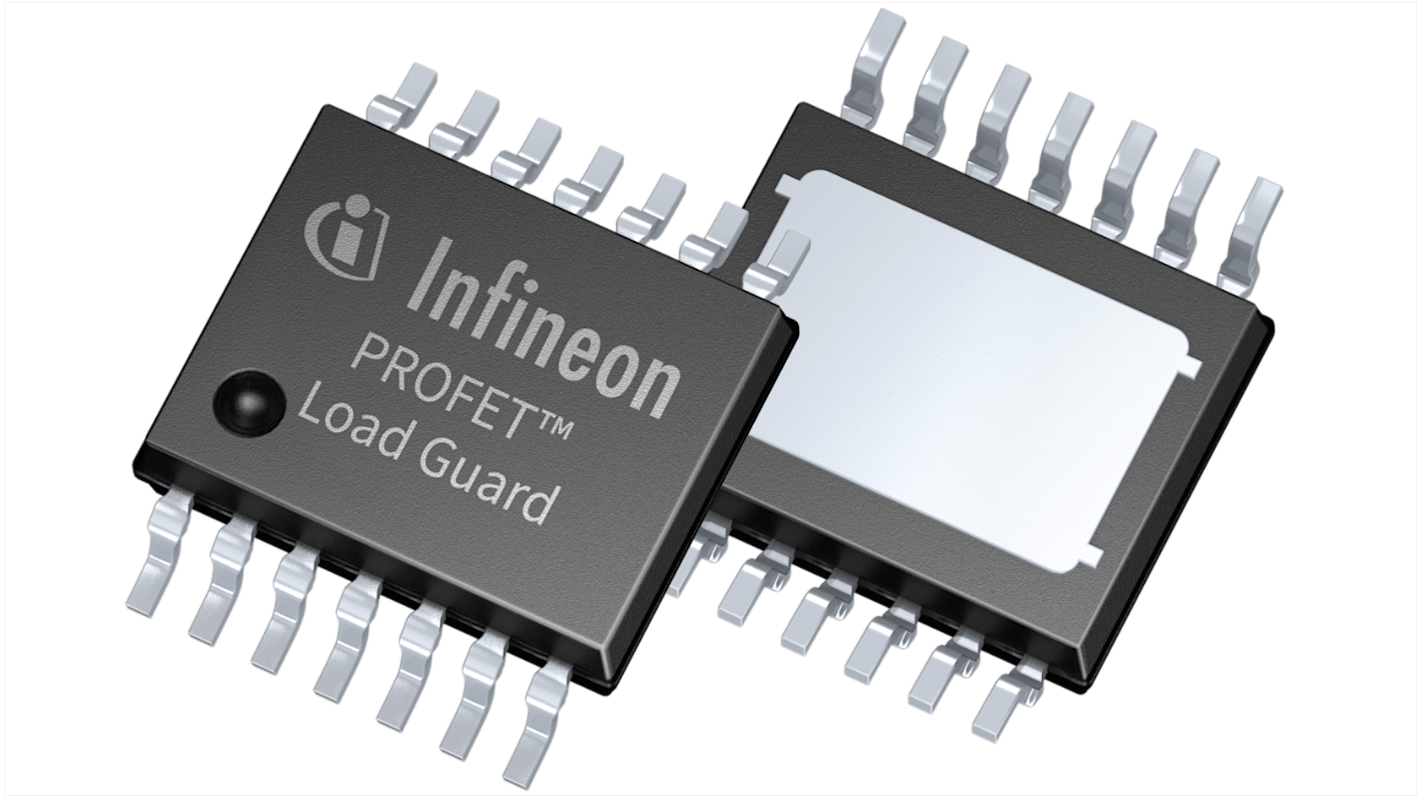

Infineon BTG70502EPLXUMA1, DualHigh Side, High Side Power Switch IC 14-Pin, PG-TSDSO-14
- RS Stock No.:
- 262-5823
- Mfr. Part No.:
- BTG70502EPLXUMA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 pack of 5 units)*
£9.30
(exc. VAT)
£11.15
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,700 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 - 20 | £1.86 | £9.30 |
25 - 45 | £1.582 | £7.91 |
50 - 120 | £1.47 | £7.35 |
125 - 245 | £1.376 | £6.88 |
250 + | £1.024 | £5.12 |
*price indicative
- RS Stock No.:
- 262-5823
- Mfr. Part No.:
- BTG70502EPLXUMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Infineon | |
Power Switch Topology | High Side | |
Power Switch Type | High Side | |
Number of Channels | 2 | |
Maximum Operating Supply Voltage | 28 V | |
Maximum Operating Current | 4.5mA | |
Package Type | PG-TSDSO-14 | |
Pin Count | 14 | |
Select all | ||
---|---|---|
Brand Infineon | ||
Power Switch Topology High Side | ||
Power Switch Type High Side | ||
Number of Channels 2 | ||
Maximum Operating Supply Voltage 28 V | ||
Maximum Operating Current 4.5mA | ||
Package Type PG-TSDSO-14 | ||
Pin Count 14 | ||
The Infineon smart high side switch, providing protection functions and enhanced diagnosis capabilities. It offers an adjustable current limitation to offer higher reliability for protecting the system. In case of an short circuit to ground the PCB traces, connectors, as well as loads, can be protected.
High-side switch with diagnosis and embedded protection
Switch ON capability while inverse current condition
Capacitive load switching mode
Green product, RoHS compliant
Switch ON capability while inverse current condition
Capacitive load switching mode
Green product, RoHS compliant
