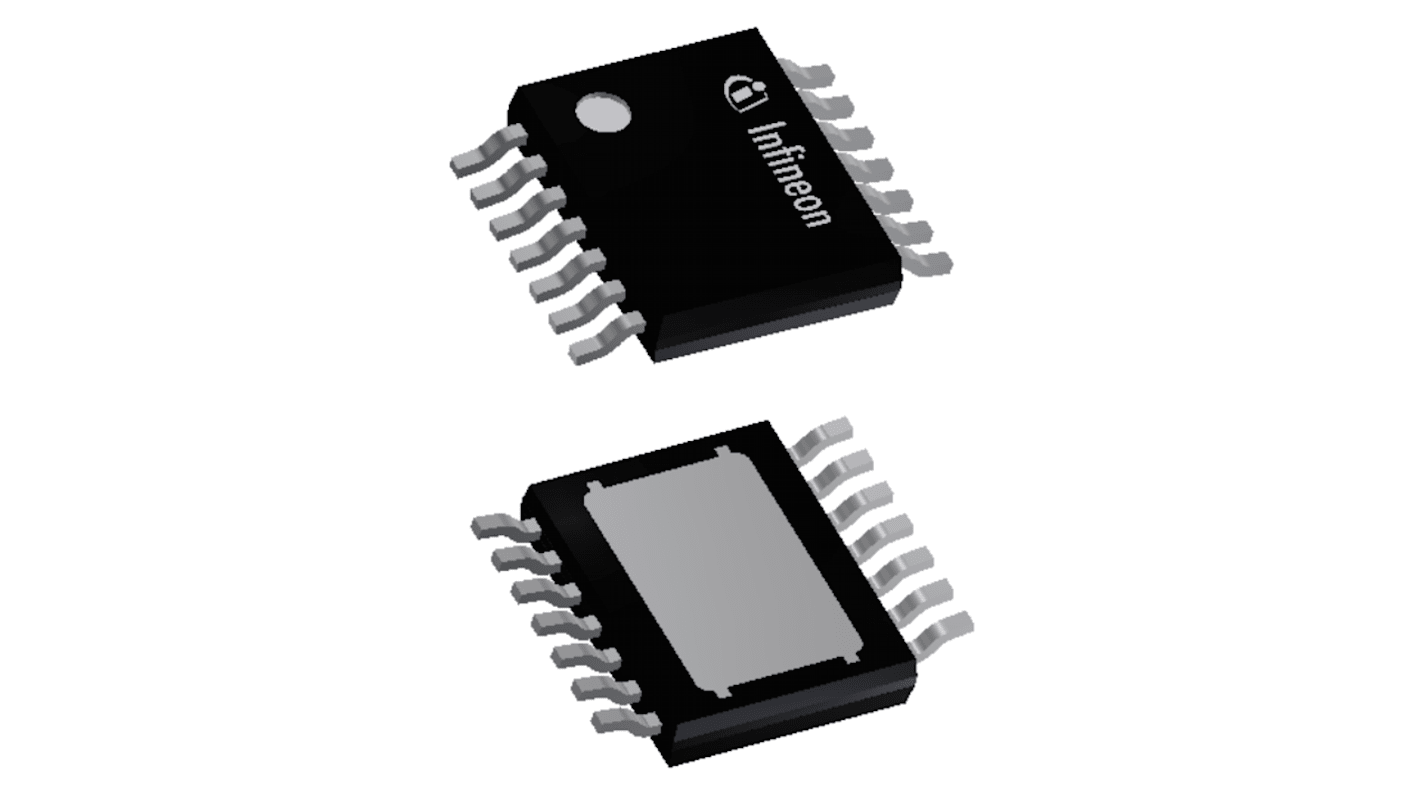

Infineon High Side Power Switch IC 14-Pin, PG-TSDSO-14

RS Stock No.:: 244-2884
Mfr. Part No.:: BTS70101EPAXUMA1
Brand:: Infineon

Infineon High Side Power Switch IC 14-Pin, PG-TSDSO-14

Subtotal (1 reel of 3000 units)*

£1,713.00

(exc. VAT)

£2,055.00

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

15,000 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Reel*
3000 +	£0.571	£1,713.00

*price indicative

RS Stock No.:: 244-2884
Mfr. Part No.:: BTS70101EPAXUMA1
Brand:: Infineon

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Product Type	Power Switch IC
	Power Switch Topology	High Side
	Switch On Resistance RdsOn	19.5mΩ
	Number of Outputs	3
	Interface Type	Wire
	Mount Type	Surface
	Package Type	PG-TSDSO-14
	Minimum Supply Voltage	-0.3V
	Maximum Supply Voltage	28V
	Pin Count	14
	Operating Current	4mA
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	150°C
	Height	0.95mm
	Standards/Approvals	RoHS
	Width	3.9 mm
	Length	4.9mm
	Series	BTS7010-1EPA
	Automotive Standard	AEC

	Select all
	Brand Infineon
	Product Type Power Switch IC
	Power Switch Topology High Side
	Switch On Resistance RdsOn 19.5mΩ
	Number of Outputs 3
	Interface Type Wire
	Mount Type Surface
	Package Type PG-TSDSO-14
	Minimum Supply Voltage -0.3V
	Maximum Supply Voltage 28V
	Pin Count 14
	Operating Current 4mA
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 150°C
	Height 0.95mm
	Standards/Approvals RoHS
	Width 3.9 mm
	Length 4.9mm
	Series BTS7010-1EPA
	Automotive Standard AEC

Datasheet - BTS70101EPAXUMA1

The Infineon BTS70101EPAXUMA1 suitable for resistive, inductive and capacitive loads. Its replaces electromechanical relays, fuses and discrete circuits also Driving capability suitable for 9 A loads and high inrush current loads such as H7 55W / Xenon 55W lamps or equivalent electronic loads (e.g. LED modules)

Absolute and dynamic temperature limitation with controlled restart

Overcurrent protection (tripping) with Intelligent Restart Control

Undervoltage shutdown

Overvoltage protection with external components
