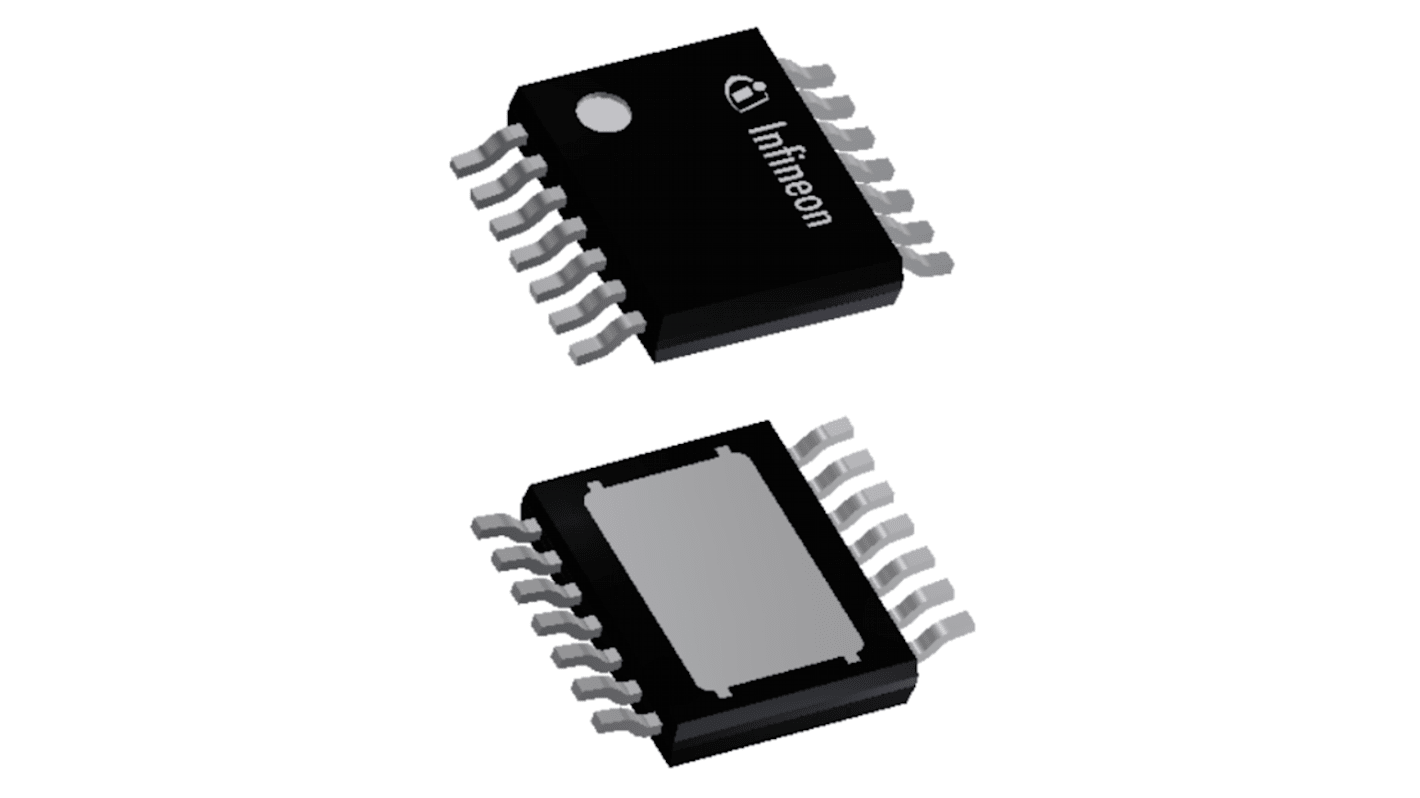

Infineon BTS70122EPAXUMA1 High Side, High Side Power Control Switch 14-Pin, PG-TSDSO-14
- RS Stock No.:
- 258-0757
- Mfr. Part No.:
- BTS70122EPAXUMA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 pack of 2 units)*
£2.90
(exc. VAT)
£3.48
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 18 | £1.45 | £2.90 |
| 20 - 48 | £1.275 | £2.55 |
| 50 - 98 | £1.185 | £2.37 |
| 100 - 198 | £1.115 | £2.23 |
| 200 + | £1.025 | £2.05 |
*price indicative
- RS Stock No.:
- 258-0757
- Mfr. Part No.:
- BTS70122EPAXUMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | Power Control Switch | |
| Power Switch Topology | High Side | |
| Power Switch Type | High Side | |
| Switch On Resistance RdsOn | 0.0215Ω | |
| Number of Outputs | 1 | |
| Package Type | PG-TSDSO-14 | |
| Minimum Supply Voltage | -0.3V | |
| Maximum Supply Voltage | 28V | |
| Pin Count | 14 | |
| Operating Current | 4mA | |
| Maximum Operating Temperature | 150°C | |
| Minimum Operating Temperature | -40°C | |
| Standards/Approvals | RoHS | |
| Automotive Standard | AEC-Q100 | |
| Series | BTS7012-2EPA | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type Power Control Switch | ||
Power Switch Topology High Side | ||
Power Switch Type High Side | ||
Switch On Resistance RdsOn 0.0215Ω | ||
Number of Outputs 1 | ||
Package Type PG-TSDSO-14 | ||
Minimum Supply Voltage -0.3V | ||
Maximum Supply Voltage 28V | ||
Pin Count 14 | ||
Operating Current 4mA | ||
Maximum Operating Temperature 150°C | ||
Minimum Operating Temperature -40°C | ||
Standards/Approvals RoHS | ||
Automotive Standard AEC-Q100 | ||
Series BTS7012-2EPA | ||
The Infineon PROFET +2 12V is a smart high-side power switch, providing protection functions and diagnosis. The device is integrated in SMART7 technology.
Reverse ON for low power dissipation in Reverse Polarity
Switch ON capability while inverse current condition
Green Product (RoHS compliant)
