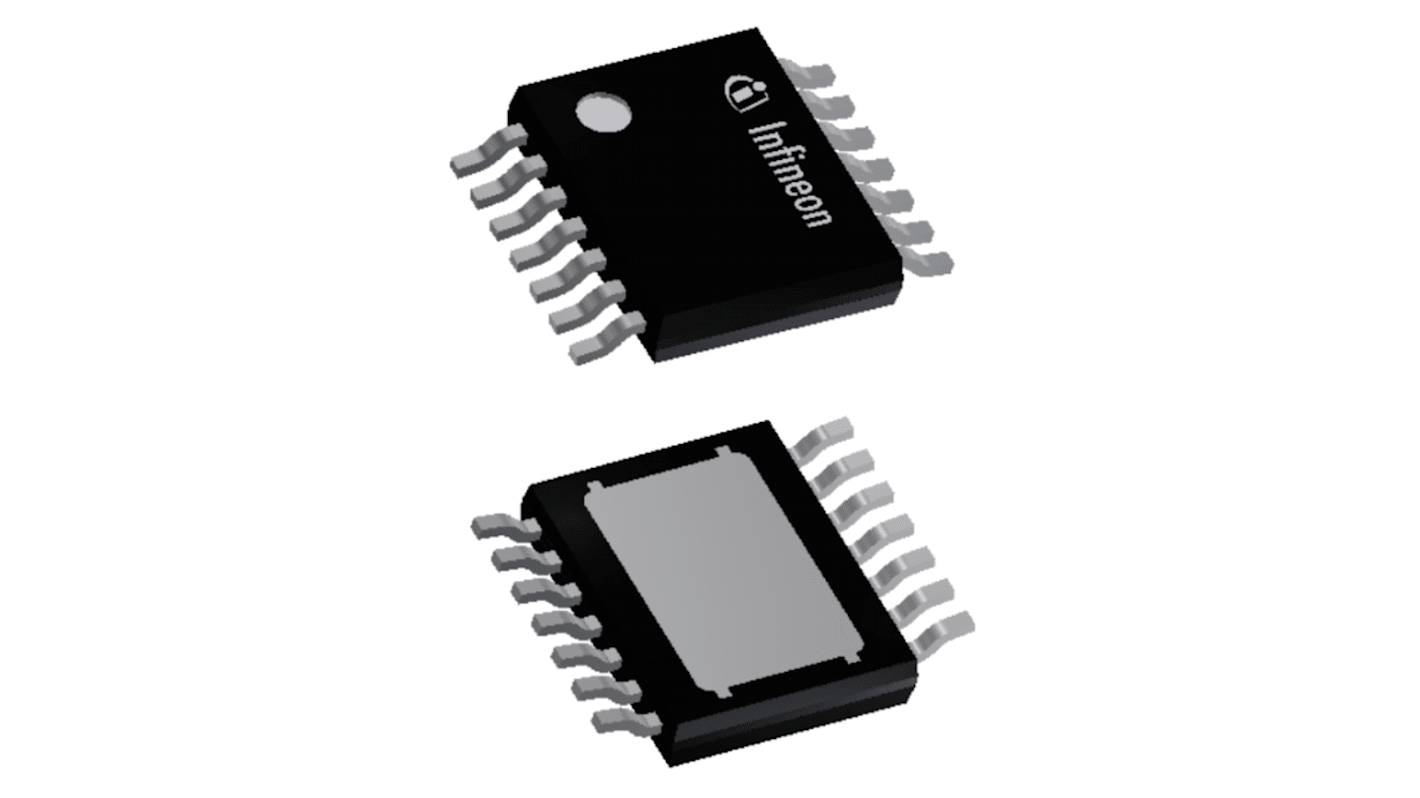

Infineon High Side, High Side Power Control Switch
- RS Stock No.:
- 258-0756
- Mfr. Part No.:
- BTS70122EPAXUMA1
- Brand:
- Infineon
Subtotal (1 reel of 3000 units)*
£2,403.00
(exc. VAT)
£2,883.00
(inc. VAT)
Add 3000 units to get free delivery
In Stock
- 3,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.801 | £2,403.00 |
*price indicative
- RS Stock No.:
- 258-0756
- Mfr. Part No.:
- BTS70122EPAXUMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Power Switch Topology | High Side | |
| Power Switch Type | High Side | |
| Product Type | Power Control Switch | |
| Switch On Resistance RdsOn | 0.0215Ω | |
| Number of Outputs | 1 | |
| Minimum Supply Voltage | -0.3V | |
| Maximum Supply Voltage | 28V | |
| Minimum Operating Temperature | -40°C | |
| Operating Current | 4mA | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | RoHS | |
| Automotive Standard | AEC-Q100 | |
| Series | BTS7012-2EPA | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Power Switch Topology High Side | ||
Power Switch Type High Side | ||
Product Type Power Control Switch | ||
Switch On Resistance RdsOn 0.0215Ω | ||
Number of Outputs 1 | ||
Minimum Supply Voltage -0.3V | ||
Maximum Supply Voltage 28V | ||
Minimum Operating Temperature -40°C | ||
Operating Current 4mA | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals RoHS | ||
Automotive Standard AEC-Q100 | ||
Series BTS7012-2EPA | ||
The Infineon PROFET +2 12V is a smart high-side power switch, providing protection functions and diagnosis. The device is integrated in SMART7 technology.
Reverse ON for low power dissipation in Reverse Polarity
Switch ON capability while inverse current condition
Green Product (RoHS compliant)
