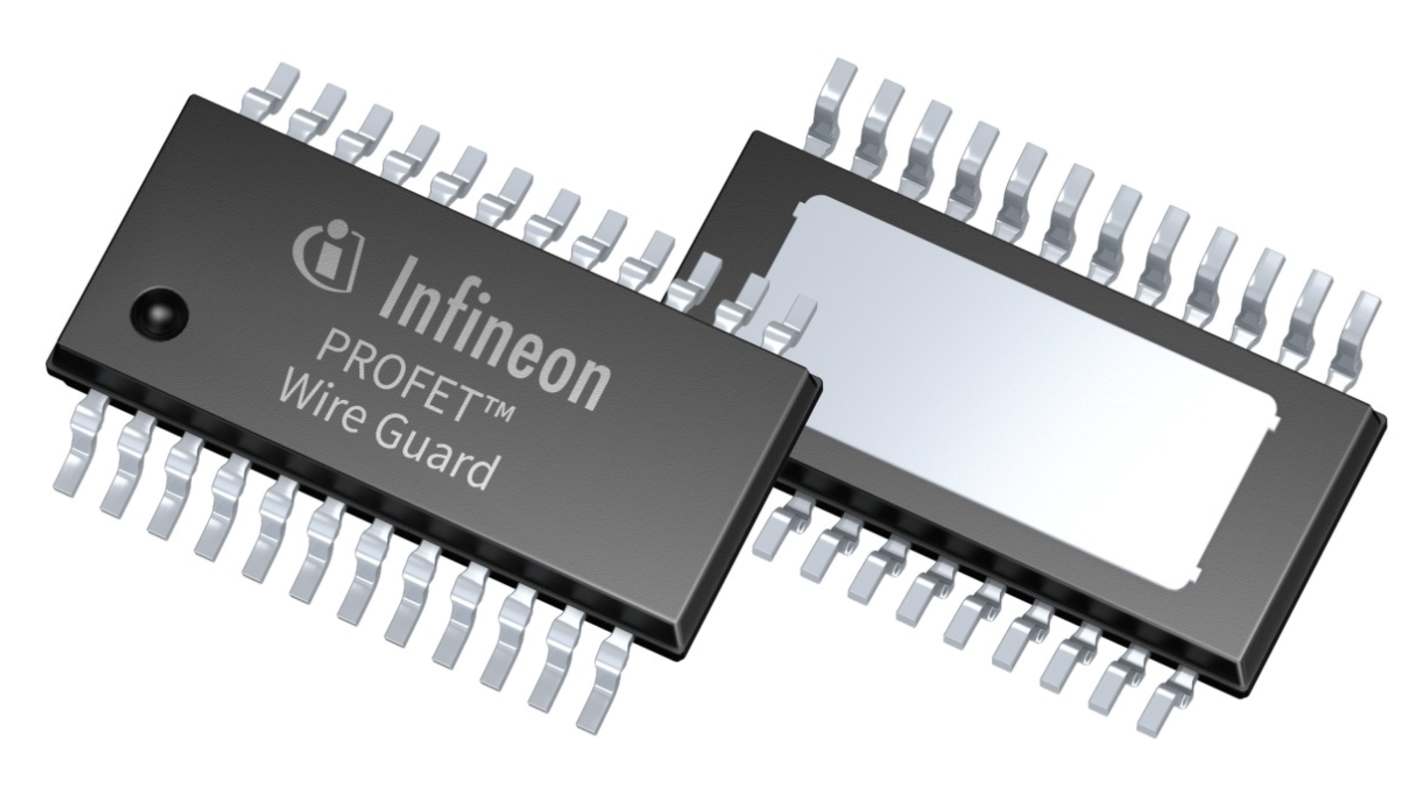

Infineon BTG70020A1ESWXUMA1 High Side, High Side Power Switch High-Side Switch 2-Pin, PG-TSDSO-24

View all Power Switch ICs
Bulk discount available

Subtotal (1 pack of 2 units)*

£6.05

(exc. VAT)

£7.26

(inc. VAT)

Add to Basket
Select or type quantity
Being discontinued
  • Final 3,000 unit(s), ready to ship
Units
Per unit
Per Pack*
2 - 18£3.025£6.05
20 - 198£2.725£5.45
200 - 998£2.51£5.02
1000 - 1998£2.33£4.66
2000 +£2.09£4.18

*price indicative

RS Stock No.:
349-366
Mfr. Part No.:
BTG70020A1ESWXUMA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Power Switch Type

High Side Power Switch

Product Type

High-Side Switch

Power Switch Topology

High Side

Number of Outputs

1

Minimum Supply Voltage

-0.3V

Package Type

PG-TSDSO-24

Maximum Supply Voltage

28V

Pin Count

2

Operating Current

7.4mA

Maximum Operating Temperature

150°C

Standards/Approvals

RoHS

Automotive Standard

No

COO (Country of Origin):
MY
The Infineon Smart power high side switch providing enhanced protection and diagnosis functions. Besides standard device protection functions it offers a selectable I2t protection, an adjustable overcurrent protection, an idle mode as well as a sequential diagnosis mode via IS pin.

IDL pin for microcontroller wake up in idle mode

Adjustable overcurrent threshold

Capacitive load switching mode

Sequential diagnosis for status readout

Reverse ON for low power dissipation in reverse polarity
