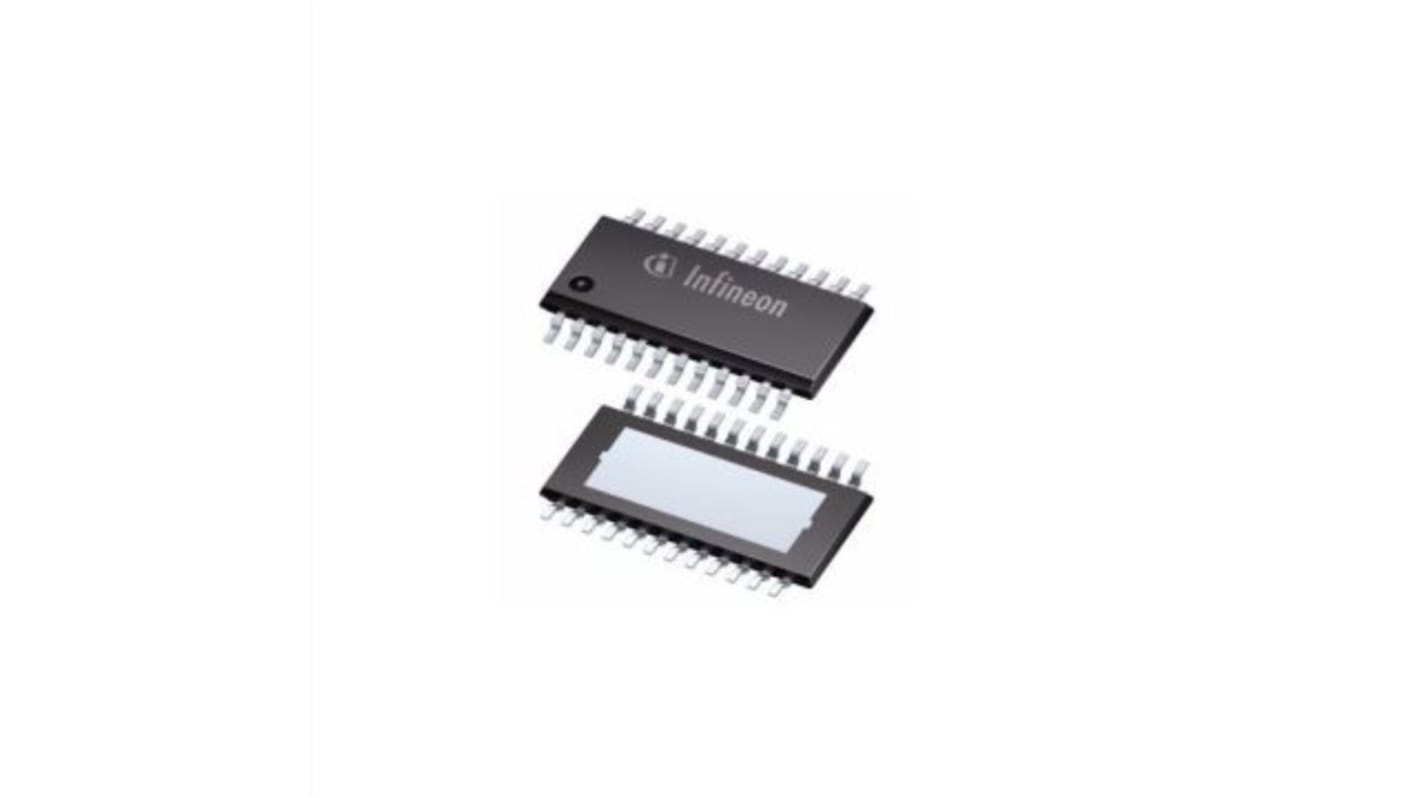

Infineon TLE75602ESHXUMA1 8 Power Switch IC
- RS Stock No.:
- 244-2895
- Mfr. Part No.:
- TLE75602ESHXUMA1
- Brand:
- Infineon
Subtotal (1 reel of 3000 units)*
£3,150.00
(exc. VAT)
£3,780.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
3000 + | £1.05 | £3,150.00 |
*price indicative
- RS Stock No.:
- 244-2895
- Mfr. Part No.:
- TLE75602ESHXUMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Infineon | |
Number of Channels | 8 | |
Number of Outputs | 14 | |
Select all | ||
---|---|---|
Brand Infineon | ||
Number of Channels 8 | ||
Number of Outputs 14 | ||
The Infineon TLE75602ESHXUMA1 is specially designed to control relays and LEDs in automotive and industrial applications. A serial peripheral interface (SPI) is utilized for control and diagnosis of the loads as well as of the device. For direct control and PWM there are two input pins available connected to two outputs by default. Additional or different outputs can be controlled by the same input pins (programmable via SPI).
16-bit serial peripheral interface for control and diagnosis
Daisy Chain capability SPI also compatible with 8-bit SPI devices
2 CMOS compatible parallel input pins with Input Mapping functionality
Cranking capability down to VS = 3.0 V (supports LV124)
Digital supply voltage range compatible with 3.3 V and 5 V microcontrollers
Bulb Inrush Mode (BIM) to drive 2 W lamps and electronic loads
Two internal PWM Generators for μC offload
Very low quiescent current (with usage of IDLE pin)
Daisy Chain capability SPI also compatible with 8-bit SPI devices
2 CMOS compatible parallel input pins with Input Mapping functionality
Cranking capability down to VS = 3.0 V (supports LV124)
Digital supply voltage range compatible with 3.3 V and 5 V microcontrollers
Bulb Inrush Mode (BIM) to drive 2 W lamps and electronic loads
Two internal PWM Generators for μC offload
Very low quiescent current (with usage of IDLE pin)
