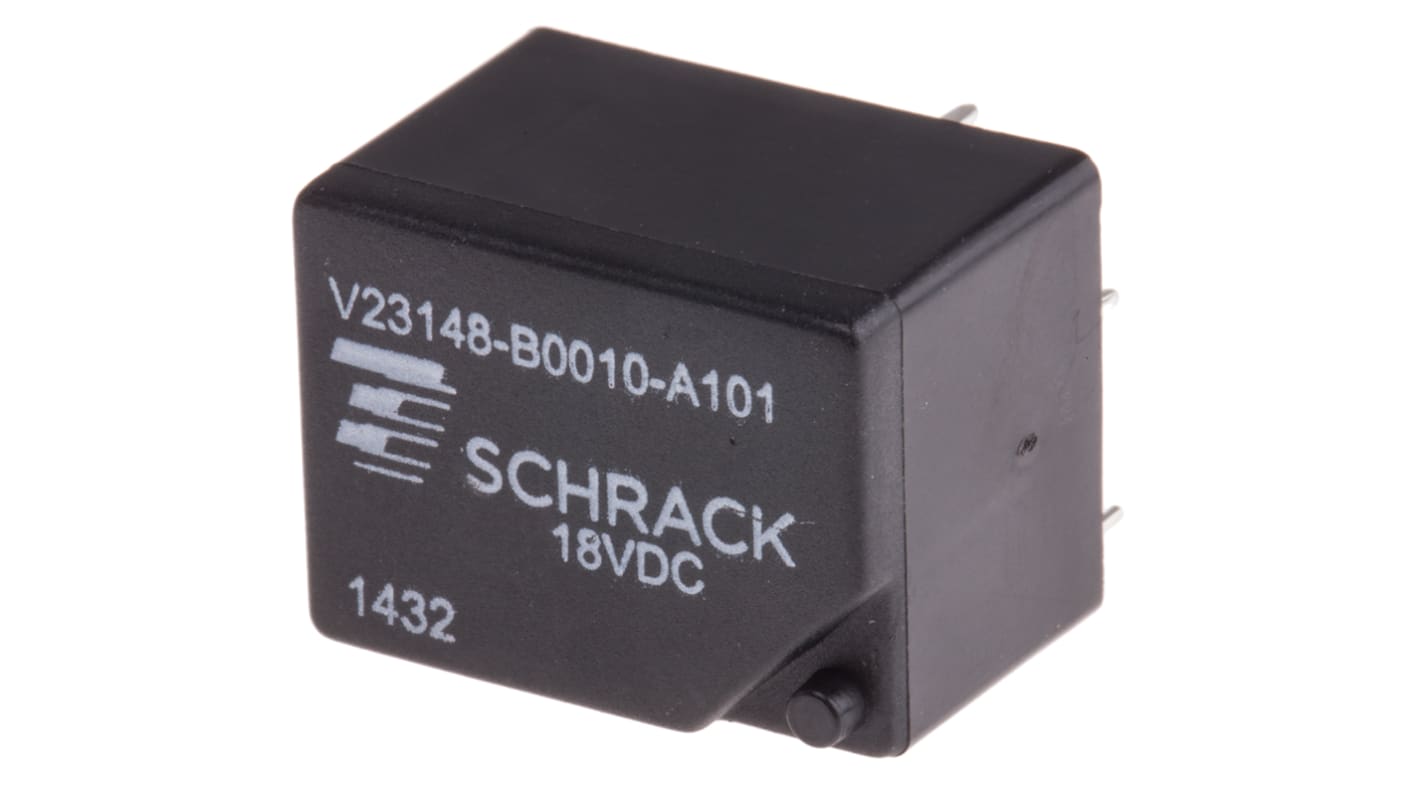

TE Connectivity PCB Mount Power Relay, 18V dc Coil, 7A Switching Current, SPDT
- RS Stock No.:
- 909-7968
- Distrelec Article No.:
- 302-21-316
- Mfr. Part No.:
- 1-1393204-4
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£19.29
(exc. VAT)
£23.15
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 31 unit(s) ready to ship
- Plus 14 unit(s) ready to ship from another location
- Plus 100 unit(s) shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 99 | £19.29 |
100 - 249 | £19.12 |
250 - 499 | £19.00 |
500 + | £18.89 |
*price indicative
- RS Stock No.:
- 909-7968
- Distrelec Article No.:
- 302-21-316
- Mfr. Part No.:
- 1-1393204-4
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Coil Voltage | 18V dc | |
Contact Configuration | SPDT | |
Mounting Type | PCB Mount | |
Switching Current | 7A | |
Number of Poles | 1 | |
Latching | No | |
Series | U/UB | |
Terminal Type | PCB Pin | |
Maximum Switching Voltage AC | 400V | |
Length | 21.2mm | |
Standards Met | cULus | |
Contact Material | Silver Alloy | |
Maximum Operating Temperature | +70°C | |
Isolation Coil To Contact | 2kVrms | |
Depth | 16.2mm | |
Life | 200000000 (Mechanical) Operations | |
Height | 14.9mm | |
Minimum Operating Temperature | -25°C | |
Maximum Switching Power AC | 1.75 kVA | |
Application | Battery Powered Equipment, Heating Control, Installation | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Coil Voltage 18V dc | ||
Contact Configuration SPDT | ||
Mounting Type PCB Mount | ||
Switching Current 7A | ||
Number of Poles 1 | ||
Latching No | ||
Series U/UB | ||
Terminal Type PCB Pin | ||
Maximum Switching Voltage AC 400V | ||
Length 21.2mm | ||
Standards Met cULus | ||
Contact Material Silver Alloy | ||
Maximum Operating Temperature +70°C | ||
Isolation Coil To Contact 2kVrms | ||
Depth 16.2mm | ||
Life 200000000 (Mechanical) Operations | ||
Height 14.9mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Switching Power AC 1.75 kVA | ||
Application Battery Powered Equipment, Heating Control, Installation | ||
- COO (Country of Origin):
- SI
TE Connectivity U/UB Series PCB Power Relay
U / UB series single pole PCB power relays with silver nickel 90/10 contacts. Series U PCB power relays (V23148-A) are monostable with a standard or sensitive coil (for details see datasheet on RS website). Series U/B PCB power relays (V23148-B) are bistable with a standard coils.
Fully sealed design
Operating Temperature Range -25 to +70°C
Switching Voltage 250 Vac
Creepage And Clearance 3.5 mm
Isolation Coil to Contact: 4000Vac
H 18.9, W 21.2, D 16.2
Operating Temperature Range -25 to +70°C
Switching Voltage 250 Vac
Creepage And Clearance 3.5 mm
Isolation Coil to Contact: 4000Vac
H 18.9, W 21.2, D 16.2
Approvals
UL
