Finder PCB Mount Power Relay, 230V ac Coil, 12A Switching Current, SPDT

View all Power Relays
Bulk discount available

Subtotal (1 unit)*

£11.94

(exc. VAT)

£14.33

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 21 unit(s) ready to ship
  • Plus 14 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£11.94
5 - 9£11.35
10 +£10.98

*price indicative

RS Stock No.:
894-9411
Mfr. Part No.:
41.31.8.230.0000
Brand:
Finder
Find similar products by selecting one or more attributes.
Select all

Brand

Finder

Coil Voltage

230V ac

Contact Configuration

SPDT

Mounting Type

PCB Mount

Switching Current

12A

Number of Poles

1

Series

41 Series

Terminal Type

PCB Pin

Maximum Switching Voltage AC

400V ac

Maximum Switching Voltage DC

110V dc

Maximum Switching Current AC

25 A

Length

29mm

Coil Power

400mW

Life

60000 Cycles

Contact Material

Silver Alloy

Standards Met

cULus, EAC, PCT, RINA, UL, VDE

Maximum Operating Temperature

+70°C

Isolation Coil To Contact

6kV

Height

15.7mm

Depth

12.6mm

Minimum Operating Temperature

-40°C

Number of Coils

Single

Dimensions

29 x 12.6 x 15.7mm

COO (Country of Origin):
IT

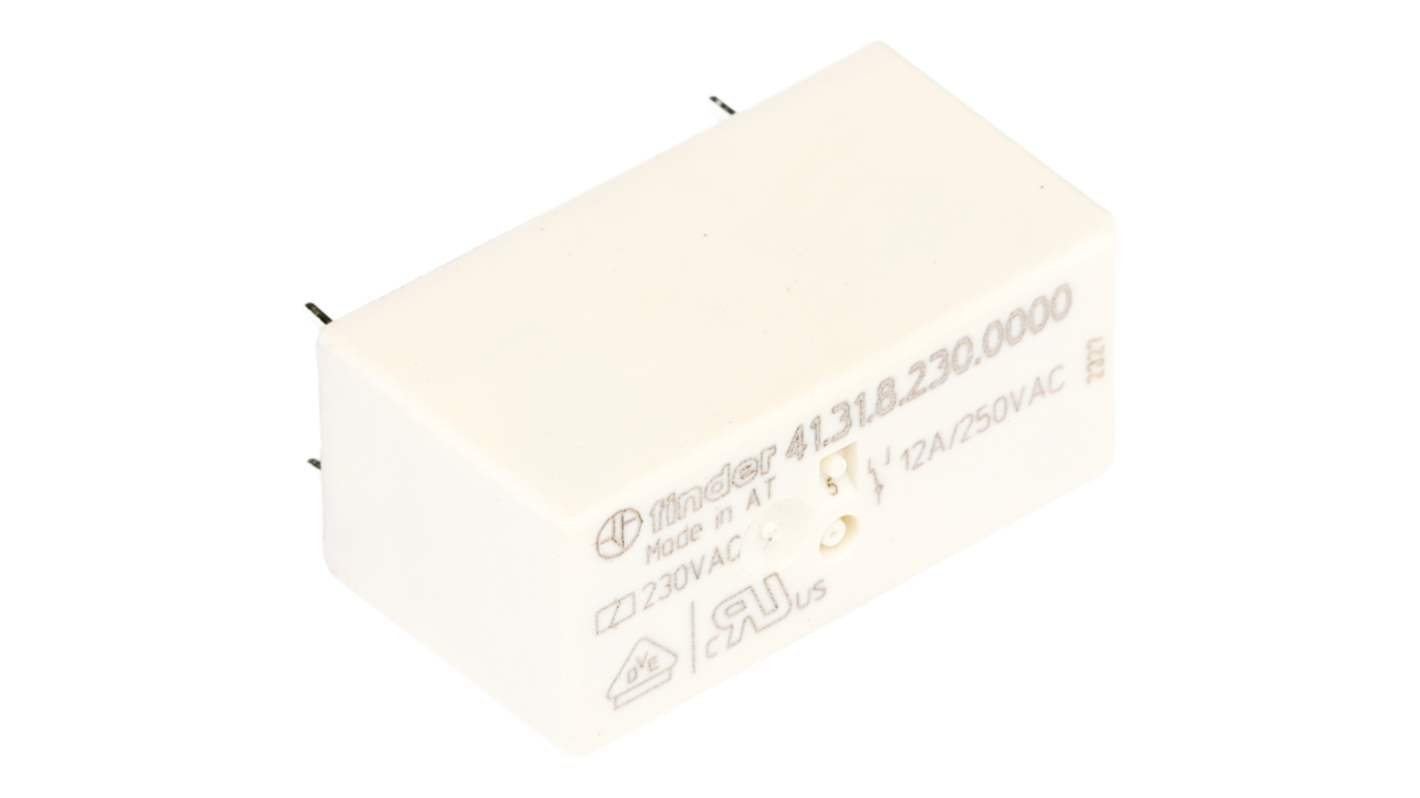

Finder 41 Series Power Relay, 230V AC Coil Voltage, 12A Switching Current - 41.31.8.230.0000


This power relay is a highly efficient switching relay designed for versatility in various control applications. The SPDT relay operates at a coil voltage of 230V AC and features a compact PCB mount design, making it ideal for space-constrained environments. With dimensions of 29 x 12.6 x 15.7mm, it is well-suited for integration into modern electronic circuits.

Features & Benefits


• Operates with a maximum switching current of 12A for reliable performance
• Single pole configuration enables flexible circuit design
• Offers high voltage switching capability up to 400V AC
• Designed with silver alloy relay contacts for enhanced durability
• Reliable operation across a temperature range of -40°C to +70°C
• Achieves a life expectancy of up to 60,000 cycles for long-lasting use

Applications


• Used in industrial robots for automated control systems
• Suitable for building automation involving lighting controls
• Integrated into medical and dental equipment wiring
• Ideal for control systems in vending machines and door openers
• Utilised in timers controlling various electromechanical devices

What type of mounting options are available for this relay?


It features PCB mount options that allow for direct installation or utilisation via a PCB socket, providing adaptability for different applications and setups.

How does this relay ensure reliable performance under varying conditions?


The device is designed to operate within -40°C to +70°C, maintaining performance stability, while its silver alloy contacts enhance conductivity and durability against wear.

What is the significance of the relay’s isolation rating?


With an isolation rating of 6kV between the coil and contacts, it protects against electrical surges, ensuring operational safety and reducing the risk of failure in sensitive circuitry.

Can this relay handle different load types?


Yes, it is suitable for both inductive and resistive loads, making it versatile for a range of applications including motor control and lighting.

What lifespan can be expected from the relay under normal operating conditions?


Under normal conditions, the relay can last up to 60,000 cycles, ensuring longevity and reducing the need for frequent replacements in critical applications.
