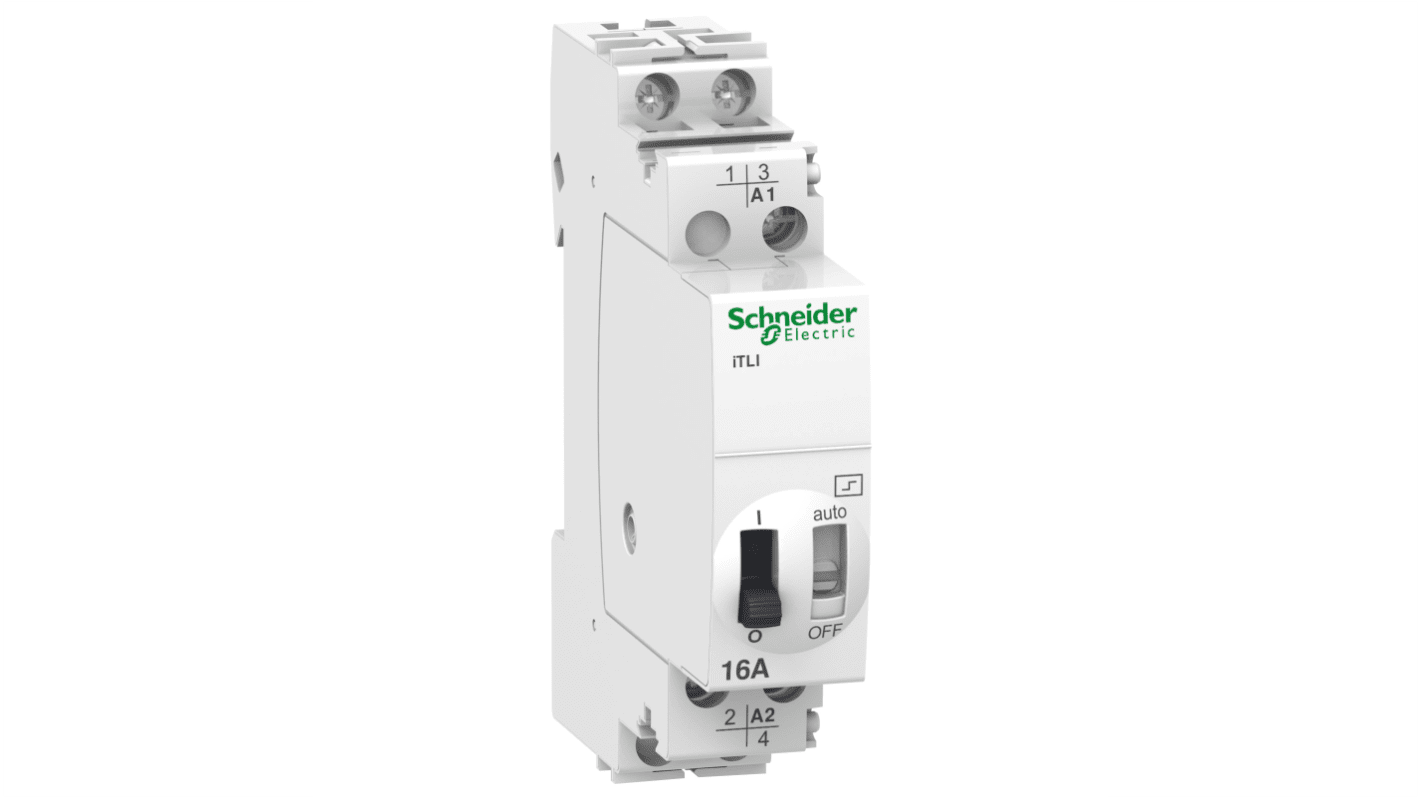

Schneider Electric DIN Rail Power Relay, 130V ac/dc, 48 V ac/dc Coil, 16A Switching Current, SPDT
- RS Stock No.:
- 791-3095
- Mfr. Part No.:
- A9C30315
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£82.67
(exc. VAT)
£99.20
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 9 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £82.67 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 791-3095
- Mfr. Part No.:
- A9C30315
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Coil Voltage | 130, 48V ac/dc | |
| Product Type | Power Relay | |
| Contact Configuration | SPDT | |
| Mount Type | DIN Rail | |
| Series | Acti9 iTL | |
| Switching Voltage | 250V | |
| Switching Current | 16A | |
| Length | 86mm | |
| Height | 71mm | |
| Width | 18mm | |
| Standards/Approvals | RoHS Directive (European Directive 2011/65/EU of 8 June 2011), EN 15804:2012 + A1:2013, ISO 14025:2010, RoHS Directive (European Directive 2002/95/EC of 27 January 2003) | |
| Better World Product | Yes | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Coil Voltage 130, 48V ac/dc | ||
Product Type Power Relay | ||
Contact Configuration SPDT | ||
Mount Type DIN Rail | ||
Series Acti9 iTL | ||
Switching Voltage 250V | ||
Switching Current 16A | ||
Length 86mm | ||
Height 71mm | ||
Width 18mm | ||
Standards/Approvals RoHS Directive (European Directive 2011/65/EU of 8 June 2011), EN 15804:2012 + A1:2013, ISO 14025:2010, RoHS Directive (European Directive 2002/95/EC of 27 January 2003) | ||
Better World Product Yes | ||
Acti9 iTL Impulse Relays
iTL impulse relays are used to control by pushbuttons lighting circuits consisting of incandescent lamps, low-voltage halogen lamps, fluorescent lamps and discharge lamps.
Closing of the impulse relay pole is triggered by an impulse on the coil
Having two stable mechanical positions, the pole will be opened by the next impulse
Can be controlled by an unlimited number of pushbuttons.
Zero energy consumption
