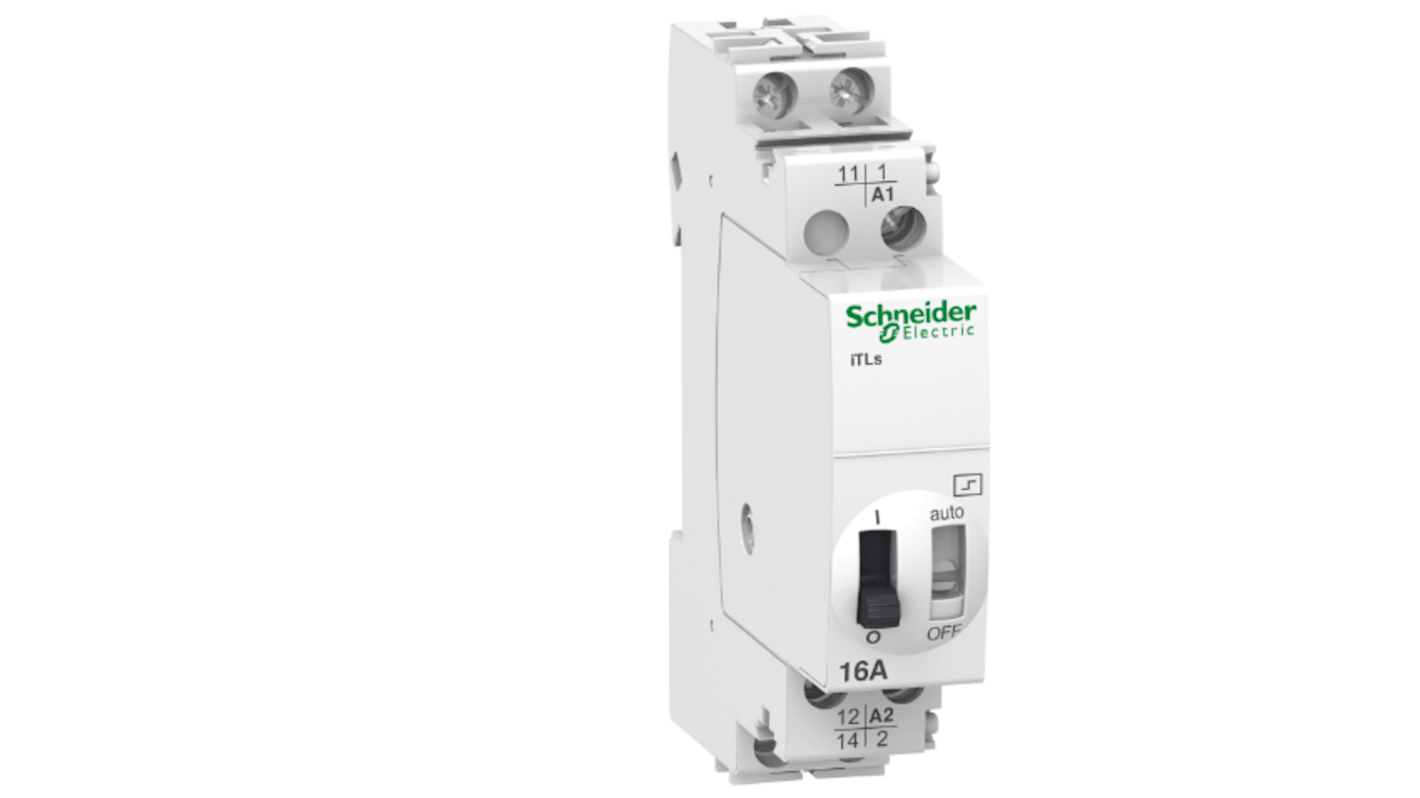

Schneider Electric DIN Rail Power Relay, 24 V dc, 48V ac Coil, 16A Switching Current
- RS Stock No.:
- 220-1206
- Mfr. Part No.:
- A9C32211
- Brand:
- Schneider Electric
1 In stock for delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Price Each
£64.06
(exc. VAT)
£76.87
(inc. VAT)
Units | Per unit |
|---|---|
| 1 + | £64.06 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 220-1206
- Mfr. Part No.:
- A9C32211
- Brand:
- Schneider Electric
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- BE
Product Details
The Schneider Electric Acti9 iTLs is a modular impulse relay. This 1P device has 1 normally open contact. Rated current is 16A, 24VAC to 250VAC operating voltage and it operates with 48VAC or 24VDC control voltage. Electrical endurance goes up to 200000 cycles for AC-21 or 100000 cycles for AC-22.
It is mainly used for lighting control applications
This impulse relays allow remote indication of their operating state
Overvoltage category is IV
The degree of protection is IP20 and IP40 in an enclosure
This impulse relays allow remote indication of their operating state
Overvoltage category is IV
The degree of protection is IP20 and IP40 in an enclosure
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 24 V dc, 48V ac |
| Mounting Type | DIN Rail |
| Switching Current | 16A |
| Number of Poles | 1 |
| Terminal Type | Tunnel |
| Length | 18mm |
| Series | ITLs |
| Better World Verification | Green Premium |
| Better World Product | Yes |
| Height | 84mm |
| Depth | 60mm |
