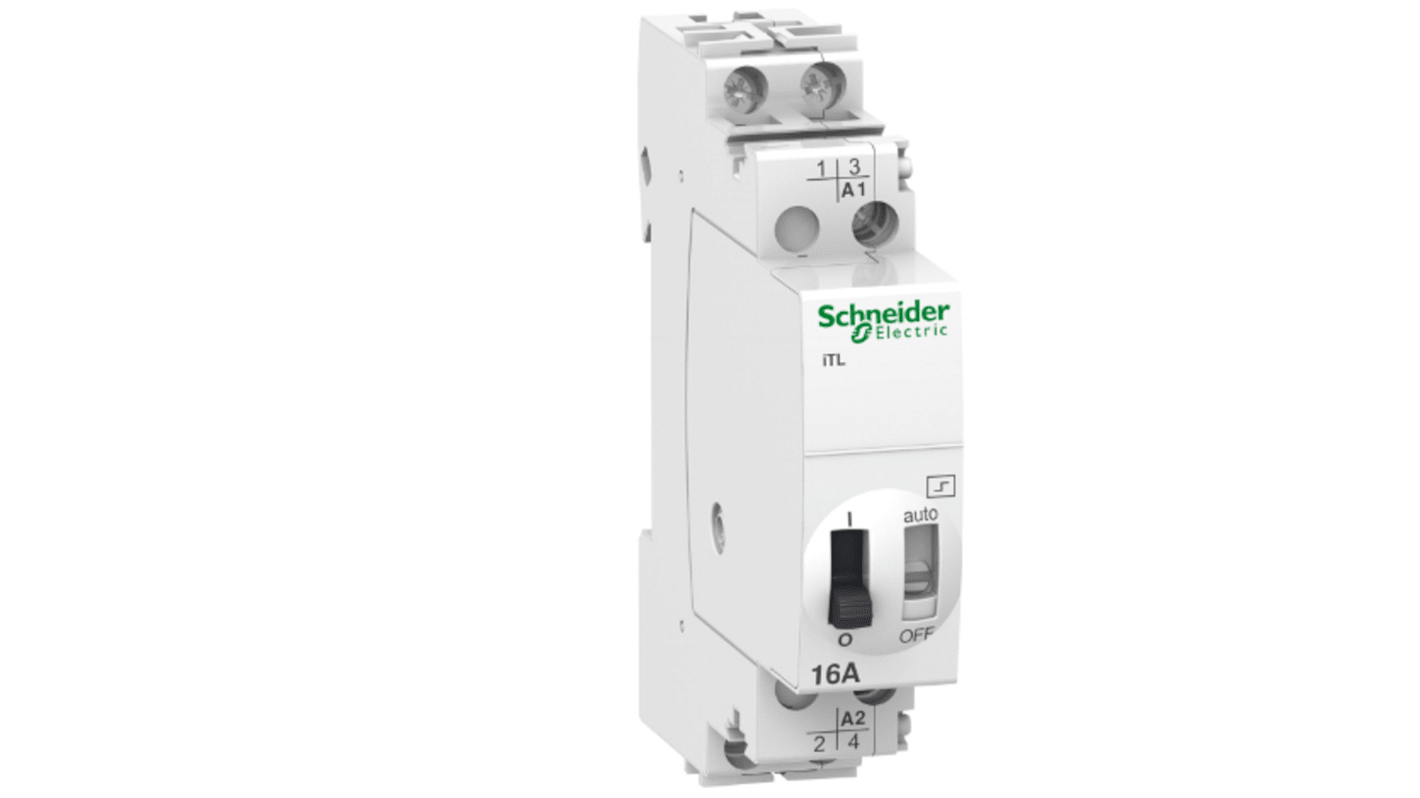

Schneider Electric DIN Rail Power Relay, 48 V dc, 130V ac Coil, 16A Switching Current, DPST

View all Power Relays

Subtotal (1 unit)*

£82.72

(exc. VAT)

£99.26

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£82.72

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
220-1204
Mfr. Part No.:
A9C30312
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Coil Voltage

48 V dc, 130V ac

Contact Configuration

DPST

Mounting Type

DIN Rail

Switching Current

16A

Number of Poles

2

Series

ITL

Terminal Type

Tunnel

Length

18mm

Better World Verification

Green Premium

Height

84mm

Better World Product

Yes

Depth

60mm

COO (Country of Origin):
BE
The Schneider Electric Acti9 iTL is a modular impulse relay. This 2P device has 2 normally open contacts. Rated current is 16A, 24VAC to 250VAC operating voltage and it operates with 130VAC or 48VDC control voltage. Electrical endurance goes up to 200000 cycles for AC-21 or 100000 cycles for AC-22. The switching frequency is 5 switching operations/minute or 100 switching operations/day.

It is mainly used for lighting control applications
The operating frequency is 50Hz or 60Hz
It is DIN rail mountable
Pollution degree is 3
Overvoltage category is IV
