Schneider Electric DIN Rail Power Relay, 24 V dc, 48V ac Coil, 16A Switching Current, SPDT
- RS Stock No.:
- 220-1202
- Mfr. Part No.:
- A9C30215
- Brand:
- Schneider Electric
1 In stock - FREE next working day delivery available
8 available from Europe for delivery within 1 working day(s).
Added
Price Each
£64.41
(exc. VAT)
£77.29
(inc. VAT)
| Units | Per unit |
| 1 + | £64.41 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 220-1202
- Mfr. Part No.:
- A9C30215
- Brand:
- Schneider Electric
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- BE
Product Details

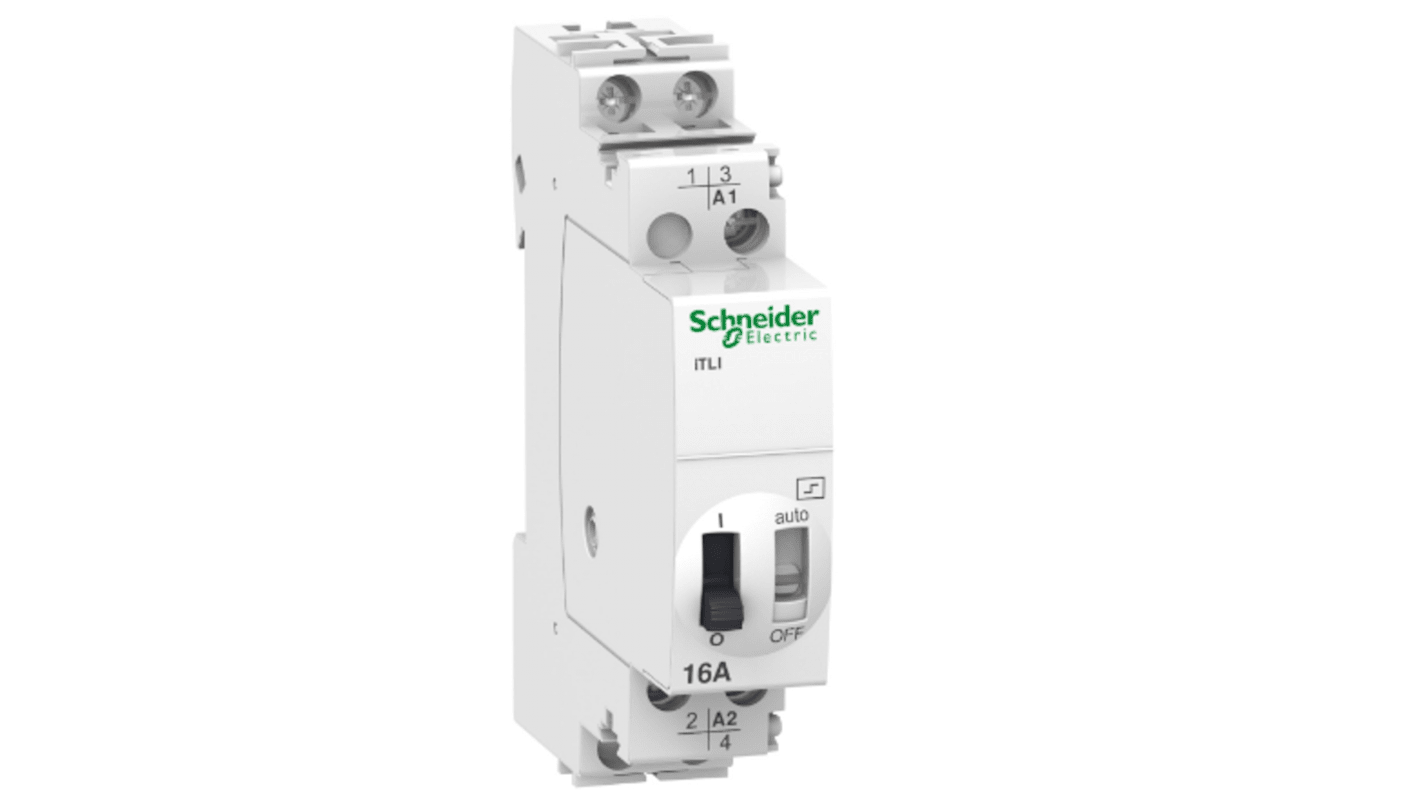

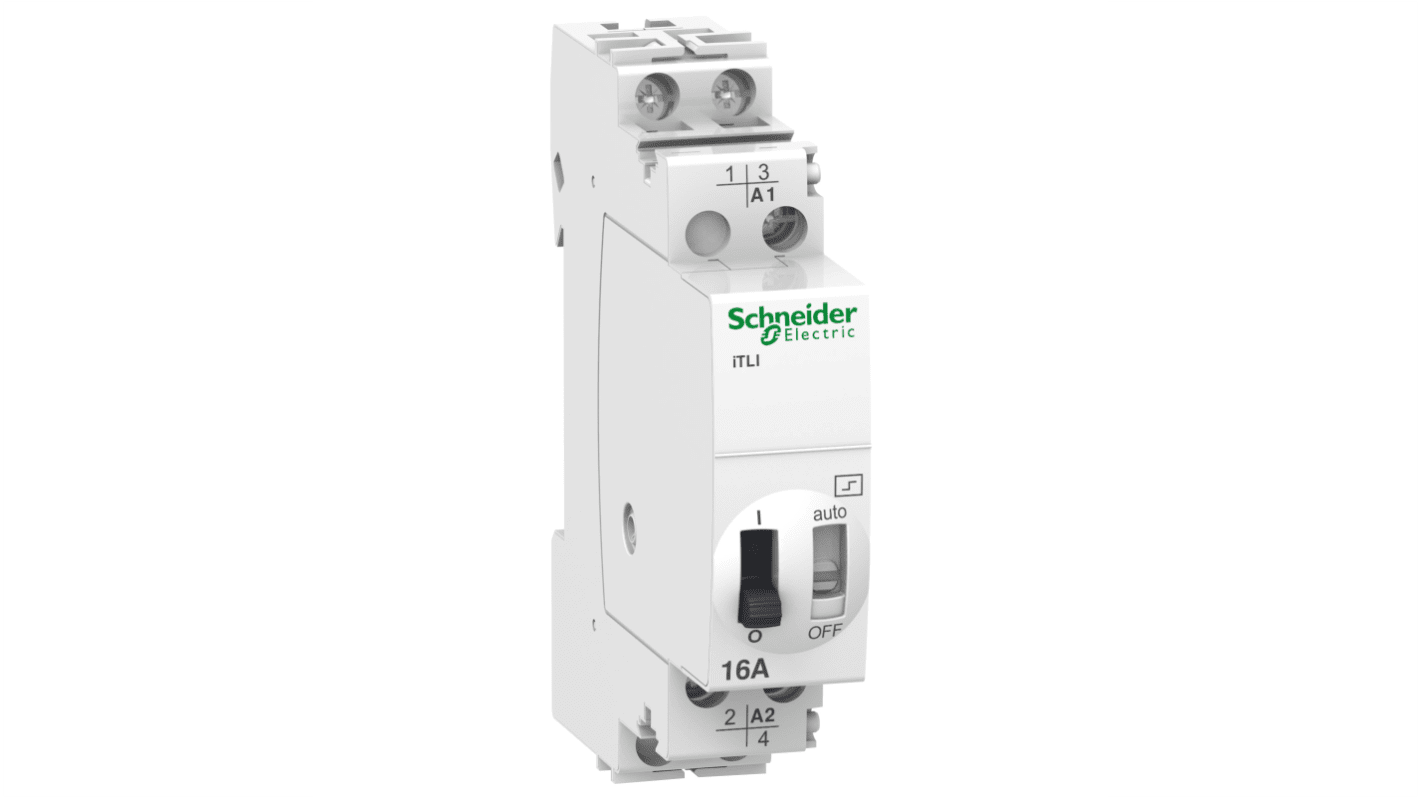

The Schneider Electric Acti9 iTLi is a modular impulse relay. It is a changeover contact with 1 normally open and 1 normally close contact. Rated current is 16A, 24VAC to 250VAC operating voltage and it operates with 48VAC or 24VDC control voltage. Electrical endurance goes up to 200000 cycles for AC-21 or 100000 cycles for AC-22. The switching frequency is 5 switching operations/minute or 100 switching operations/day.
The operating frequency is 50Hz or 60Hz
It is DIN rail mountable
Pollution degree is 3
Overvoltage category is IV
It is DIN rail mountable
Pollution degree is 3
Overvoltage category is IV
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 24 V dc, 48V ac |
| Contact Configuration | SPDT |
| Mounting Type | DIN Rail |
| Switching Current | 16A |
| Number of Poles | 2 |
| Terminal Type | Tunnel |
| Length | 18mm |
| Depth | 60mm |
| Height | 84mm |
| Series | ITLi |
| Better World Product | Yes |
| Better World Verification | Green Premium |
- RS Stock No.:
- 220-1202
- Mfr. Part No.:
- A9C30215
- Brand:
- Schneider Electric
