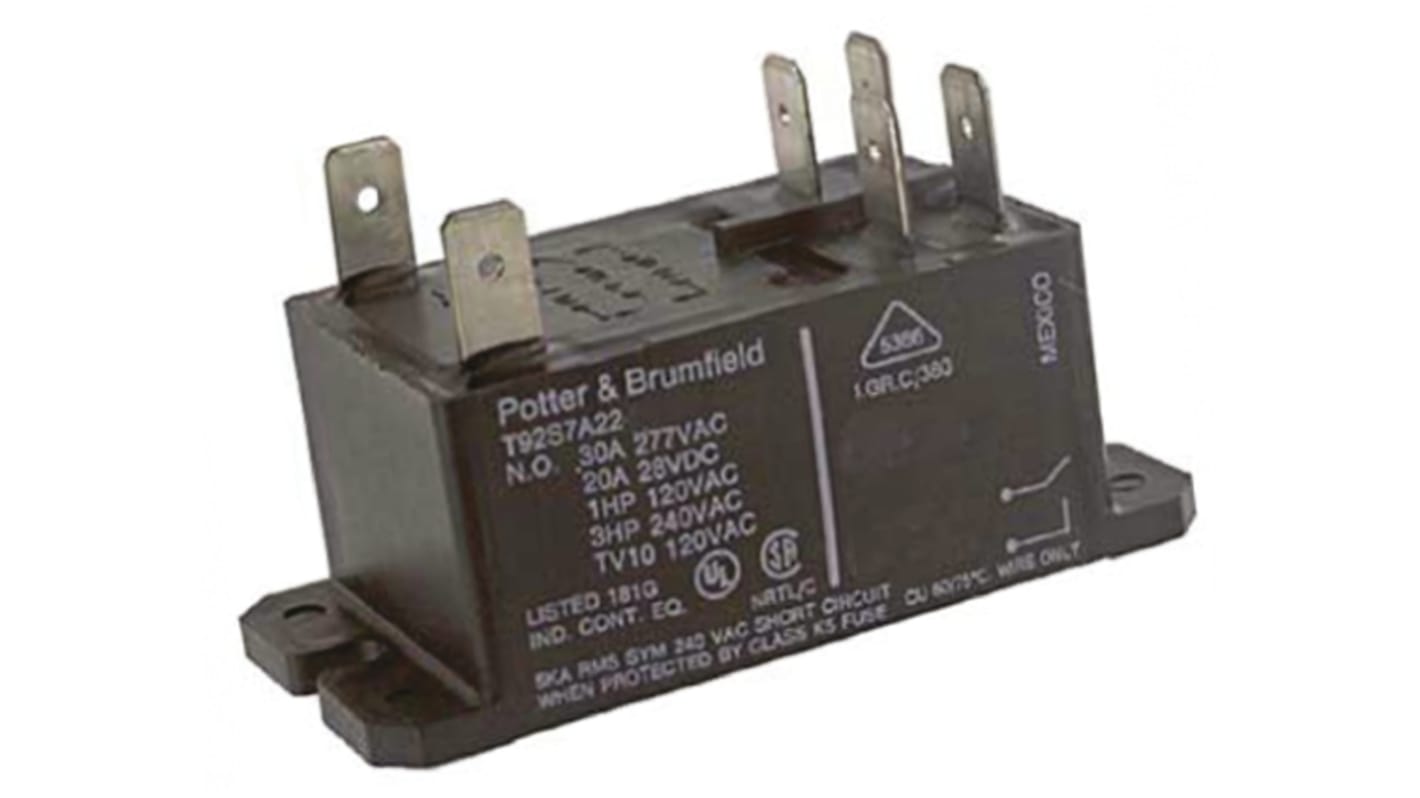

TE Connectivity Panel Power Relay, 120V Coil, 30A Switching Current, 2 NO
- RS Stock No.:
- 782-1716
- Mfr. Part No.:
- T92S7A22-120 1393212-2
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£17.96
(exc. VAT)
£21.55
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 16 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 4 | £17.96 |
| 5 - 9 | £17.44 |
| 10 + | £16.69 |
*price indicative
- RS Stock No.:
- 782-1716
- Mfr. Part No.:
- T92S7A22-120 1393212-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Power Relay | |
| Coil Voltage | 120V | |
| Contact Configuration | 2 NO | |
| Mount Type | Panel | |
| Series | Y92 | |
| Terminal Type | Quick Connect | |
| Switching Current | 30A | |
| Switching Power | 4VA | |
| Minimum Operating Temperature | -45°C | |
| Switching AC Voltage | 600V ac | |
| Coil Resistance | 950Ω | |
| Maximum Operating Temperature | 85°C | |
| Width | 34.5mm | |
| Standards/Approvals | CSA, UR, UL | |
| Coil Power | 4VA | |
| Height | 30.7mm | |
| Length | 52.3mm | |
| Contact Material | Silver Alloy | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Power Relay | ||
Coil Voltage 120V | ||
Contact Configuration 2 NO | ||
Mount Type Panel | ||
Series Y92 | ||
Terminal Type Quick Connect | ||
Switching Current 30A | ||
Switching Power 4VA | ||
Minimum Operating Temperature -45°C | ||
Switching AC Voltage 600V ac | ||
Coil Resistance 950Ω | ||
Maximum Operating Temperature 85°C | ||
Width 34.5mm | ||
Standards/Approvals CSA, UR, UL | ||
Coil Power 4VA | ||
Height 30.7mm | ||
Length 52.3mm | ||
Contact Material Silver Alloy | ||
T92 Series Flange Mount Relay
Meets requirements of UL 873 and UL 508 spacing - .315in. (8mm) through air, .375in. (9.5mm) over surface
Designed to control compressor loads to 3.5 tons, 25.3 FLA, 110 LRA
Meets VDE 8mm spacing, 4kV dielectric coil to contacts
UL Class F construction system standard
UL approved for 600V ac switching (1.5HP)
Conforms to VDE 0435, 0631 and 0700
Operating Temperature: -40°C to +65°C
Approvals
UL recognised; CSA certified; VDE
