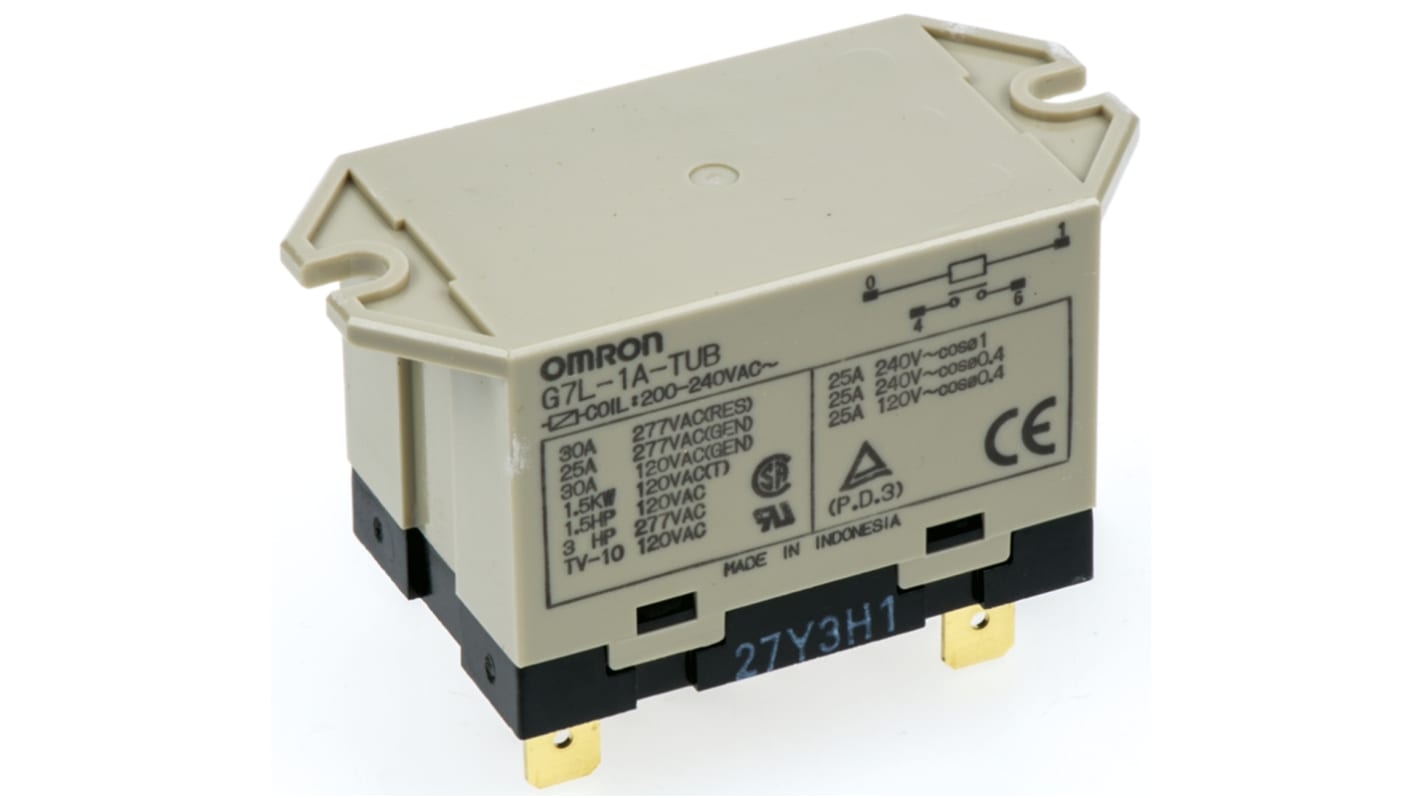

Omron Power Relay, 120V ac Coil, 30A Switching Current, SPST

View all Power Relays
Bulk discount available

Subtotal (1 unit)*

£15.19

(exc. VAT)

£18.23

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 88 unit(s) shipping from 04 May 2026
  • Plus 6 unit(s) shipping from 04 May 2026
  • Plus 76 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 24£15.19
25 - 49£13.78
50 - 99£12.63
100 - 249£11.66
250 +£10.86

*price indicative

Packaging Options:
RS Stock No.:
684-0154
Distrelec Article No.:
304-01-153
Mfr. Part No.:
G7L-1A-TUB 100/120AC
Brand:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Coil Voltage

120V ac

Product Type

Power Relay

Contact Configuration

SPST

Series

G7L

Terminal Type

Quick Connect

Switching Current

30A

Switching AC Voltage

250V ac

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

60°C

Width

33.5mm

Height

47mm

Length

68.5mm

Coil Power

2.5W

Standards/Approvals

CSA, IEC, RoHS, UL, TUV

Contact Material

Silver Alloy

Omron G7L Series Power Relay, 120V AC Coil Voltage, 30A Switching Current - G7L-1A-TUB 100/120AC


This power relay is a general-purpose device designed for a range of applications, featuring a Coil voltage of 230V AC. With Compact dimensions of 68.5mm in length, 33.5mm in depth, and 47mm in height, this panel mount relay is engineered to deliver reliable performance in demanding environments. It operates efficiently within a temperature range from -25°C to +60°C, making it adaptable for various conditions.

Features & Benefits


• Provides a switching current of up to 30A for robust control
• Utilises SPST configuration for straightforward switching use
• Capable of maximum switching voltage of 250V AC for high voltage operation
• Features quick connect terminals for easy wiring and installation
• Constructed with Ag alloy contacts for durability and longevity
• Rated for 1 million cycles, ensuring extended product life

Applications


• Used for controlling electrical circuits in industrial automation systems
• Suitable for power distribution panels in commercial buildings
• Can be used in HVAC systems for efficient climate control
• Utilised in machinery for operational control and safety mechanisms

What is the significance of the switching current limit for this device?


The switching current limit of 30A indicates the maximum load the relay can handle, ensuring reliable operation without risk of overheating or failure. It allows for effective handling of significant loads in industrial settings.

How does the quick connect Terminal feature enhance installation?


The quick connect Terminal design simplifies the installation process, allowing for quicker and more secure connections. This is particularly advantageous in projects where time efficiency is crucial, reducing downtime during setups.

What types of environments can this power relay operate in effectively?


This device can function well in environments with temperatures ranging from -25 °C to +60 °C. This wide operational range ensures its reliability in varying climatic conditions typical in industrial and commercial applications.

What kind of materials are the contacts MADE from, and why does it matter?


The contacts are MADE from Ag alloy, which enhances conductivity and reduces wear over time. This material choice contributes to the relay's longevity, ensuring dependable performance across its rated life of 1 million cycles.

Approvals

UL; CSA; TÜV
