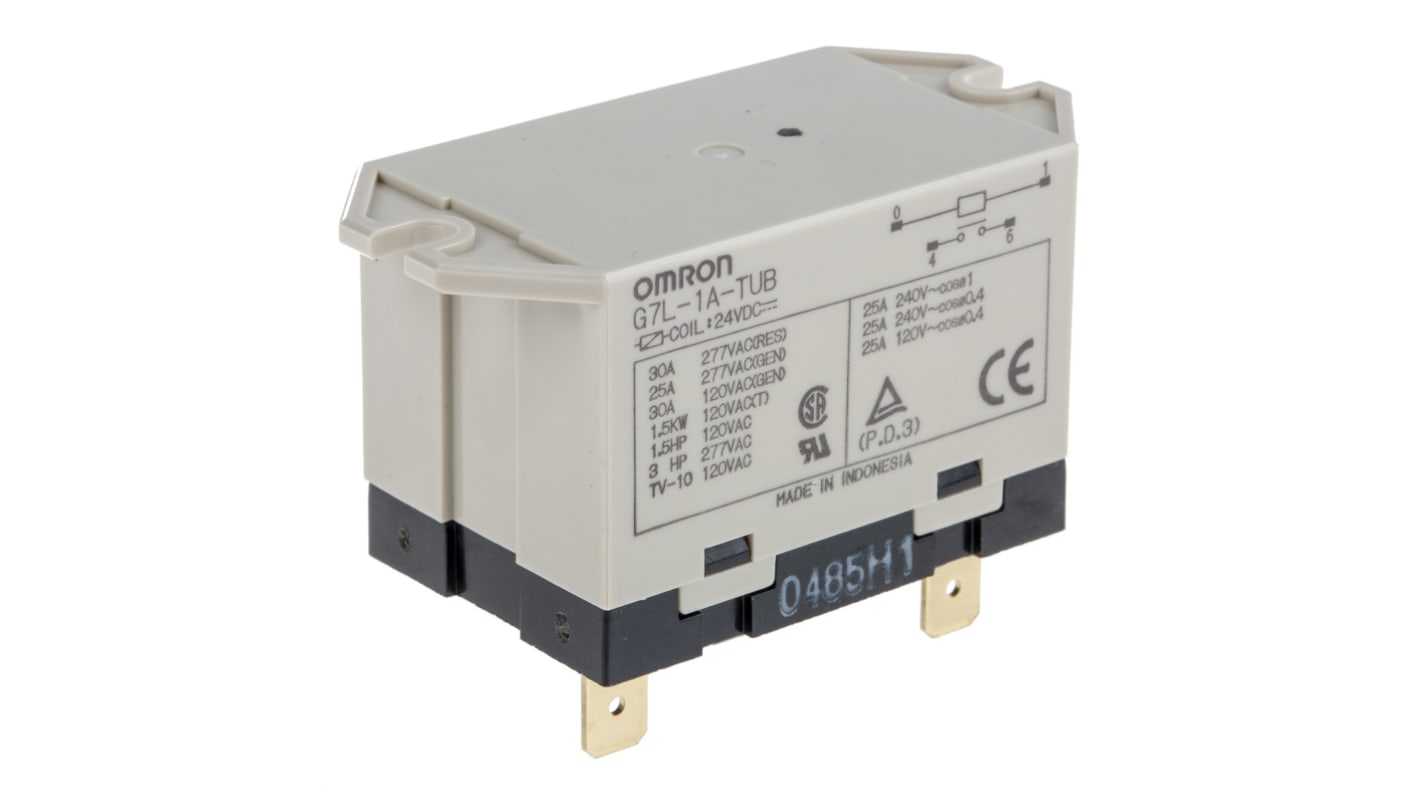

Omron Flange Mount Power Relay, 24V dc Coil, 30A Switching Current, SPST

View all Power Relays
Bulk discount available

Subtotal (1 unit)*

£10.06

(exc. VAT)

£12.07

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 69 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 24£10.06
25 - 49£9.56
50 - 99£7.50
100 - 249£7.34
250 +£7.19

*price indicative

Packaging Options:
RS Stock No.:
684-0172
Mfr. Part No.:
G7L-1A-TUB 24DC
Brand:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Coil Voltage

24V dc

Contact Configuration

SPST

Mounting Type

Flange Mount

Switching Current

30A

Number of Poles

1

Series

G7L

Latching

No

Terminal Type

Quick Connect

Maximum Switching Voltage AC

250V ac

Length

68.5mm

Coil Resistance

303Ω

Coil Power

1.9W

Depth

33.5mm

Maximum Operating Temperature

+60°C

Life

1000000 (Electrical) cycles, 1000000 (Mechanical) cycles

Height

47mm

Minimum Operating Temperature

-25°C

Isolation Coil To Contact

4kV ac

Maximum Switching Power AC

6.6 kVA

Application

Power

COO (Country of Origin):
ID

PCB Mounting & Plug-in - Power Relays - G7L Series


Relay compatible with momentary voltage drops up to 50% of rated voltage
High capacity and high dielectric strength
Flame-resistance UL94V-0 insulation material
Choice of connection types available - quick-connect or PCB terminals
Suitable DIN rail/surface socket (Front connecting socket) and relay mounting clip (E-bracket) available separately for use with quick-connect types G7L-1A-T and G7L-2A-T (not to be used with G7L-1A-TUB and G7L-2A-TUB upper bracket mount types)

Approvals

UL; CSA; TÜV
