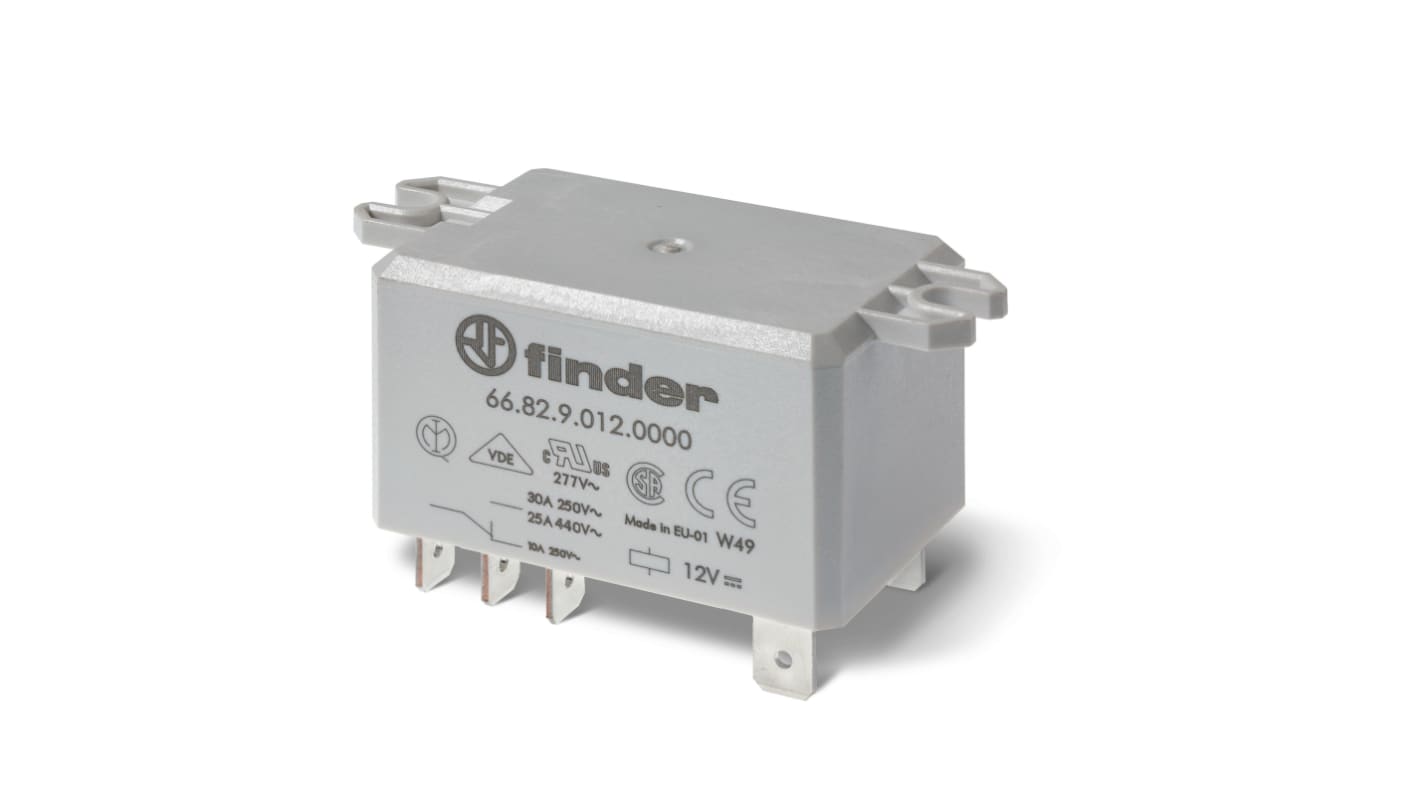

Finder Flange Relay, 120V ac Coil, 30A Switching Current, 2 CO
- RS Stock No.:
- 248-2665
- Mfr. Part No.:
- 668281200000
- Brand:
- Finder
Subtotal (1 pack of 10 units)*
£168.98
(exc. VAT)
£202.78
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 04 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £16.898 | £168.98 |
*price indicative
- RS Stock No.:
- 248-2665
- Mfr. Part No.:
- 668281200000
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Coil Voltage | 120V ac | |
| Product Type | Relay | |
| Contact Configuration | 2 CO | |
| Mount Type | Flange | |
| Series | 66 | |
| Terminal Type | Screw | |
| Switching Current | 30A | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 250V ac | |
| Coil Resistance | 1.1kΩ | |
| Maximum Operating Temperature | 70°C | |
| Height | 40.8mm | |
| Coil Power | 3.6VA | |
| Standards/Approvals | CSA, EAC | |
| Length | 68.5mm | |
| Width | 33.5mm | |
| Contact Material | Silver Alloy Gold Plated | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Coil Voltage 120V ac | ||
Product Type Relay | ||
Contact Configuration 2 CO | ||
Mount Type Flange | ||
Series 66 | ||
Terminal Type Screw | ||
Switching Current 30A | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 250V ac | ||
Coil Resistance 1.1kΩ | ||
Maximum Operating Temperature 70°C | ||
Height 40.8mm | ||
Coil Power 3.6VA | ||
Standards/Approvals CSA, EAC | ||
Length 68.5mm | ||
Width 33.5mm | ||
Contact Material Silver Alloy Gold Plated | ||
The Finder's 66 series 30A power relay with 2 pole changeover contact, LED, mechanical indicator and test button options. This power relays used in applications like road or tunnel lighting, industrial furnaces, burners, boilers, ovens, circuit breakers, control and management of electric power etc.
Faston 250 (6.3 x 0.8 mm) with top flange mount
AC & DC coils
Standard AgCdO contact material
120V ac voltage supply
