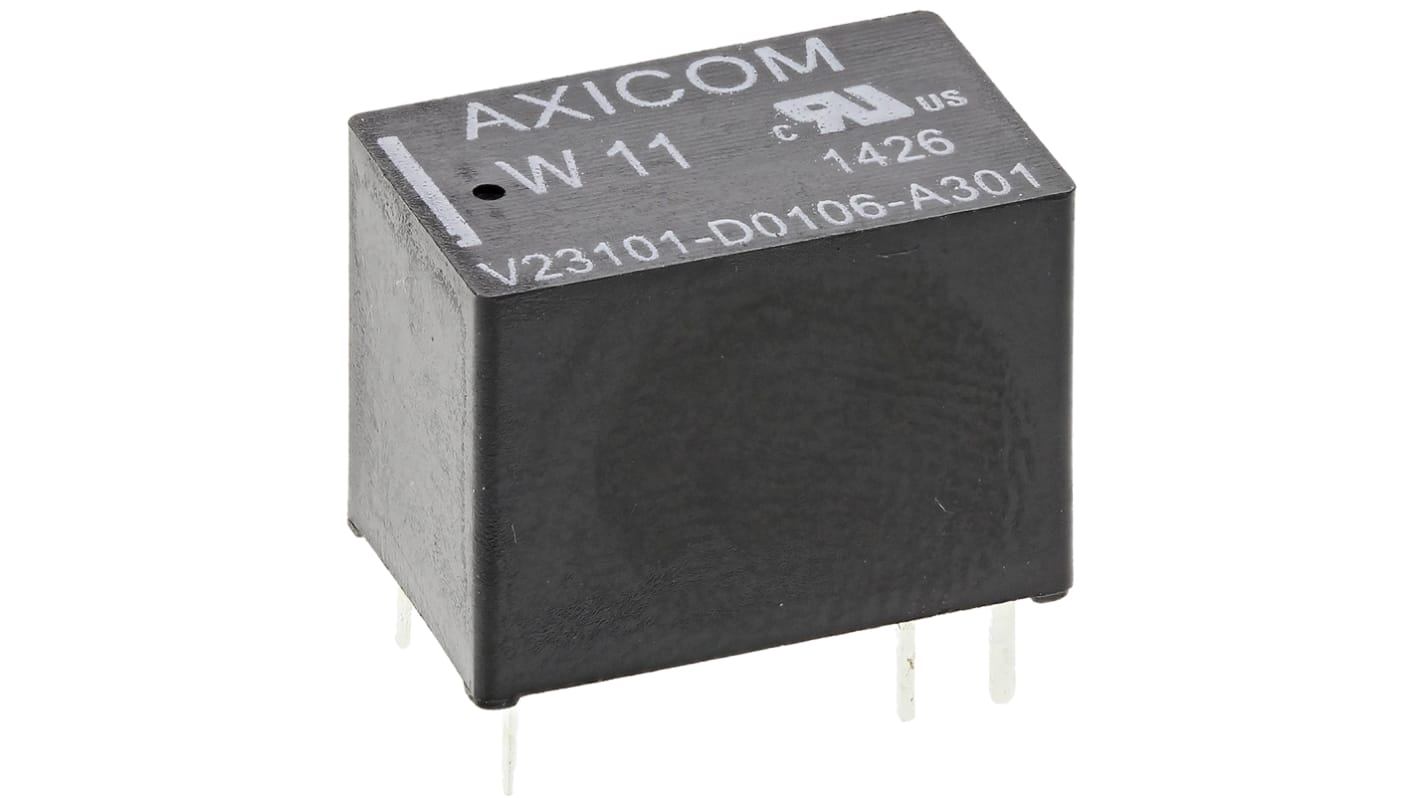

TE Connectivity PCB Mount Power Relay, 12V dc Coil, 3A Switching Current, SPDT

RS Stock No.:: 718-1890
Mfr. Part No.:: 1422037-2
Brand:: TE Connectivity

TE Connectivity PCB Mount Power Relay, 12V dc Coil, 3A Switching Current, SPDT

5 In stock - FREE next working day delivery available

4 available from Europe for delivery within 1 working day(s).

Price Each

£8.08

(exc. VAT)

£9.70

(inc. VAT)

Units	Per unit
1 - 9	£8.08
10 - 19	£7.27
20 - 24	£6.53
25 - 49	£5.93
50 +	£5.76

RS Stock No.:: 718-1890
Mfr. Part No.:: 1422037-2
Brand:: TE Connectivity

Technical Reference

Datasheet

Legislation and Compliance

Product Details

W11 Series

1A signal switching relay (max.)
Contact Material AgPd
Fully sealed
High shock and vibration resistance
Switching Voltage 24 Vdc; 125 Vac
Dimensions: 11.5mm x 10.5mm x 15.5mm
Pin length: 3.5mm
Operating Temperature Range -40 to +85°C
Stock numbers 256-1131 and 256-1147 have an asymmetrical pin assignment

Specifications

Attribute	Value
Coil Voltage	12V dc
Contact Configuration	SPDT
Mounting Type	PCB Mount
Switching Current	3A
Number of Poles	1
Latching	No
Terminal Type	Through Hole
Maximum Switching Voltage AC	125V ac
Maximum Switching Voltage DC	120V dc
Length	15.5mm
Coil Resistance	700Ω
Coil Power	206mW
Isolation Coil To Contact	1kVrms
Height	11.5mm
Maximum Operating Temperature	+85°C
Series	W11
Depth	10.5mm
Minimum Operating Temperature	-40°C
Contact Material	Silver Alloy
Maximum Switching Power AC	360VA
Maximum Switching Power DC	72 W
