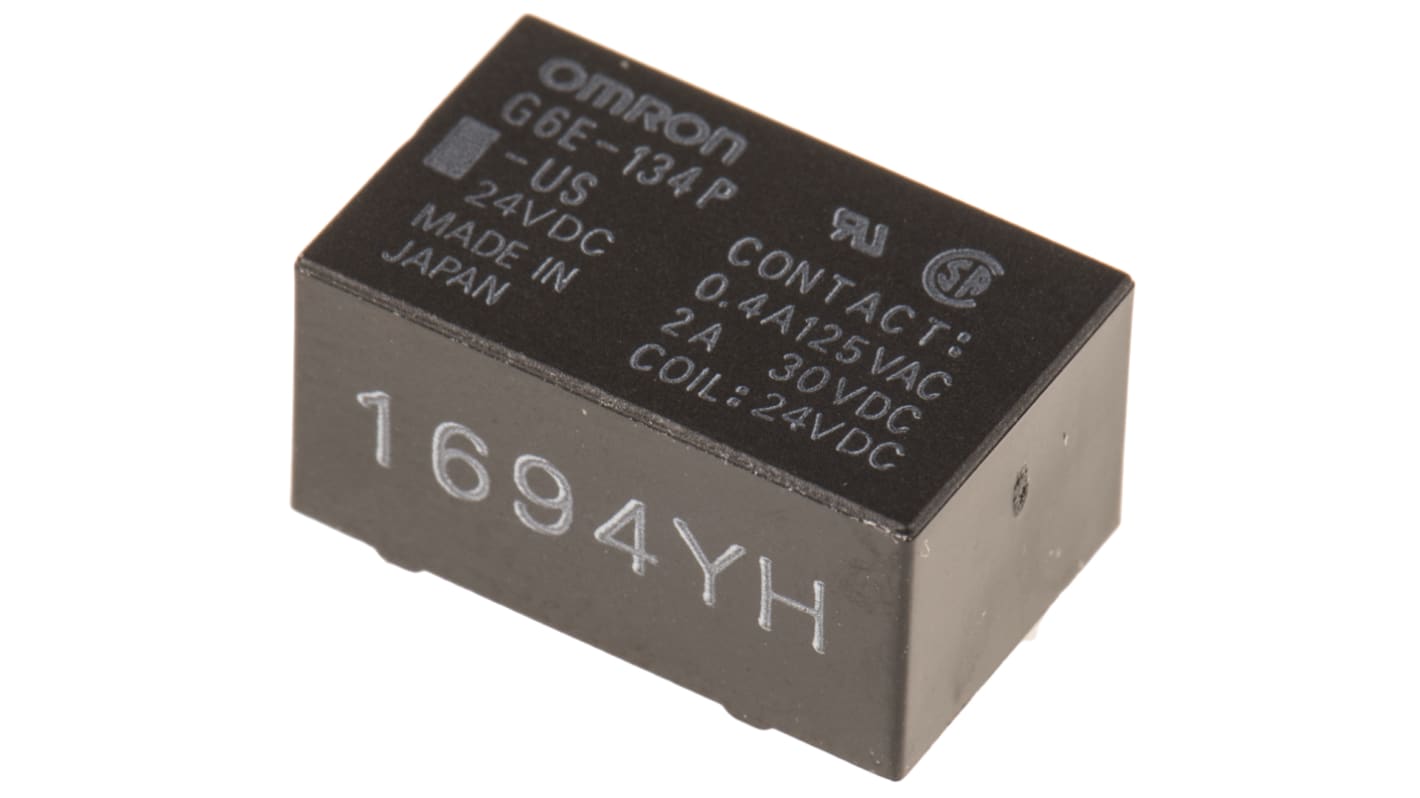

Omron PCB Mount Power Relay, 24V dc Coil, 3A Switching Current, SPDT
- RS Stock No.:
- 376-616
- Mfr. Part No.:
- G6E-134P-US DC24
- Brand:
- Omron
245 In stock - FREE next working day delivery available
99 available from Europe for delivery within 1 working day(s).
Added
Price Each
£5.34
(exc. VAT)
£6.41
(inc. VAT)
| Units | Per unit |
| 1 - 24 | £5.34 |
| 25 - 99 | £4.01 |
| 100 - 249 | £3.79 |
| 250 - 499 | £3.12 |
| 500 + | £2.96 |
- RS Stock No.:
- 376-616
- Mfr. Part No.:
- G6E-134P-US DC24
- Brand:
- Omron
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
G6E Series
SPDT subminiature signal switching relays
Fully sealed construction allows immersion cleaning of PCB
High sensitivity
Impulse withstand voltage meets FCC Part 68 requirements
Fully sealed construction allows immersion cleaning of PCB
High sensitivity
Impulse withstand voltage meets FCC Part 68 requirements
Approvals
UL, CSA
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 24V dc |
| Contact Configuration | SPDT |
| Mounting Type | PCB Mount |
| Switching Current | 3A |
| Number of Poles | 1 |
| Latching | No |
| Terminal Type | Through Hole |
| Length | 16mm |
| Coil Resistance | 2880Ω |
| Depth | 10mm |
| Contact Material | Gold Plated |
| Series | G6E |
| Height | 8mm |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -40°C |
| Maximum Switching Power DC | 60 W |
| Maximum Switching Power AC | 50VA |
| Application | Signal |
- RS Stock No.:
- 376-616
- Mfr. Part No.:
- G6E-134P-US DC24
- Brand:
- Omron
